Double Ridge Waveguide Formed E & H Plane Bend Assemblies

Space Machine will custom fabricate double ridge formed E and H plane bend assemblies covering waveguide sizes WRD180 thru WRD200. Degree of bend, leg lengths and flange types are made to customer specifications. VSWR is 1.15:1 over the full waveguide band.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine will custom fabricate double ridge formed E and H plane bend assemblies covering waveguide sizes WRD180 thru WRD200. Degree of bend, leg lengths and flange types are made to customer specifications. VSWR is 1.15:1 over the full waveguide band.

Ordering Information

Models

    • Series: E – Plane

    • Waveguide Size: WRD180 thru WRD200

    • Material: A – Aluminum

    • Plating: C – Chromate, S – Silver, G – Gold, O – Other, N – None

    • Finish: P – Paint Space Machine Gray, N – None, O – Other

    • Series: H – Plane

    • Waveguide Size: WRD180 thru WRD200

    • Material: A – Aluminum

    • Plating: C – Chromate, S – Silver, G – Gold, O – Other, N – None

    • Finish: P – Paint Space Machine Gray, N – None, O – Other

    Ordering Information

    Double Ridge Waveguide Formed E & H Plane Bend Assemblies

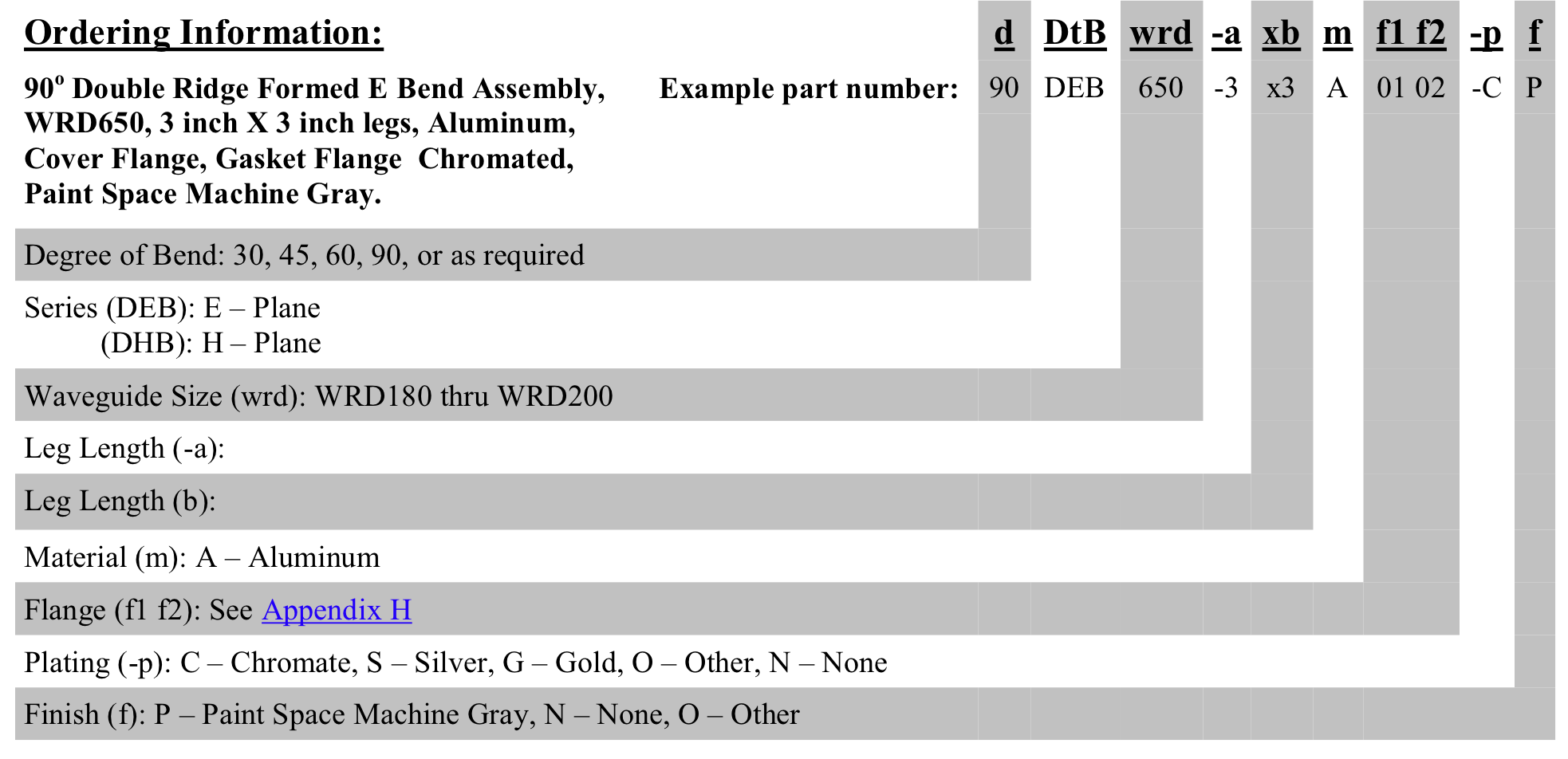

    Example part number:
    90o Double Ridge Formed E Bend Assembly, WRD650, 3 inch X 3 inch legs, Aluminum, Cover Flange, Gasket Flange Chromated, Paint Space Machine Gray.
    GET A QUOTE
    Series

    E – Plane, H – Plane

    Waveguide Size

    WRD180 thru WRD200

    Material

    A – Aluminum

    Plating

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish

    P – Paint Space Machine Gray, N – None, O – Other
