Double Ridge Waveguide Isolators
Space Machine & Engineering offers a standard product line of double ridge ferrite isolators.
Models

Highlights

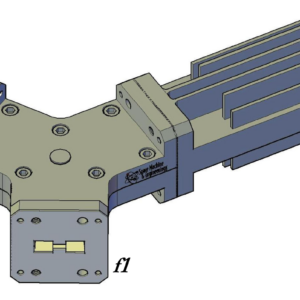

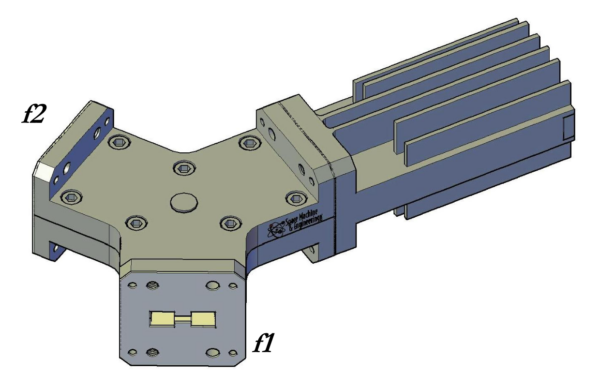

Space Machine & Engineering offers a standard product line of double ridge ferrite isolators. These isolators are permanent magnet 3 port devices that use a Y-junction structure housed in standard double ridge waveguide with one addition of a matched termination. Greater isolation, better insertion loss and VSWR are achievable with reduced bandwidths. Please specify required bandwidth and pressurization requirements when ordering. Additional sizes and configurations are available upon request.
Ordering Information

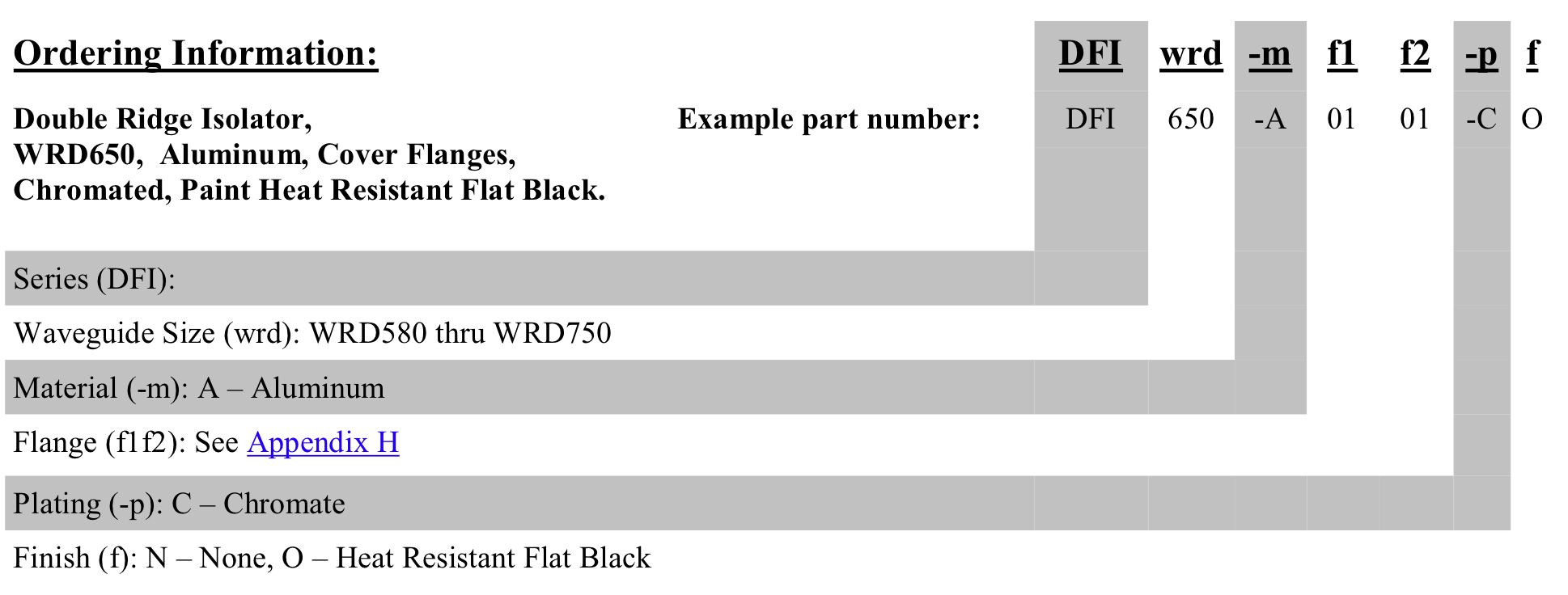

Ordering Information
Double Ridge Isolator, WRD650, Aluminum, Cover Flanges, Chromated, Paint Heat Resistant Flat Black.
Models | DFI580, DFI650, DFI750 |
---|---|
WRD | 580, 650, 750 |
Frequency (GHz) | 8.00 – 18.00 |
Isolation (dB) | 15 |
Insertion Loss (dB) Max. | 0.5 |
VSWR | 1.35:1, 1.45:1, 1.40:1 |
Maximum Average Power (W) | 250 |
Maximum Peak Power (KW) | 2 |
Material | A – Aluminum |
Plating | C – Chromate |
Finish | N – None, O – Heat Resistant Flat Black |
