Double Ridge Waveguide Power Flange Sampler
Space Machine offers a standard product line of double ridge power flange samplers covering waveguide sizes WRD180 thru WRD200. These devices are used for monitoring power when directivity is not a concern.
Models
Download Technical Specifications Highlights
Space Machine offers a standard product line of double ridge power flange samplers covering waveguide sizes WRD180 thru WRD200. These devices are used for monitoring power when directivity is not a concern. Main line VSWR is held to 1.15:1 maximum over the full waveguide band, while coupling is held to + 1dB.

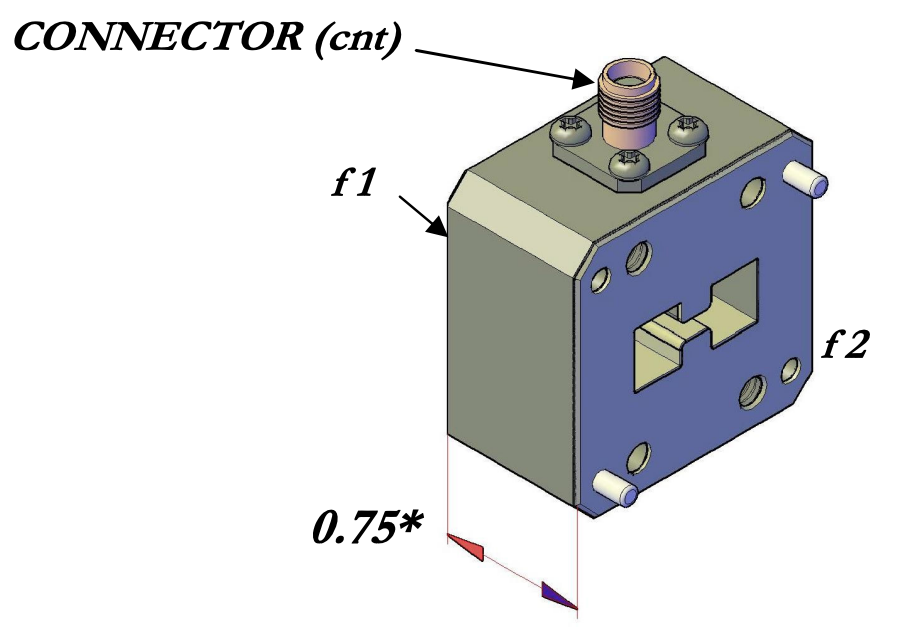

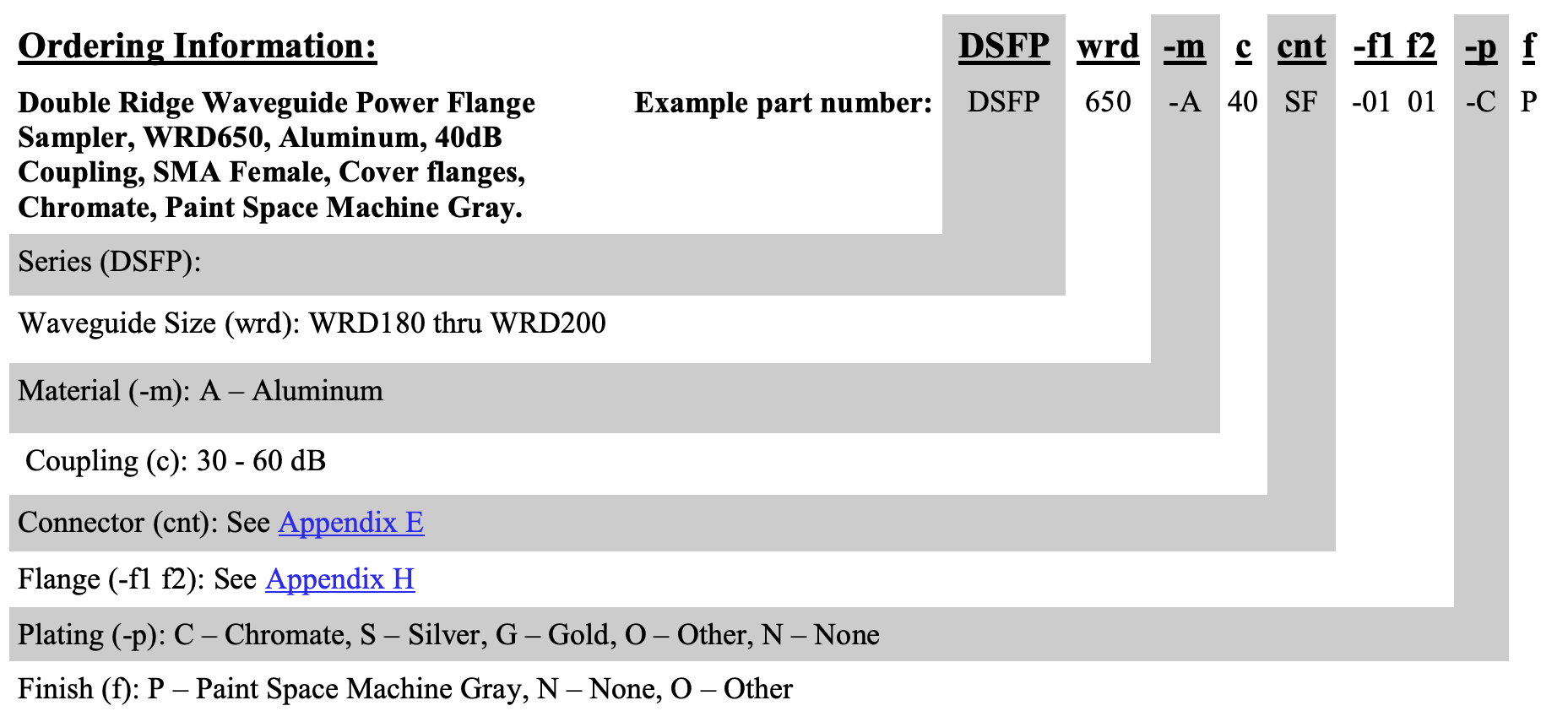

Ordering Information
Ordering Information
Double Ridge Waveguide Power Flange Sampler
Example part number:
Double Ridge Waveguide Power Flange Sampler, WRD650, Aluminum, 40dB Coupling, SMA Female, Cover flanges, Chromate, Paint Space Machine Gray.
GET A QUOTEDouble Ridge Waveguide Power Flange Sampler, WRD650, Aluminum, 40dB Coupling, SMA Female, Cover flanges, Chromate, Paint Space Machine Gray.
| Models | DSFP110, DSFP180, DSFP200, DSFP250, DSFP350, DSFP475, DSFP500, DSFP580, DSFP650, DSFP750 |
|---|---|
| WRD | 110, 180, 200, 250, 350, 475, 500, 580, 650, 750 |
| Frequency (GHz) | 11.00 – 26.50, 18.00 – 40.00, 2.00 – 4.80, 2.60 – 7.80, 3.50 – 8.20, 4.75 – 11.00, 5.00 – 18.00, 5.80 – 16.00, 6.50 – 18.00, 7.50 – 18.00 |
| Material | A – Aluminum |
| Coupling | 30 – 60 dB |
| Plating | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
| Finish | P – Paint Space Machine Gray, N – None, O – Other |
