Double Ridge Waveguide Twist Assemblies
Space Machine will custom fabricate double ridge twist sections covering the waveguide sizes WRD180 to WRD200. Degree of twist, length and flange types made to customer specifications. VSWR is less than 1.15:1 over the full waveguide band.
Models

Highlights
Space Machine will custom fabricate double ridge twist sections covering the waveguide sizes WRD180 to WRD200. Degree of twist, length and flange types made to customer specifications. VSWR is less than 1.15:1 over the full waveguide band.
SME standard twist direction is clockwise*. To order counterclockwise** twist add a dash and “CCT” after Part Number. Example: 90-DTW650-6.0A0102-CP-CCT

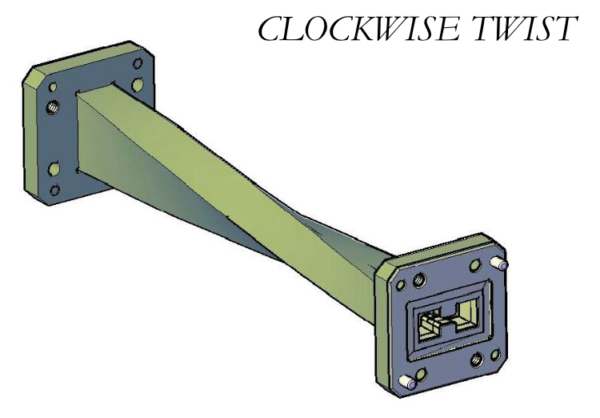

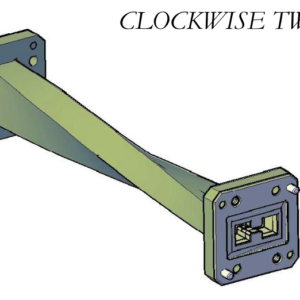

* “Clockwise Twist” – when the assembly is held vertically and viewed from above, the twist of the tubing progresses in a clockwise direction from top to bottom.

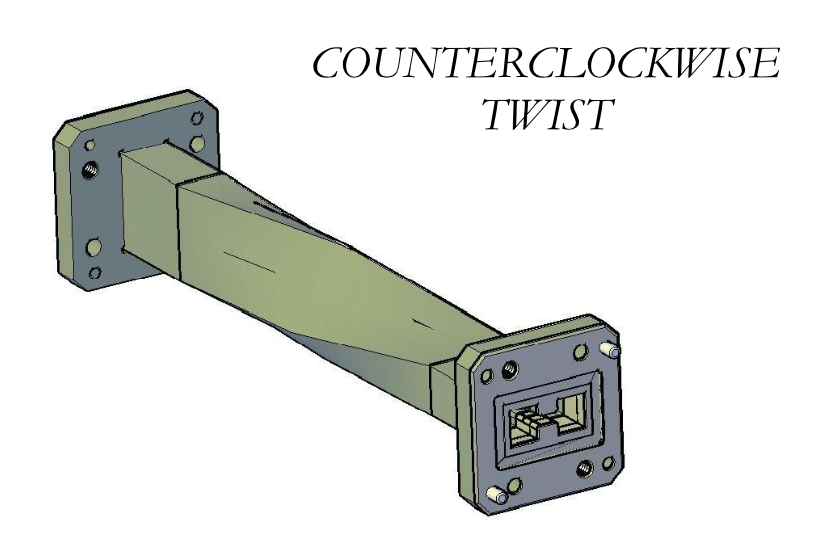

** “Counterclockwise Twist” – when the assembly is held vertically and viewed from above, the twist of the tubing progresses in a counterclockwise direction from top to bottom.
Ordering Information
Ordering Information
90o Double Ridge Waveguide Twist, WRD650, 6.0” Long, Aluminum, Cover Flange, Gasket Flange, Chromated, Paint Space Machine Gray.

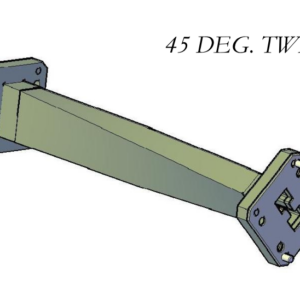

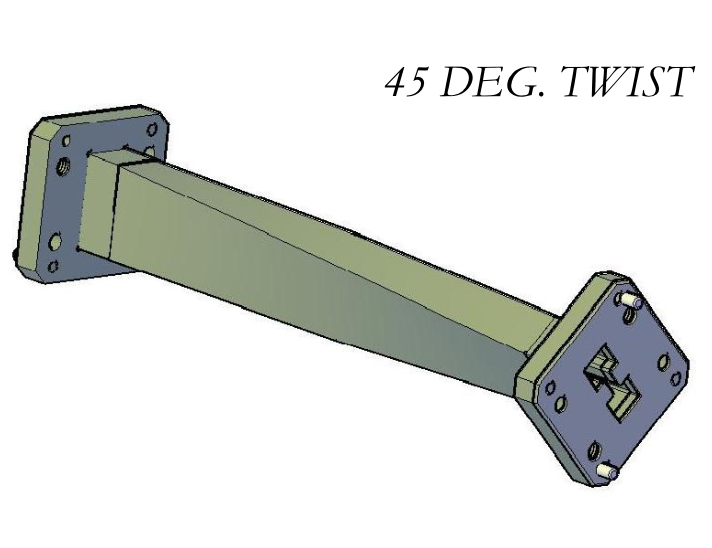

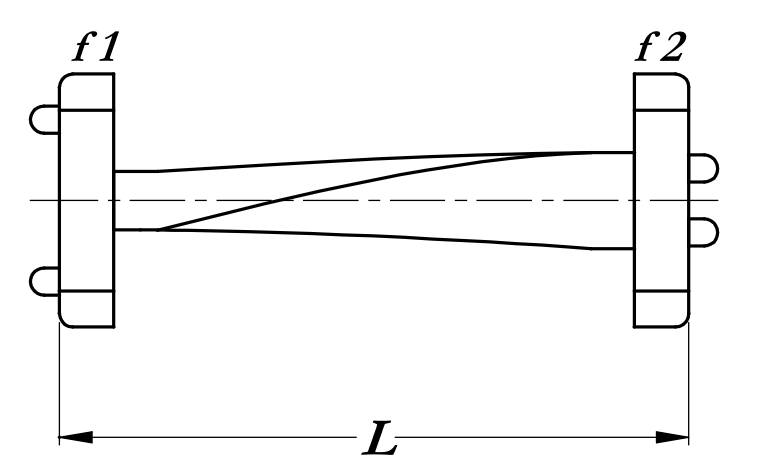

Models | 45 DEG. TWIST, CLOCKWISE TWIST, COUNTERCLOCKWISE TWIST |
---|---|
Degree of Twist | 30, 45, 60, 90, or as required |
Waveguide Size | WRD180 thru WRD200 |
Length | Any |
Material | A – Aluminum |
Plating | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
Finish | P – Paint Space Machine Gray, N – None, O – Other |
We’re Your Partner from Prototyping to Production and Beyond
Focus on Quality
Space Machine recognizes the quality of its products,the satisfaction of its customers and the health and safety of its workers as integral parts of its management function. To this end, the Company has developed a quality management system in accordance with ISO 9001:2015 and AS9100D to ensure customer satisfaction, continual improvement and compliance with all applicable requirements.
