Millimeter Seamless Flexible Waveguide Assemblies

Space Machine offers a standard product line of millimeter seamless flexible waveguide covering waveguide sizes WR10 thru WR28. The max. length of assembly is 4 inches with a tolerance +/- 0.010 per inch. The standard millimeter flange material is brass.

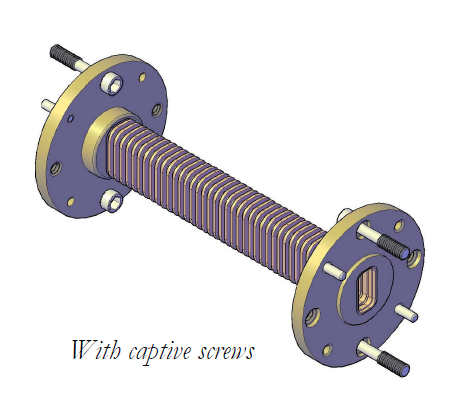

In addition, for easy installation and removal of attached pieces, Space Machine can supply millimeter waveguide flex assemblies with captive screw kit .
For Electrical Specification See appendix M.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of millimeter seamless flexible waveguide covering waveguide sizes WR10 thru WR28. The max. length of assembly is 4 inches with a tolerance +/- 0.010 per inch. The standard millimeter flange material is brass.
In addition, for easy installation and removal of attached pieces, Space Machine can supply millimeter waveguide flex assemblies with captive screw kit .
For Electrical Specification See appendix M.

Ordering Information

Millimeter Seamless Flexible Waveguide Assemblies



Ordering Information

Millimeter Seamless Flexible Waveguide Assemblies
Example part number:
Millimeter Seamless Flexible
Waveguide Assy, WR10, 3” Long,
Round Brass Flanges w/tapped holes,
Captive Screws, Neoprene Jacket.
GET A QUOTE
Series

MWF (Millimeter Waveguide Flex Assy)

Waveguide Size (wr)

WR10 thru WR28

Flange material (m)

A – Aluminum, B – Brass, S – SST

Plating (-p)

C – Chromate, S – Silver, G – Gold, O – Other, N – None

Jacket (j)

N – Neoprene, S – Silicone, V – Vinyl, P – Polysulfide

Captive Screw Kit (k)

0 -No, 1 -Yes

We’re Your Partner from Prototyping to Production and Beyond

Space Machine offers a range of solutions to help review prototypes and scale up your production waveguides and parts.Our world class manufacturing facility expertise ensures your order is delivered to your exacting specifications.

Focus on Quality

Space Machine recognizes the quality of its products,the satisfaction of its customers and the health and safety of its workers as integral parts of its management function. To this end, the Company has developed a quality management system in accordance with ISO 9001:2015 and AS9100D to ensure customer satisfaction, continual improvement and compliance with all applicable requirements.
