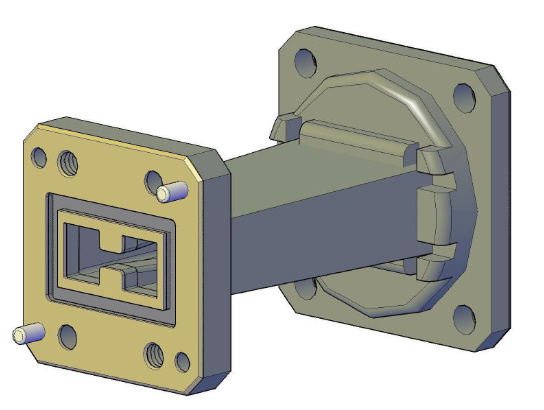

Rectangular To Double Ridge Waveguide Transitions
Space Machine offers a standard product line of rectangular to double ridge waveguide transitions.
Models

Highlights

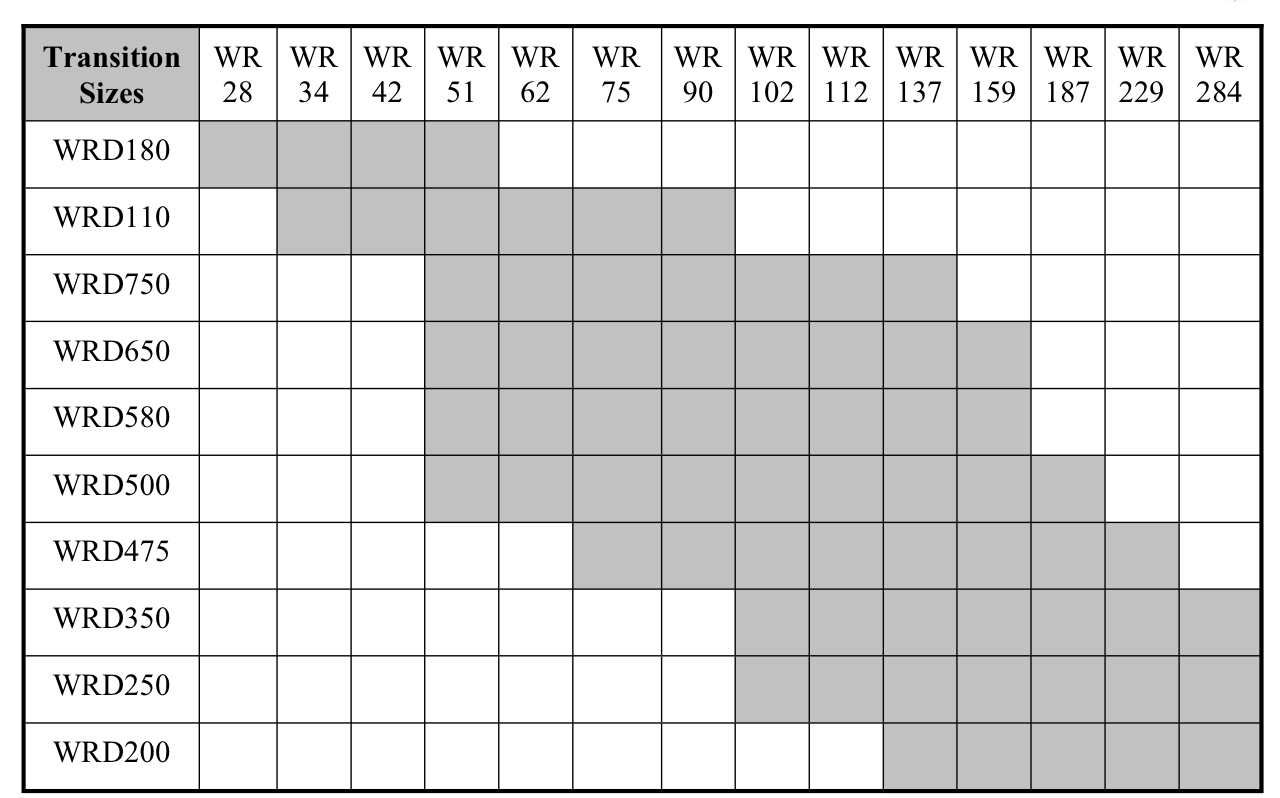

Space Machine offers a standard product line of rectangular to double ridge waveguide transitions. Please see above chart to select transition requirements. VSWR is 1.10:1 typical in the overlapping frequency bands. Additional sizes and configurations are available upon request.
.

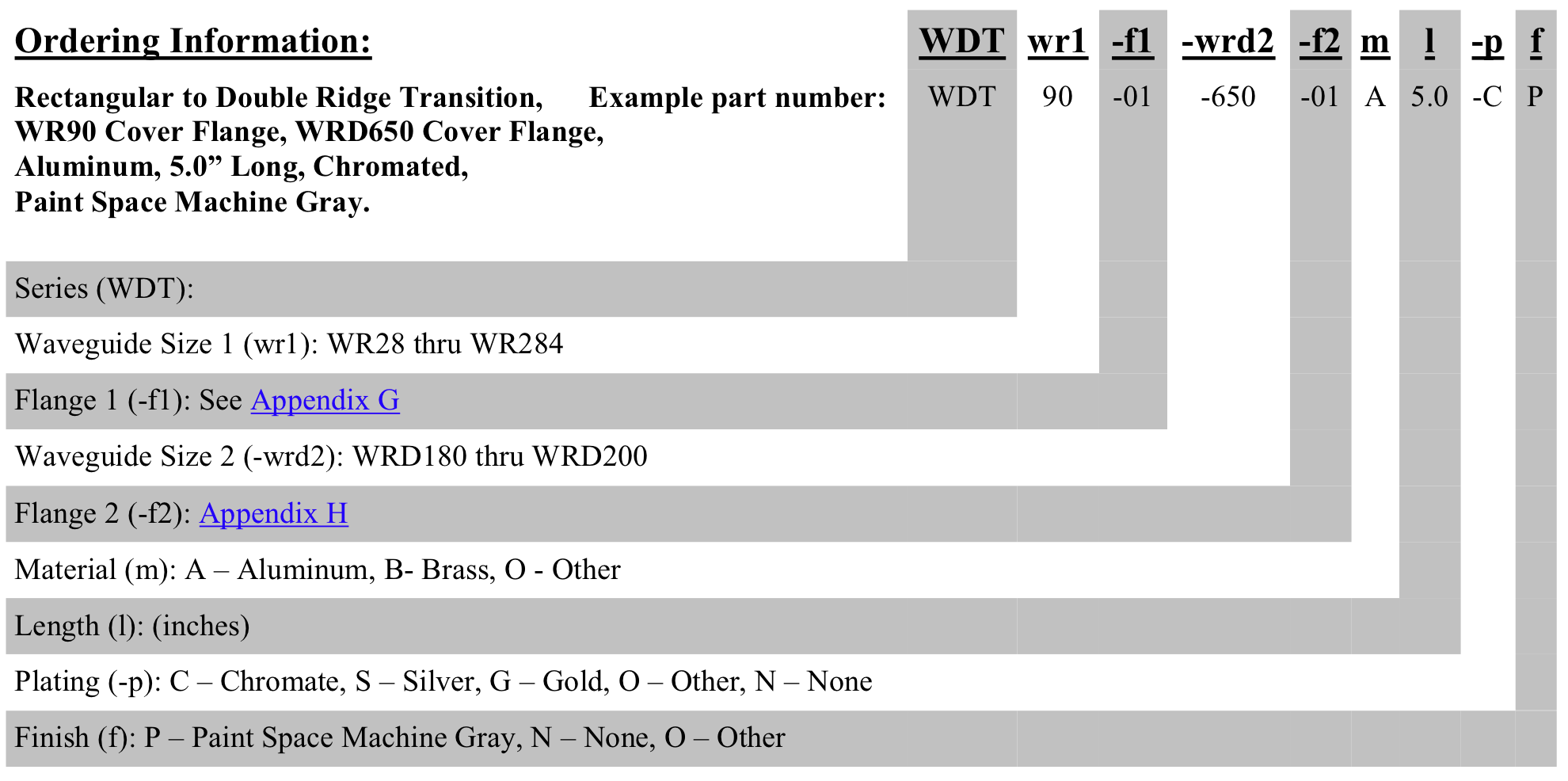

Ordering Information
Ordering Information
Rectangular to Double Ridge Transition, WR90 Cover Flange, WRD650 Cover Flange, Aluminum, 5.0” Long, Chromated, Paint Space Machine Gray.
Series | WDT |
---|---|
Waveguide Size | WR28 thru WR284 |
Material | A – Aluminum, B – Brass, O – Other |

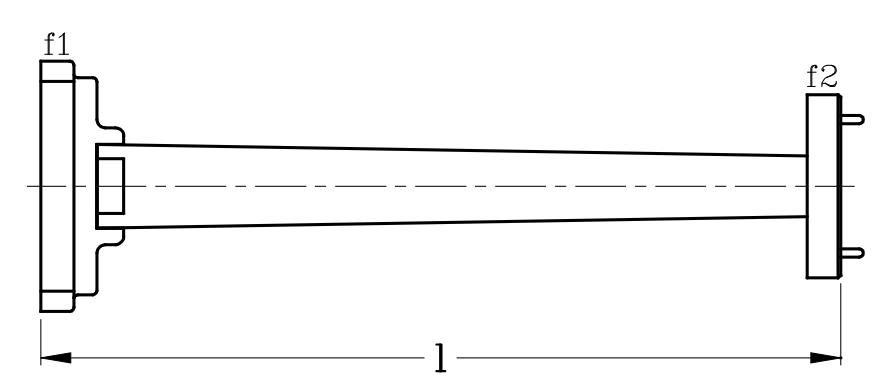

Length | Any |
Plating | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
Finish | P – Paint Space Machine Gray, N – None, O – Other |
