Rectangular To Rectangular Waveguide Transitions
Space Machine offers a standard product line of transitions covering waveguide sizes WR10 thru WR975.
VSWR is 1.05 typical in the overlapping frequency bands. Additional sizes and configurations are available upon request.
Models
Download Technical Specifications Highlights
Space Machine offers a standard product line of transitions covering waveguide sizes WR10 thru WR975.
VSWR is 1.05 typical in the overlapping frequency bands. Additional sizes and configurations are available upon request.
Ordering Information
Ordering Information
Rectangular To Rectangular Waveguide Transitions

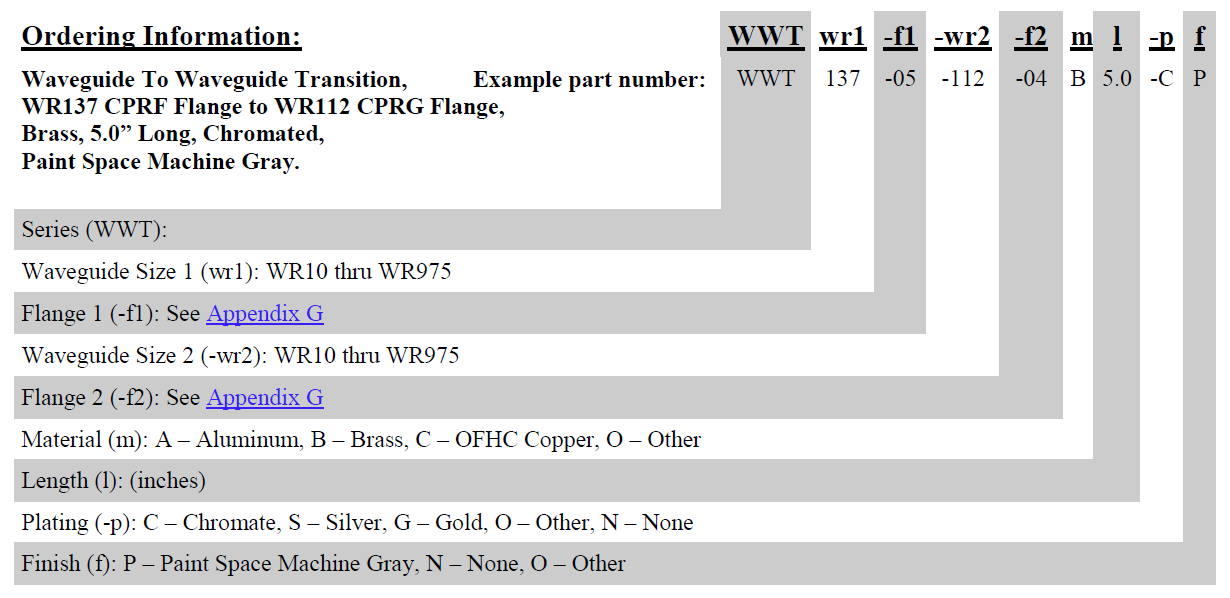

Example part number:
Waveguide To Waveguide Transition,
WR137 CPRF Flange to WR112 CPRG Flange,
Brass, 5.0” Long, Chromated,
Paint Space Machine Gray.
GET A QUOTEWaveguide To Waveguide Transition,
WR137 CPRF Flange to WR112 CPRG Flange,
Brass, 5.0” Long, Chromated,
Paint Space Machine Gray.
| Series | WWT |
|---|---|
| Waveguide Size 1 (wr1) | WR10 thru WR975 |
| Flange 1 (-f1) | See Appendix G |
| Waveguide Size 2 (-wr2) | WR10 thru WR975 |
| Flange 2 (-f2) | See Appendix G |
| Material (m) | A – Aluminum, B – Brass, C – OFHC Copper, O – Other |
| Length (l) | (inches) |
| Plating (-p) | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
| Finish (f) | P – Paint Space Machine Gray, N – None, O – Other |
