Rectangular Waveguide Cast E & H Plane Bend Assemblies

Space Machine offers a standard product line of cast E and H plane bend assemblies covering waveguide sizes WR28 thru WR284. Leg lengths and flange types are made to customer specifications. VSWR is less than 1.10:1 over the full waveguide band.
wr* – add HW, RH or TW to the part number if ordering heavy wall waveguide tubing (HW), reduced height waveguide tubing (RH) or thin wall waveguide tubing (TW). See appendix A for waveguide physical dimensions.

Example: 90CEA284HW-3X3A0102-NN

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of cast E and H plane bend assemblies covering waveguide sizes WR28 thru WR284. Leg lengths and flange types are made to customer specifications. VSWR is less than 1.10:1 over the full waveguide band.
wr* – add HW, RH or TW to the part number if ordering heavy wall waveguide tubing (HW), reduced height waveguide tubing (RH) or thin wall waveguide tubing (TW). See appendix A for waveguide physical dimensions.

Example: 90CEA284HW-3X3A0102-NN

Ordering Information

Rectangular Waveguide Cast E & H Plane Bend Assemblies

Models

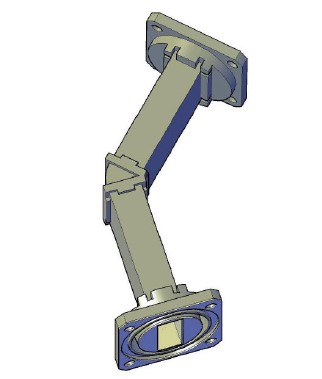

    Rectangular Waveguide Cast E Plane
    • Series: CEA (E – Plane)

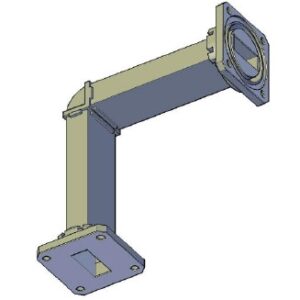

    Rectangular Waveguide Cast E Plane

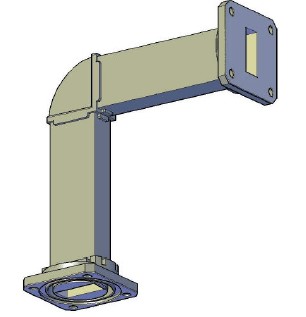

    • Series: CHA (H – Plane)

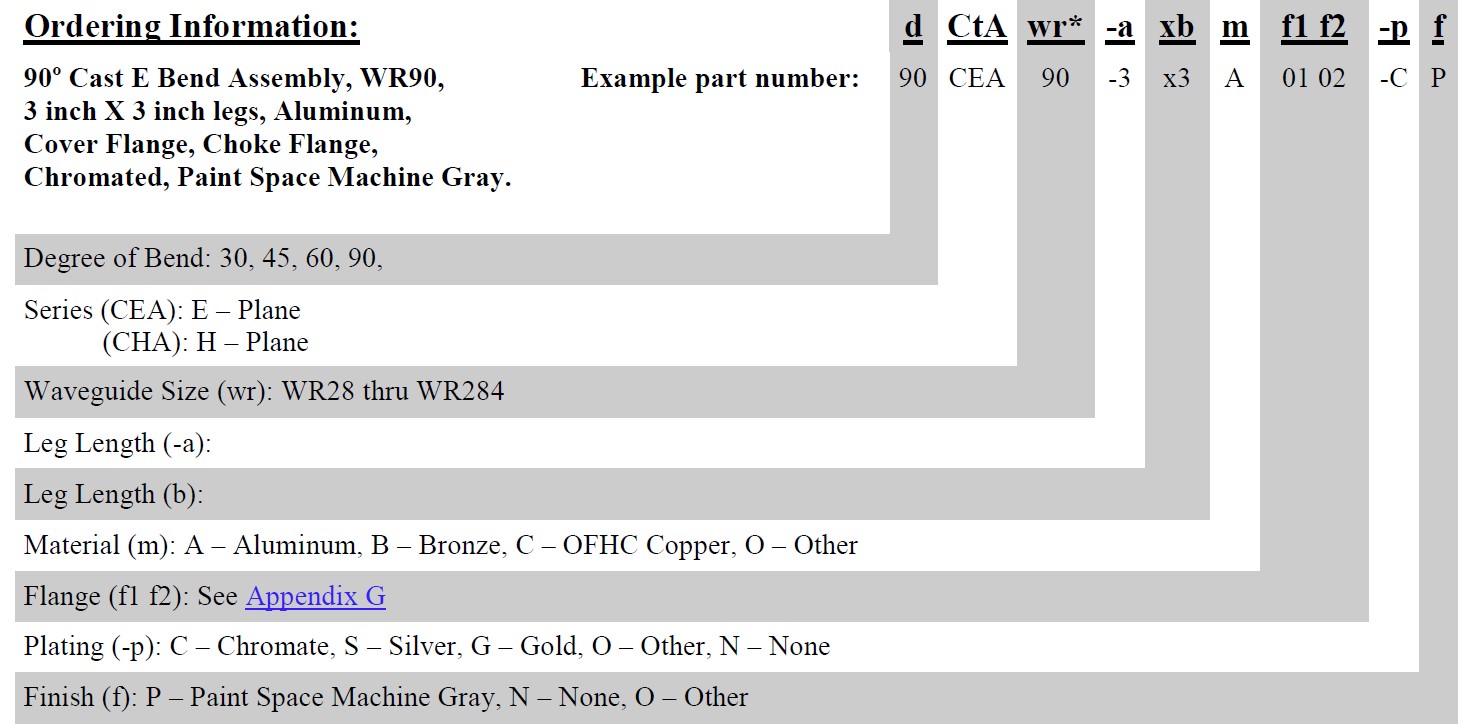

    Ordering Information

    Rectangular Waveguide Cast E & H Plane Bend Assemblies
    Example part number:
    90o Cast E Bend Assembly, WR90,
    3 inch X 3 inch legs, Aluminum,
    Cover Flange, Choke Flange,
    Chromated, Paint Space Machine Gray.
    GET A QUOTE
    Degree of Bend

    30, 45, 60, 90

    Series

    CEA (E – Plane), CHA (H – Plane)

    Waveguide Size (wr)

    WR28 thru WR284

    Material (m)

    A – Aluminum, B – Bronze, C – OFHC Copper, O – Other

    Length

    1/4, 1/8, 3/8

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None
