Rectangular Waveguide Dual Fitting Pressure Flange
Space Machine offers a standard product line of dual fitting pressure flanges covering waveguide sizes WR28 thru WR430.
VSWR is less than 1.10:1 over the full waveguide band. Dual fitting pressure flange standard thickness is 0.75”.
Custom thickness is available upon request.
Different types of pressure fittings available in standard SME pressure flange assembly, such as Schrader Valve, Flared Compression Fitting, Pipe Threads, or Barbed Fitting. Pressure inlet can be substituted with drain unit or pressure drain unit.
Additional sizes and configurations are available upon request.
Models

Highlights
Space Machine offers a standard product line of dual fitting pressure flanges covering waveguide sizes WR28 thru WR430.
VSWR is less than 1.10:1 over the full waveguide band. Dual fitting pressure flange standard thickness is 0.75”.
Custom thickness is available upon request.
Different types of pressure fittings available in standard SME pressure flange assembly, such as Schrader Valve, Flared Compression Fitting, Pipe Threads, or Barbed Fitting. Pressure inlet can be substituted with drain unit or pressure drain unit.
Additional sizes and configurations are available upon request.

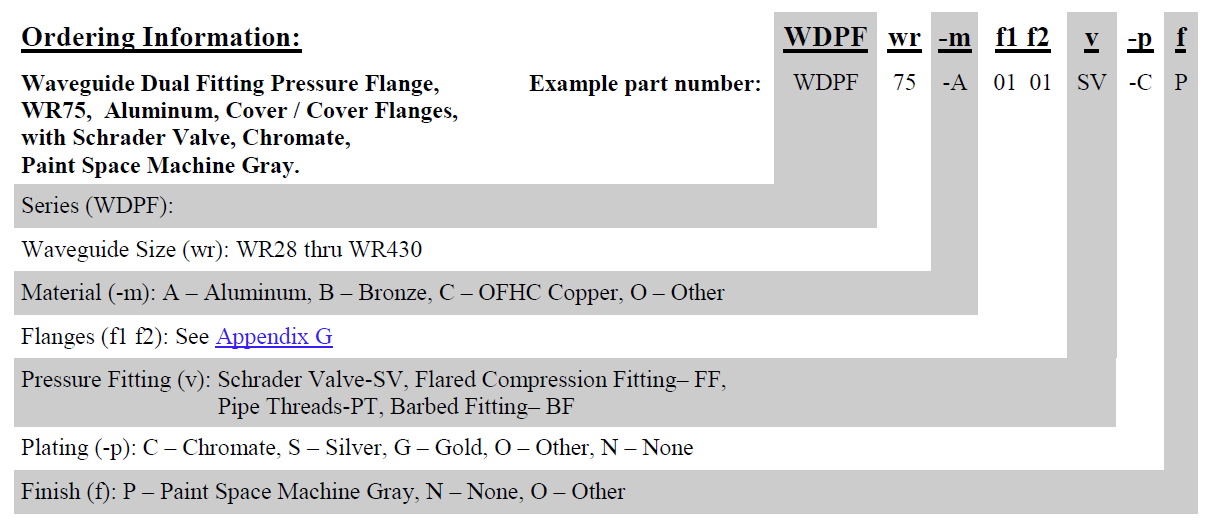

Ordering Information
Models
Ordering Information
Waveguide Dual Fitting Pressure Flange,
WR75, Aluminum, Cover / Cover Flanges,
with Schrader Valve, Chromate,
Paint Space Machine Gray.
Series | WDPF28-, WDPF34-, WDPF42-, WDPF51-, WDPF62-, WDPF75-, WDPF90-, WDPF112-, WDPF137-, WDPF159-, WDPF187-, WDPF229-, WDPF284-, WDPF340-, WDPF430- |
---|---|
Waveguide Size (wr) | WR28 thru WR430 |
Material (m) | A – Aluminum, B – Bronze, C – OFHC Copper, O – Other |
Flange (f1 f2) | See Appendix G |
Pressure Fitting (v) | Schrader Valve-SV, Flared Compression Fitting-FF, Pipe Threads-PT, Barbed Fitting-BF |
Plating (-p) | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
Finish (f) | P – Paint Space Machine Gray, N – None, O – Other |
