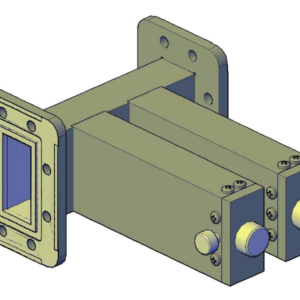

Rectangular Waveguide Dual Stub Tuner

Space Machine & Engineering offers a standard product line of dual stub tuners, covering waveguide sizes WR28 thru WR284.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine & Engineering offers a standard product line of dual stub tuners, covering waveguide sizes WR28 thru WR284. Rectangular waveguide dual stub tuners allow precision matching within RF systems and subsystems to ensure optimum power transmission from source to load. VSWR is 1.15:1. Additional sizes and configurations are available upon
request.

Ordering Information

Models

  • Models: WST112

  • WR: 112

  • Frequency (GHz): 7.05 - 10.00

  • Stub Travel: 3.0

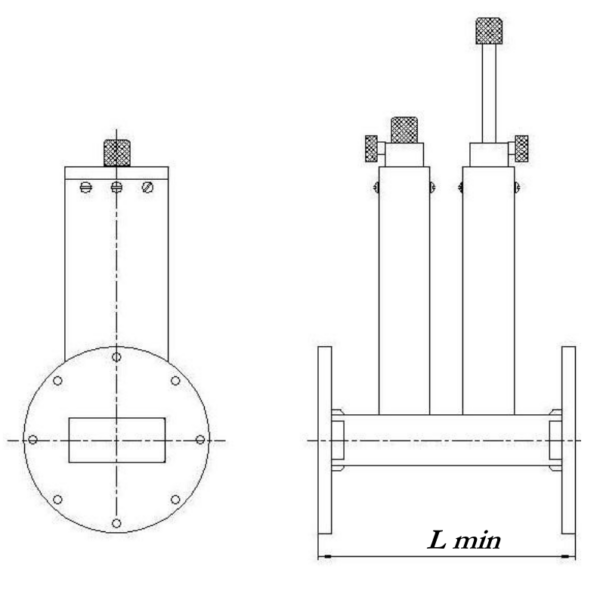

  • L min: 4.0

  • Models: WST137

  • WR: 137

  • Frequency (GHz): 5.85 - 8.20

  • Stub Travel: 3.0

  • L min: 4.5

  • Models: WST159

  • WR: 159

  • Frequency (GHz): 4.90 - 7.05

  • Stub Travel: 3.5

  • L min: 4.5

  • Models: WST187

  • WR: 187

  • Frequency (GHz): 3.95 - 5.85

  • Stub Travel: 4.0

  • L min: 5.0

  • Models: WST28

  • WR: 28

  • Frequency (GHz): 26.50 - 40.00

  • Stub Travel: 1.5

  • L min: 1.5

  • Models: WST284

  • WR: 284

  • Frequency (GHz): 2.60 - 3.95

  • Stub Travel: 5.0

  • L min: 8.0

  • Models: WST34

  • WR: 34

  • Frequency (GHz): 22.00 - 33.00

  • Stub Travel: 1.5

  • L min: 2.0

  • Models: WST42

  • WR: 42

  • Frequency (GHz): 18.00 - 26.50

  • Stub Travel: 1.75

  • L min: 2.0

  • Models: WST51

  • WR: 51

  • Frequency (GHz): 15.00 - 22.00

  • Stub Travel: 2.0

  • L min: 2.5

  • Models: WST62

  • WR: 62

  • Frequency (GHz): 12.40 - 18.00

  • Stub Travel: 2.0

  • L min: 3.0

  • Models: WST75

  • WR: 75

  • Frequency (GHz): 10.00 - 15.00

  • Stub Travel: 2.0

  • L min: 3.0

  • Models: WST90

  • WR: 90

  • Frequency (GHz): 8.20 - 12.40

  • Stub Travel: 3.0

  • L min: 4.0

Ordering Information

Rectangular Waveguide Dual Stub Tuner
Example part number:
Rectangular Waveguide Dual Stub Tuner, WR187, Aluminum, Cover Flanges Chromated, Paint SME Grey.
GET A QUOTE
Models

WST112, WST137, WST159, WST187, WST28, WST284, WST34, WST42, WST51, WST62, WST75, WST90

WR

284, 187, 159, 137, 112, 90, 75, 62, 51, 42, 34, 28

Frequency (GHz)

10.00 – 15.00, 12.40 – 18.00, 15.00 – 22.00, 18.00 – 26.50, 2.60 – 3.95, 22.00 – 33.00, 26.50 – 40.00, 3.95 – 5.85, 4.90 – 7.05, 5.85 – 8.20, 7.05 – 10.00, 8.20 – 12.40

Stub Travel

5.0, 4.0, 3.5, 3.0, 2.0, 1.75, 1.5

L min

8.0, 5.0, 4.5, 4.0, 4.0, 3.0, 2.5, 2.0, 1.5
