Double Ridge Waveguide Loop Couplers

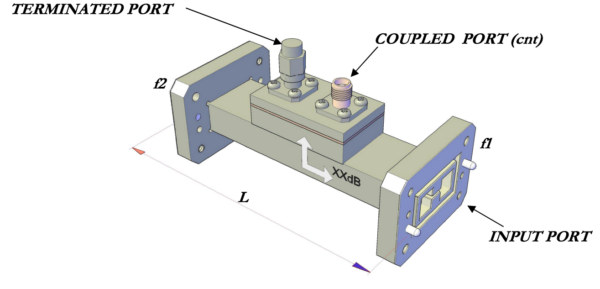

Space Machine custom fabricates a standard product line of double ridge loop couplers covering waveguide sizes WRD750 thru WRD200. These loop couplers are ideally suited for 25% bandwidths with coupling variation of ± 0.5dB.
Models
Download Technical Specifications Highlights
Space Machine custom fabricates a standard product line of double ridge loop couplers covering waveguide sizes WRD750 thru WRD200. These loop couplers are ideally suited for 25% bandwidths with coupling variation of ± 0.5dB. Over the full waveguide band, coupling variation is + 2.5dB. Directivity is 15dB minimum. Main arm VSWR is 1.15:1 and secondary arm VSWR is 1.3:1.

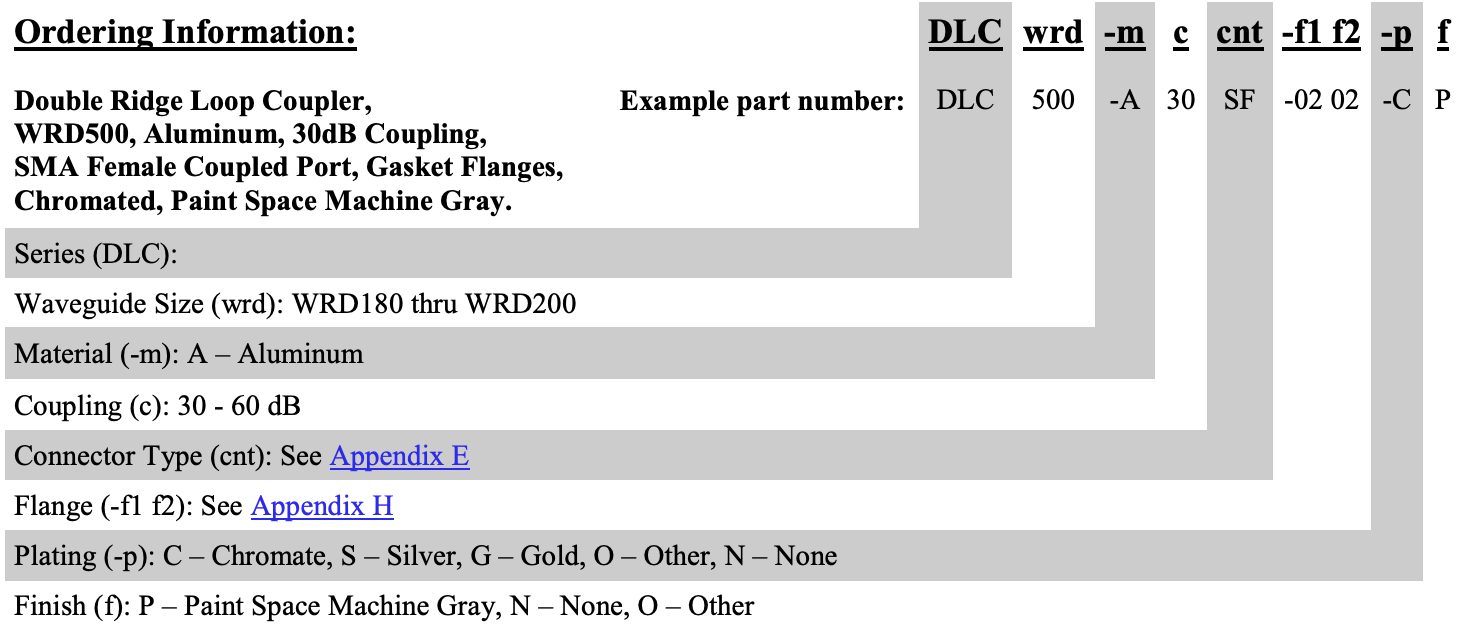

Ordering Information
Ordering Information
Double Ridge Waveguide Loop Couplers
Example part number:
Double Ridge Loop Coupler,
WRD500, Aluminum, 30dB Coupling,
SMA Female Coupled Port, Gasket Flanges,
Chromated, Paint Space Machine Gray.
GET A QUOTEDouble Ridge Loop Coupler,
WRD500, Aluminum, 30dB Coupling,
SMA Female Coupled Port, Gasket Flanges,
Chromated, Paint Space Machine Gray.
| Models | DLC200, DLC250, DLC350, DLC475, DLC500, DLC580, DLC650, DLC750 |
|---|---|
| WRD | 200, 250, 350, 475, 500, 580, 650, 750 |
| Frequency (GHz) | 2.00 – 4.80, 2.60 – 7.80, 3.50 – 8.20, 4.75 – 11.00, 5.00 – 18.00, 5.80 – 16.00, 6.50 – 18.00, 7.50 – 18.00 |
| Length | 3.00, 3.50, 4.00, 5.00 |
| Material | A – Aluminum |
| Coupling | 30 – 60 dB |
| Plating | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
| Finish | P – Paint Space Machine Gray, N – None, O – Other |
