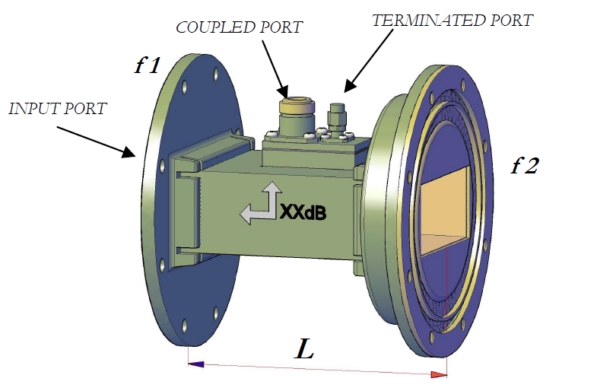

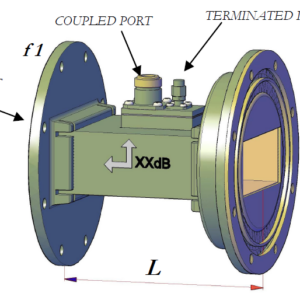

Rectangular Waveguide Loop Couplers

Space Machine custom fabricates a standard product line of loop couplers covering waveguide sizes WR62 thru WR430.
These loop couplers are ideally suited for 25% bandwidths with coupling variation of ± 0.5dB. Over the full waveguide band, coupling variation is + 2.5dB. Directivity is 18dB minimum.
Main arm VSWR is 1.08:1 and secondary arm VSWR is 1.3:1.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine custom fabricates a standard product line of loop couplers covering waveguide sizes WR62 thru WR430.
These loop couplers are ideally suited for 25% bandwidths with coupling variation of ± 0.5dB. Over the full waveguide band, coupling variation is + 2.5dB. Directivity is 18dB minimum.
Main arm VSWR is 1.08:1 and secondary arm VSWR is 1.3:1.

Ordering Information

Rectangular Waveguide Loop Couplers



Models

    Rectangular Waveguide Loop Couplers
    • Model: WLC62-

    • WR: 62

    • Frequency (GHz): 12.40 - 18.00

    • Length: 4.00

    Rectangular Waveguide Loop Couplers
    • Model: WLC75-

    • WR: 75

    • Frequency (GHz): 10.00 - 15.00

    • Length: 4.00

    Rectangular Waveguide Loop Couplers
    • Model: WLC90-

    • WR: 90

    • Frequency (GHz): 8.20 - 12.40

    • Length: 4.00

    Rectangular Waveguide Loop Couplers
    • Model: WLC102-

    • WR: 102

    • Frequency (GHz): 7.00 - 11.00

    • Length: 4.00

    Rectangular Waveguide Loop Couplers
    • Model: WLC112-

    • WR: 112

    • Frequency (GHz): 7.05 - 10.00

    • Length: 4.00

    Rectangular Waveguide Loop Couplers
    • Model: WLC137-

    • WR: 137

    • Frequency (GHz): 5.85 - 8.20

    • Length: 4.50

    Rectangular Waveguide Loop Couplers
    • Model: WLC159-

    • WR: 159

    • Frequency (GHz): 4.90 - 7.05

    • Length: 4.50

    Rectangular Waveguide Loop Couplers
    • Model: WLC187-

    • WR: 187

    • Frequency (GHz): 3.95 - 5.85

    • Length: 5.00

    Rectangular Waveguide Loop Couplers
    • Model: WLC229-

    • WR: 229

    • Frequency (GHz): 3.30 - 4.90

    • Length: 5.00

    Rectangular Waveguide Loop Couplers
    • Model: WLC284-

    • WR: 284

    • Frequency (GHz): 2.60 - 3.95

    • Length: 5.00

    Rectangular Waveguide Loop Couplers
    • Model: WLC340-

    • WR: 340

    • Frequency (GHz): 2.20 - 3.30

    • Length: 5.00

    Rectangular Waveguide Loop Couplers
    • Model: WLC430-

    • WR: 430

    • Frequency (GHz): 1.70 - 2.60

    • Length: 5.00

    Ordering Information

    Rectangular Waveguide Loop Couplers
    Example part number:
    Loop Coupler, WR284, Bronze,
    50dB Coupling, N Female Coupled Port,
    Cover / Choke Flanges, Chromated,
    Paint Space Machine Gray.
    GET A QUOTE
    Series

    WLC

    Model

    WLC62-, WLC75-, WLC90-, WLC102-, WLC112-, WLC137-, WLC159-, WLC187-, WLC229-, WLC284-, WLC340-, WLC430-

    Waveguide Size (wr)

    WR62 thru WR430

    Material (-m)

    A – Aluminum, B – Bronze, O – Other

    Coupling (c)

    30 – 60 dB

    Connector Type (cnt)

    See Appendix E

    Flange (-f1 f2)

    See Appendix G

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish (f)

    P – Paint Space Machine Gray, N – None, O – Other
