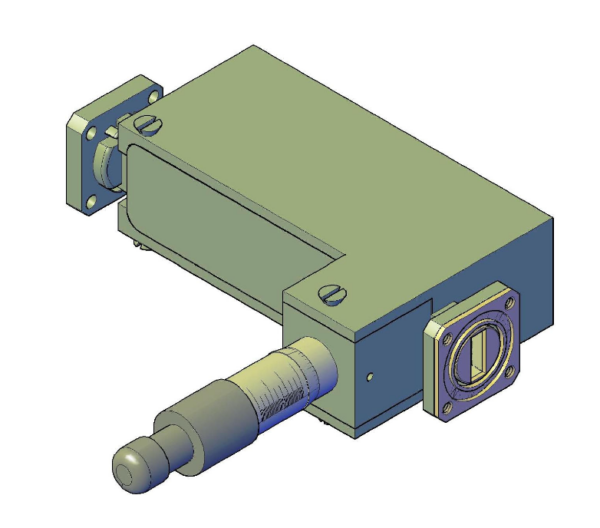

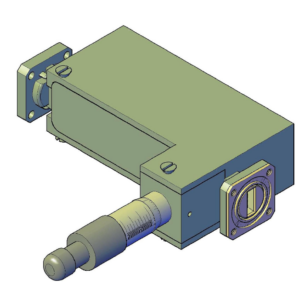

Rectangular Waveguide Low Power Variable Attenuator
Space Machine offers a standard product line of low power variable attenuators covering waveguide sizes WR28 thru WR284.
Models
Download Technical Specifications Highlights
Space Machine offers a standard product line of low power variable attenuators covering waveguide sizes WR28 thru WR284. Attenuation will range from 0 – 30dB while flatness is held to + 1.5dB. VSWR is held to 1.10:1 maximum over the full waveguide band. Additional sizes and configurations are available upon request. Maximum power rating for all sizes is 1 watt average.
Ordering Information
Ordering Information
Rectangular Waveguide Low Power Variable Attenuator
Example part number:
Waveguide Low Power Variable Attenuator, WR112, Bronze, Cover / Choke Flanges, Chromated, Paint Space Machine Gray.
GET A QUOTEWaveguide Low Power Variable Attenuator, WR112, Bronze, Cover / Choke Flanges, Chromated, Paint Space Machine Gray.
| Models | WAVL102, WAVL112, WAVL137, WAVL159, WAVL187, WAVL229, WAVL28, WAVL284, WAVL34, WAVL42, WAVL51, WAVL62, WAVL75, WAVL90 |
|---|---|
| WR | 28, 34, 42, 51, 62, 75, 90, 102, 112, 137, 159, 187, 229, 284 |
| Frequency (GHz) | 10.00 – 15.00, 12.40 – 18.00, 15.00 – 22.00, 18.00 – 26.50, 2.60 – 3.95, 22.00 – 33.00, 26.50 – 40.00, 3.30 – 4.90, 3.95 – 5.85, 4.90 – 7.05, 5.85 – 8.20, 7.00 – 11.00, 7.05 – 10.00, 8.20 – 12.40 |

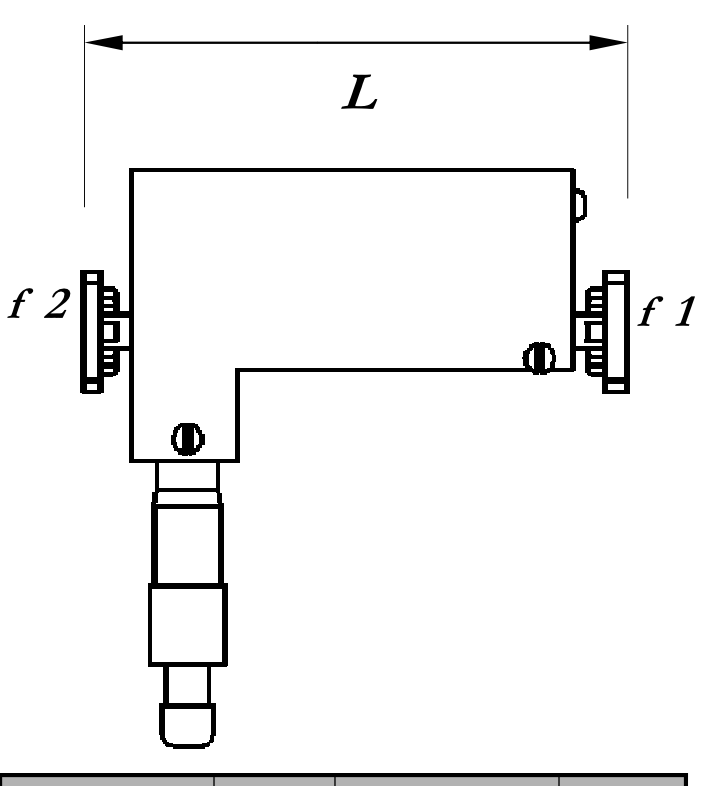

| Length | 10.00, 12.00, 4.00, 5.00, 6.00, 7.00, 8.00, 9.00 |
