Rectangular Waveguide Power Flange Sampler

Space Machine offers a standard product line of power flange samplers covering waveguide sizes WR28 thru WR430.
These devices are used for monitoring power when directivity is not a concern.
Main line VSWR is held to 1.10:1 maximum over the full waveguide band. While coupling variation is held to + 1dB.
Additional sizes and configurations are available upon request.

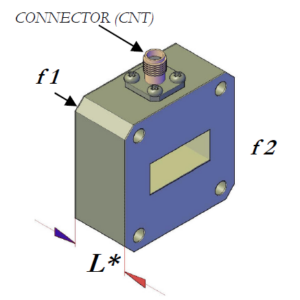

*When a Type N connector is required, thickness will be 1.00”.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of power flange samplers covering waveguide sizes WR28 thru WR430.
These devices are used for monitoring power when directivity is not a concern.
Main line VSWR is held to 1.10:1 maximum over the full waveguide band. While coupling variation is held to + 1dB.
Additional sizes and configurations are available upon request.
*When a Type N connector is required, thickness will be 1.00”.

Ordering Information

Rectangular Waveguide Power Flange Sampler



Models

    • Model: WSFP28-

    • WR: 28

    • Frequency (GHz): 26.50 - 40.00

    • Thick. (L) Type N: N/A

    • Thick. (L) Others: 0.75

    • Model: WSFP34-

    • WR: 34

    • Frequency (GHz): 22.00 - 33.00

    • Thick. (L) Type N: N/A

    • Thick. (L) Others: 0.75

    • Model: WSFP42-

    • WR: 42

    • Frequency (GHz): 18.00 - 26.50

    • Thick. (L) Type N: N/A

    • Thick. (L) Others: 0.75

    • Model: WSFP51-

    • WR: 51

    • Frequency (GHz): 15.00 - 22.00

    • Thick. (L) Type N: N/A

    • Thick. (L) Others: 0.75

    • Model: WSFP62-

    • WR: 62

    • Frequency (GHz): 12.40 - 18.00

    • Thick. (L) Type N: 1.00

    • Thick. (L) Others: 0.75

    • Model: WSFP75-

    • WR: 75

    • Frequency (GHz): 10.00 - 15.00

    • Thick. (L) Type N: 1.00

    • Thick. (L) Others: 0.75

    • Model: WSFP90-

    • WR: 90

    • Frequency (GHz): 8.20 - 12.40

    • Thick. (L) Type N: 1.00

    • Thick. (L) Others: 0.75

    • Model: WSFP102-

    • WR: 102

    • Frequency (GHz): 7.00 - 11.00

    • Thick. (L) Type N: 1.00

    • Thick. (L) Others: 0.75

    • Model: WSFP112-

    • WR: 112

    • Frequency (GHz): 7.05 - 10.00

    • Thick. (L) Type N: 1.00

    • Thick. (L) Others: 0.75

    • Model: WSFP137-

    • WR: 137

    • Frequency (GHz): 5.85 - 8.20

    • Thick. (L) Type N: 1.00

    • Thick. (L) Others: 0.75

    • Model: WSFP159-

    • WR: 159

    • Frequency (GHz): 4.90 - 7.05

    • Thick. (L) Type N: 1.00

    • Thick. (L) Others: 0.75

    • Model: WSFP187-

    • WR: 187

    • Frequency (GHz): 3.95 - 5.85

    • Thick. (L) Type N: 1.00

    • Thick. (L) Others: 0.75

    • Model: WSFP229-

    • WR: 229

    • Frequency (GHz): 3.30 - 4.90

    • Thick. (L) Type N: 1.00

    • Thick. (L) Others: 0.75

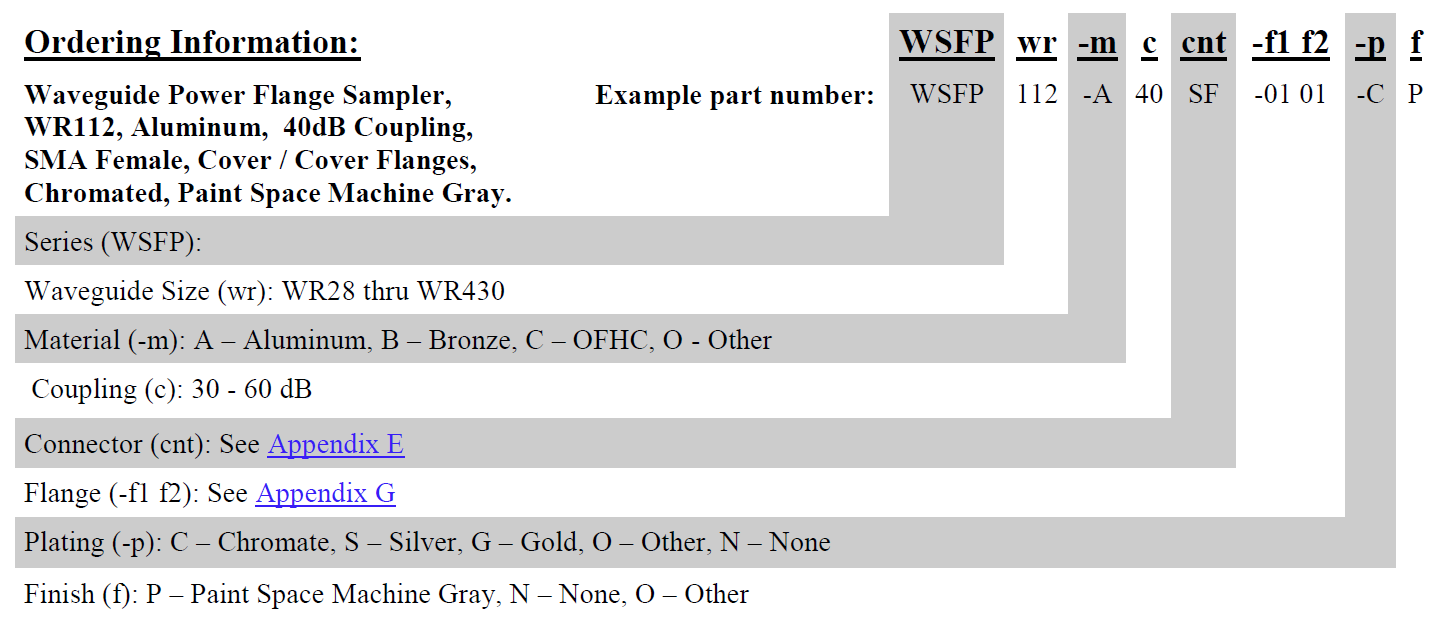

    Ordering Information

    Rectangular Waveguide Power Flange Sampler
    Example part number:
    Waveguide Power Flange Sampler,
    WR112, Aluminum, 40dB Coupling,
    SMA Female, Cover / Cover Flanges,
    Chromated, Paint Space Machine Gray.
    GET A QUOTE
    Series

    WSFP

    Model

    WSFP28-, WSFP34-, WSFP42-, WSFP51-, WSFP62-, WSFP75-, WSFP90-, WSFP102-, WSFP112-, WSFP137-, WSFP159-, WSFP187-, WSFP229-

    Waveguide Size (wr)

    WR28 thru WR430

    Material (-m)

    A – Aluminum, B – Bronze, C – OFHC, O – Other

    Coupling (c)

    30 – 60 dB

    Connector (cnt)

    See Appendix E

    Flange (-f1 f2)

    See Appendix G

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish (f)

    P – Paint Space Machine Gray, N – None, O – Other
