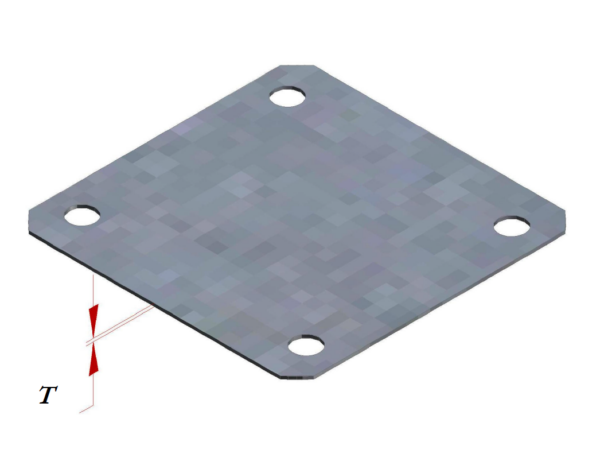

Rectangular Waveguide Pressure Gasket

Space Machine offers a standard product line of pressure gaskets covering waveguide sizes WR28 thru WR430.
VSWR is 1.05:1 maximum, while insertion loss is 0.05dB maximum over the full waveguide bandwidth.
Pressure handling capability is proportional with thickness. Additional sizes and configurations are available upon request.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of pressure gaskets covering waveguide sizes WR28 thru WR430.
VSWR is 1.05:1 maximum, while insertion loss is 0.05dB maximum over the full waveguide bandwidth.
Pressure handling capability is proportional with thickness. Additional sizes and configurations are available upon request.

Ordering Information

Rectangular Waveguide Pressure Gasket



Ordering Information

Rectangular Waveguide Pressure Gasket

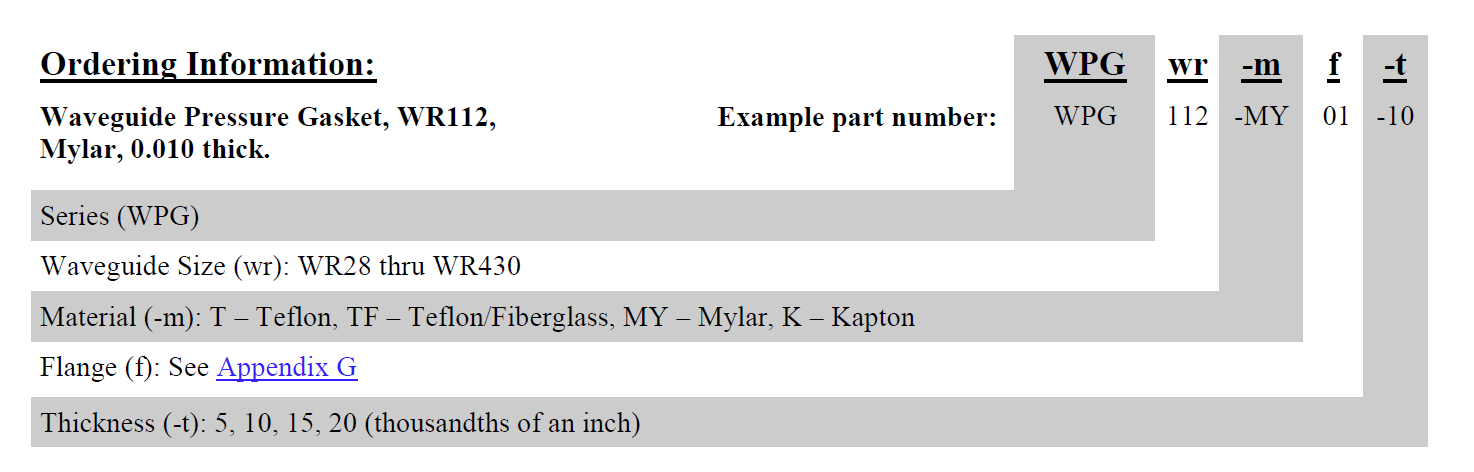

Example part number:
Waveguide Pressure Gasket, WR112,
Mylar, 0.010 thick.
GET A QUOTE
Series

WPG

Waveguide Size (wr)

WR28 thru WR430

Material (-m)

T – Teflon, TF – Teflon/Fiberglass, MY – Mylar, K – Kapton

Flange (f)

See Appendix G

Thickness (-t)

5, 10, 15, 20
