Rectangular Waveguide Seamless Flexible Assemblies

Space Machine offers a standard product line of seamless flexible rectangular waveguide covering waveguide sizes WR28 thru WR650.
Additional sizes and configurations are available upon request. See appendix M for specification.
Length will be supplied with a tolerance +/- 1/8” per foot of length for flexible waveguide.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of seamless flexible rectangular waveguide covering waveguide sizes WR28 thru WR650.
Additional sizes and configurations are available upon request. See appendix M for specification.
Length will be supplied with a tolerance +/- 1/8” per foot of length for flexible waveguide.

Ordering Information

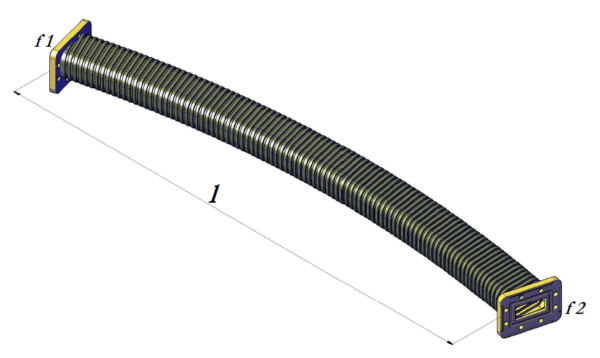

Rectangular Waveguide Seamless Flexible Assemblies



Models

    Rectangular Waveguide Seamless Flexible Assemblies
    • Series: WFL (Flexible)

    Rectangular Waveguide Seamless Flexible Assemblies
    • Series: WFT (Flexible – Twistable)

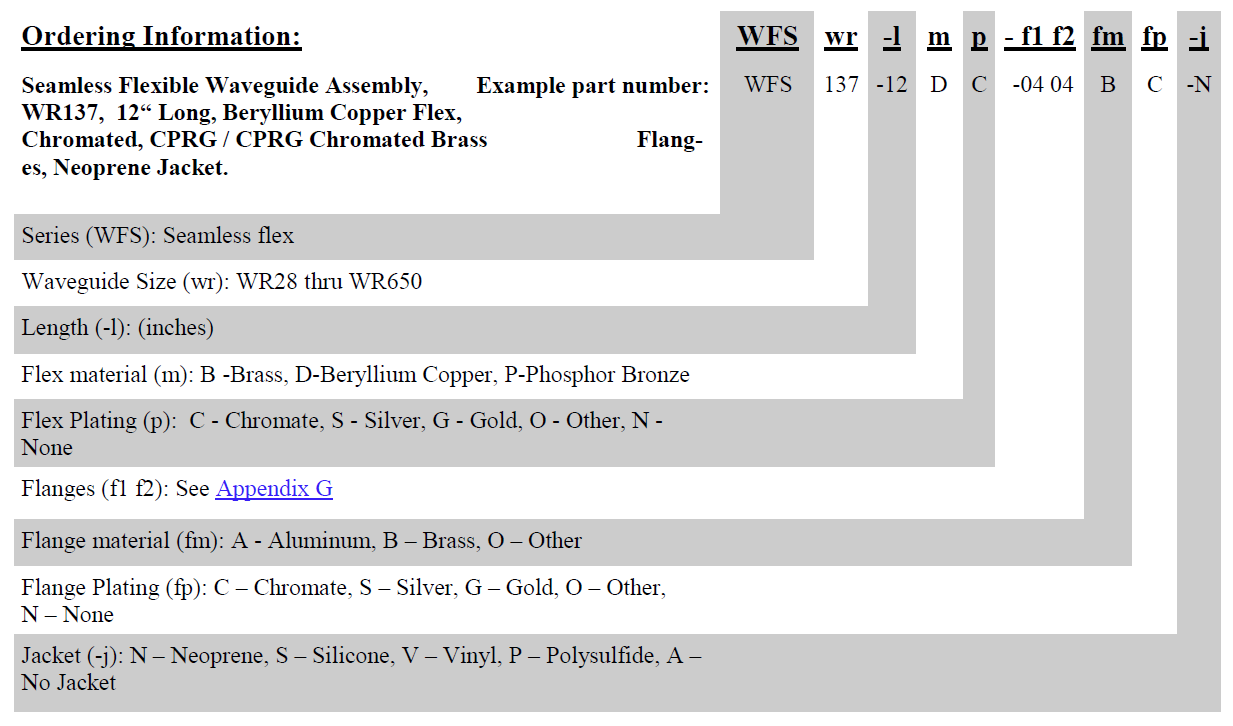

    Ordering Information

    Rectangular Waveguide Seamless Flexible Assemblies
    Example part number:
    Seamless Flexible Waveguide Assembly,
    WR137, 12“ Long, Beryllium Copper Flex,
    Chromated, CPRG / CPRG Chromated Brass Flanges,
    Neoprene Jacket.
    GET A QUOTE
    Series

    WFL (Flexible), WFT (Flexible – Twistable)

    Waveguide Size (wr)

    WR22 thru WR650

    Flange material (m)

    A – Aluminum, B – Brass, O – Other

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Jacket (j)

    N – Neoprene, S – Silicone, V – Vinyl, P – Polysulfide
