Rectangular Waveguide Straight Assemblies

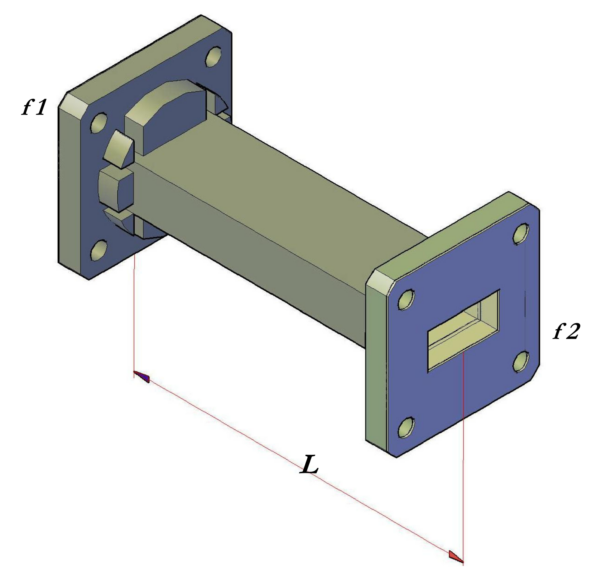

Space Machine will custom fabricate flanged straight sections covering the waveguide sizes WR10 to WR650. Length and flange types made to customer specifications. VSWR is less than 1.05:1 over the full waveguide band.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine will custom fabricate flanged straight sections covering the waveguide sizes WR10 to WR650. Length and flange types made to customer specifications. VSWR is less than 1.05:1 over the full waveguide band.
wr* – add HW, RH or TW to the part number if ordering heavy wall waveguide tubing (HW), reduced height waveguide tubing (RH) or thin wall waveguide tubing (TW). See appendix A for waveguide physical dimensions.
Example: WSS90TW-12.0A0101-NN

Ordering Information

Ordering Information

Rectangular Waveguide Straight Assemblies
Example part number:
Waveguide Straight Section, WR112, 12.0” Long, Bronze, Cover / Choke Flanges, Chromated, Paint Space Machine Gray.
GET A QUOTE
Series

WSS

Waveguide Size

WR22 thru WR650

Length

Any

Material

A – Aluminum, B – Bronze, C – OFHC Copper, O – Other

Plating

C – Chromate, S – Silver, G – Gold, O – Other, N – None

Finish

P – Paint Space Machine Gray, N – None, O – Other
