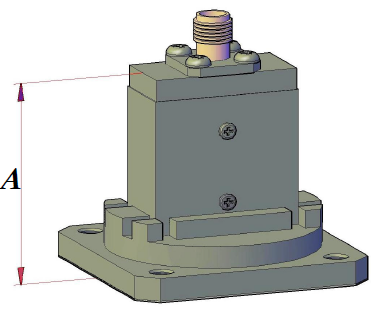

Rectangular Waveguide To Coax End Launch Adapters

Space Machine offers a standard product line of end launch waveguide to coax adapters covering waveguide sizes WR28 thru WR430. VSWR is 1.35:1 max. Improved VSWR performance can be obtained over a reduced bandwidth.
Space Machine’s End-Launch Adapters use a transition whose center conductor is structurally tied to the waveguide, for excellent mechanical and thermal stability. Additional sizes and configurations available upon request.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of end launch waveguide to coax adapters covering waveguide sizes WR28 thru WR430. VSWR is 1.35:1 max. Improved VSWR performance can be obtained over a reduced bandwidth.
Space Machine’s End-Launch Adapters use a transition whose center conductor is structurally tied to the waveguide, for excellent mechanical and thermal stability. Additional sizes and configurations available upon request.

Ordering Information

Rectangular Waveguide To Coax End Launch Adapters



Models

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA430EL

    • WR: 430

    • Frequency (GHz): 1.70 - 2.60

    • A: 12.00

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA340EL

    • WR: 340

    • Frequency (GHz): 2.20 - 3.30

    • A: 11.00

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA284EL

    • WR: 284

    • Frequency (GHz): 2.60 - 3.95

    • A: 9.00

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA229EL

    • WR: 229

    • Frequency (GHz): 3.30 - 4.90

    • A: 7.25

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA187EL

    • WR: 187

    • Frequency (GHz): 3.95 - 5.85

    • A: 6.00

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA159EL

    • WR: 159

    • Frequency (GHz): 4.90 - 7.05

    • A: 5.00

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA137EL

    • WR: 137

    • Frequency (GHz): 5.85 - 8.20

    • A: 4.50

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA112EL

    • WR: 112

    • Frequency (GHz): 7.05 - 10.00

    • A: 4.00

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA102EL

    • WR: 102

    • Frequency (GHz): 7.00 - 11.00

    • A: 3.50

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA90EL

    • WR: 90

    • Frequency (GHz): 8.20 - 12.40

    • A: 3.00

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA75EL

    • WR: 75

    • Frequency (GHz): 10.00 – 15.00

    • A: 2.50

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA62EL

    • WR: 62

    • Frequency (GHz): 12.40 - 18.00

    • A: 2.25

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA51EL

    • WR: 51

    • Frequency (GHz): 15.00 - 22.00

    • A: 2.00

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA42EL

    • WR: 42

    • Frequency (GHz): 18.00 - 26.50

    • A: 1.90

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA34EL

    • WR: 34

    • Frequency (GHz): 22.00 - 33.00

    • A: 1.75

    Rectangular Waveguide To Coax End Launch Adapters
    • Series: WCA28EL

    • WR: 28

    • Frequency (GHz): 26.50 - 40.00

    • A: 1.50

    Ordering Information

    Rectangular Waveguide To Coax End Launch Adapters
    Example part number:
    Waveguide To Coax End Launch Adapter,
    WR112, Bronze, Cover Flange,
    SMA Female Connector, Chromate,
    Paint Space Machine Gray.
    GET A QUOTE
    Series

    WCA28EL, WCA34EL, WCA42EL, WCA51EL, WCA62EL, WCA75EL, WCA90EL, WCA102EL, WCA112EL, WCA137EL, WCA159EL, WCA187EL, WCA229EL, WCA284EL, WCA340EL, WCA430EL

    Waveguide Size (wr)

    WR28 thru WR430

    End Launch

    EL

    Material (m)

    A – Aluminum, B – Bronze, C – OFHC Copper, O – Other

    Flange (f)

    See Appendix G

    Connector (cnt)

    See Appendix E

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish (f)

    P – Paint Space Machine Gray, N – None, O – Other
