Maximizing Signal Strength: The Ultimate Guide to Horn Antennas

Horn antennas continue to garner attention in the field of communication and radar systems, thanks to their remarkable high gain, low loss, and directional radiation patterns. Designed to efficiently transmit and receive electromagnetic waves, these antennas have proven to be indispensable across various industries. In this blog post, we will guide you through the fascinating world of horn antennas, uncovering their unique features, types, and practical applications.

Key Takeaways Exploring the Basics of Horn Antennas The Anatomy of a Horn Antenna Types of Horn Antennas: From Pyramidal to Conical Practical Applications of Horn Antennas Optimizing Horn Antenna Performance Comparing Horn Antennas to Other Antennas Sectors Horn Antennas are Often Utilized Summary

Key Takeaways
Exploring the Basics of Horn Antennas
How Horn Antennas Work
The Anatomy of a Horn Antenna
Types of Horn Antennas: From Pyramidal to Conical
Practical Applications of Horn Antennas
Optimizing Horn Antenna Performance
Comparing Horn Antennas to Other Antennas
Sectors Horn Antennas are Often Utilized

Key Takeaways

  • Horn antennas are directional, high-gain and low-loss antennas used since the 1890s.
  • They have various characteristics such as flare angle, aperture efficiency and frequency capabilities which influence performance.
  • Horn antennas are utilized in a variety of applications due to their increased directivity for reliable transmission/reception of signals across radar systems, satellite dishes & measurement systems.

Exploring the Basics of Horn Antennas

The development of horn antennas traces back to the 1890s, during a period of significant advancements in antenna technology and the foundation of antenna theory. However, it wasn’t until the 1930s that horn antennas resurfaced and further developments were made. Horn antennas consist of a flaring metal waveguide, designed to direct radio waves in a beam, with the pyramidal horn antenna being one common type.

Illustration of radio waves being emitted and received by a horn antenna.

The high gain of horn antennas, such as the gain horn antenna, can be attributed to factors such as the increasing frequency of operation and input power. Moreover, their low loss characteristic is achieved through the implementation of low-loss transmission lines, the design of the horn shape, and the utilization of low-loss dielectric materials. Achieving a high gain horn antenna requires carefully controlling the internal shape and finish to minimize signal loss.

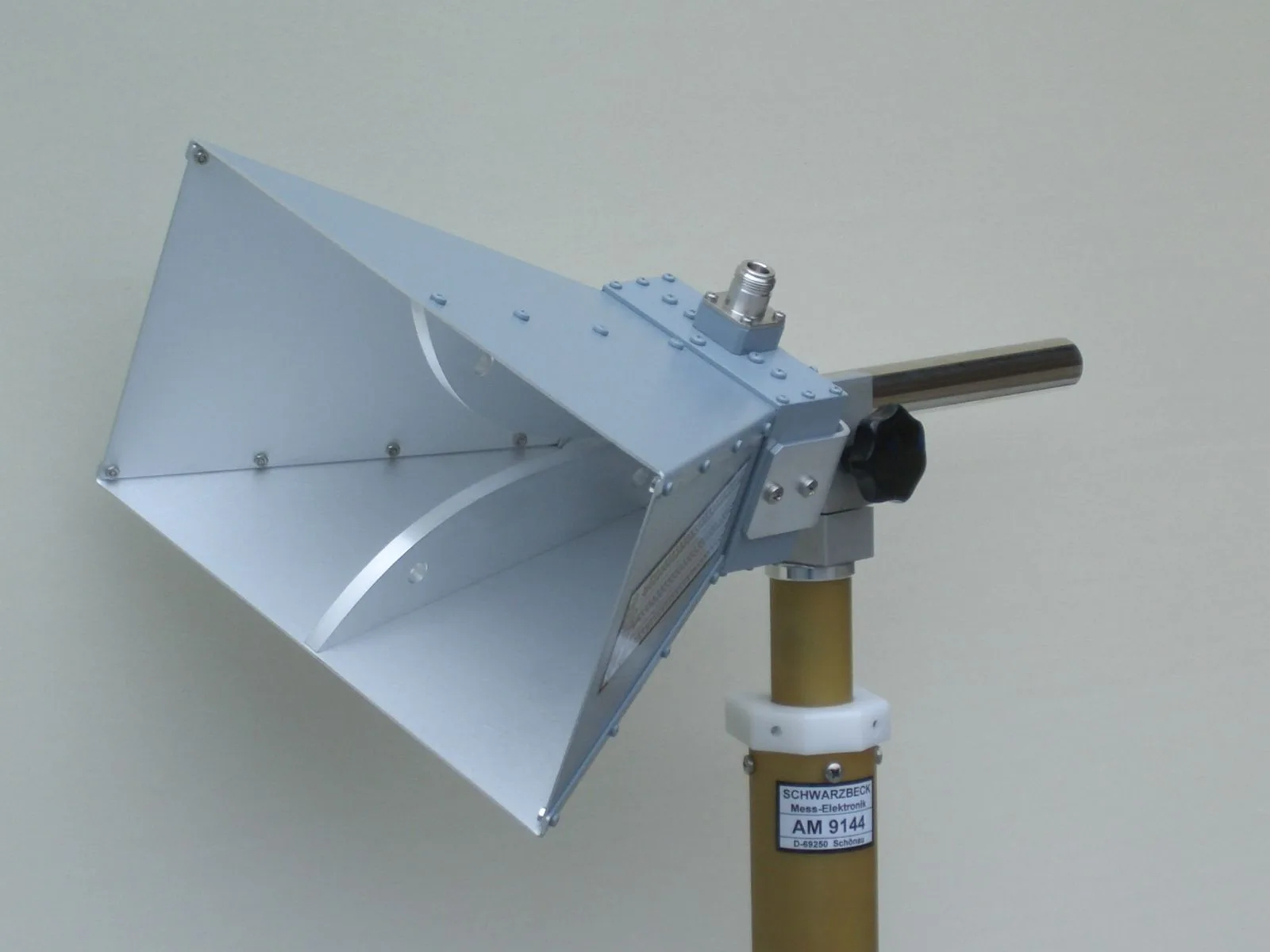

Pyramidal microwave horn antenna image example from Wikipedia.

These components work together to minimize signal loss and optimize the antenna’s efficiency, making horn antennas a viable alternative to dish antennas in some applications.

How Horn Antennas Work

Horn antennas work by guiding radio waves through an expanding waveguide shaped like a horn to control the direction of radiation. As the radio waves travel through the horn, they reflect off the internal sides which helps convert the waves into a focused beam.

The flared tapered shape enables the horn to match impedances from the feed waveguide to free space, allowing the waves to be efficiently radiated with minimal reflection. This flared shape essentially creates an acoustic transformer that enlarges the opening, resulting in higher directivity and gain. The larger the horn’s aperture, the more focused the resulting beam.

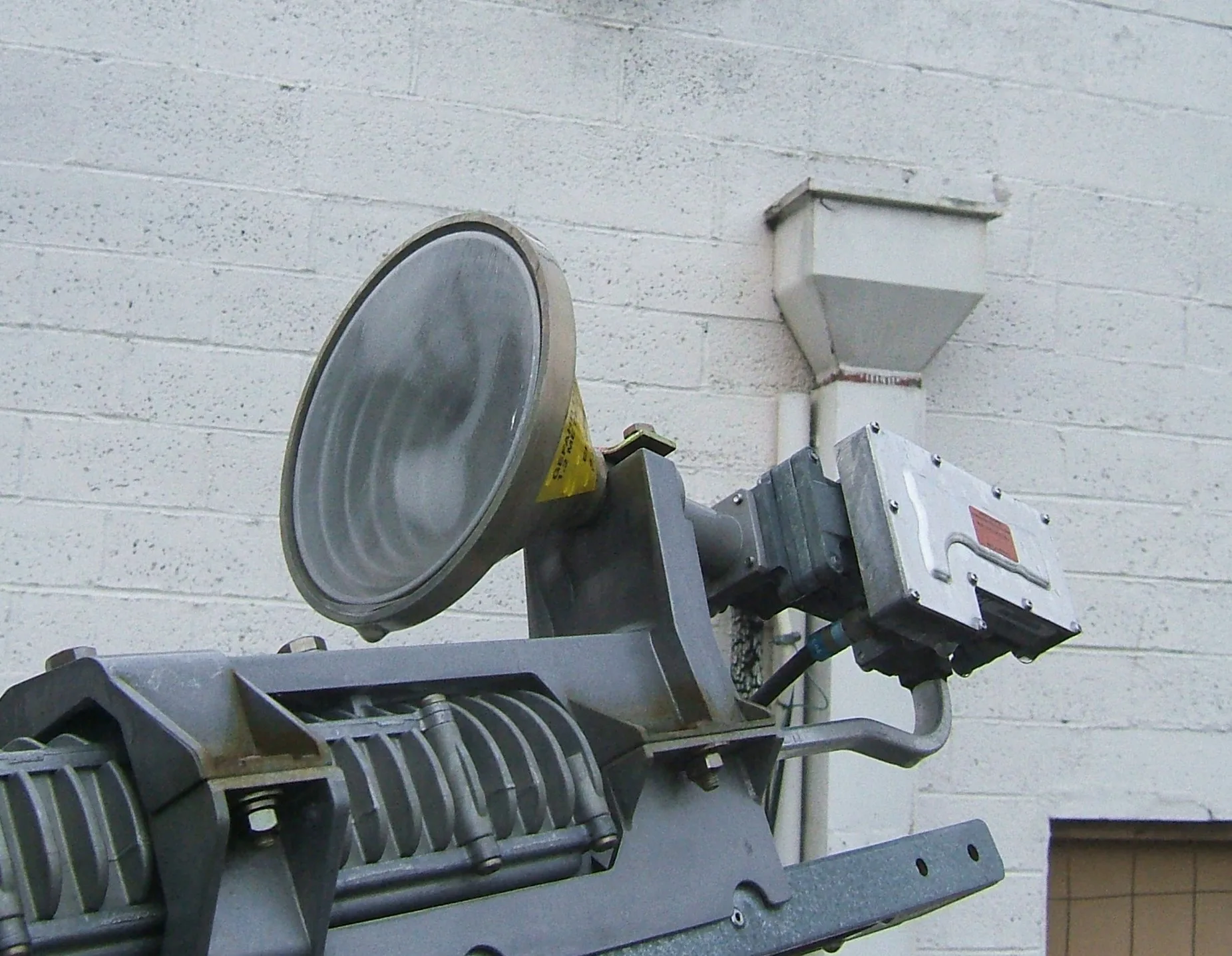

Corrugated conical horn antenna image example from Wikipedia.

The beamwidth depends on the horn’s dimensions and operating frequency. Proper design is important for achieving the desired directional radiation pattern across the operating bandwidth. As a leader in both amplifier research and waveguide engineering, Amplifier Research continues to drive innovation, pushing the boundaries of what is achievable in horn antenna performance.

The Anatomy of a Horn Antenna

Horn antennas are an important part of many radio transmission systems. They are typically composed of a short length of rectangular or cylindrical metal tube, which flares into a conical horn or pyramidal shaped horn on the other end.

Below are the main types of horn antennas. Horns can have different flare angles as well as different expansion curves (elliptic, hyperbolic, etc.) in the E-field and H-field directions, making possible a wide variety of different beam profiles.

Pyramidal horn (fig. a) – a horn antenna with the horn in the shape of a four-sided pyramid, with a rectangular cross section. They are a common type, used with rectangular waveguides, and radiate linearly polarized radio waves.

Sectoral horn – A pyramidal horn with only one pair of sides flared and the other pair parallel. It produces a fan-shaped beam, which is narrow in the plane of the flared sides, but wide in the plane of the narrow sides. These types are often used as feed horns for wide search radar antennas.

E-plane horn (fig. b) – A sectoral horn flared in the direction of the electric or E-field in the waveguide.

H-plane horn (fig. c) – A sectoral horn flared in the direction of the magnetic or H-field in the waveguide.

Conical horn (fig. d) – A horn in the shape of a cone, with a circular cross section. They are used with cylindrical waveguides.

Exponential horn (fig. e) – A horn with curved sides, in which the separation of the sides increases as an exponential function of length. Also called a scalar horn, they can have pyramidal or conical cross sections. Exponential horns have minimum internal reflections, and almost constant impedance and other characteristics over a wide frequency range. They are used in applications requiring high performance, such as feed horns for communication satellite antennas and radio telescopes.

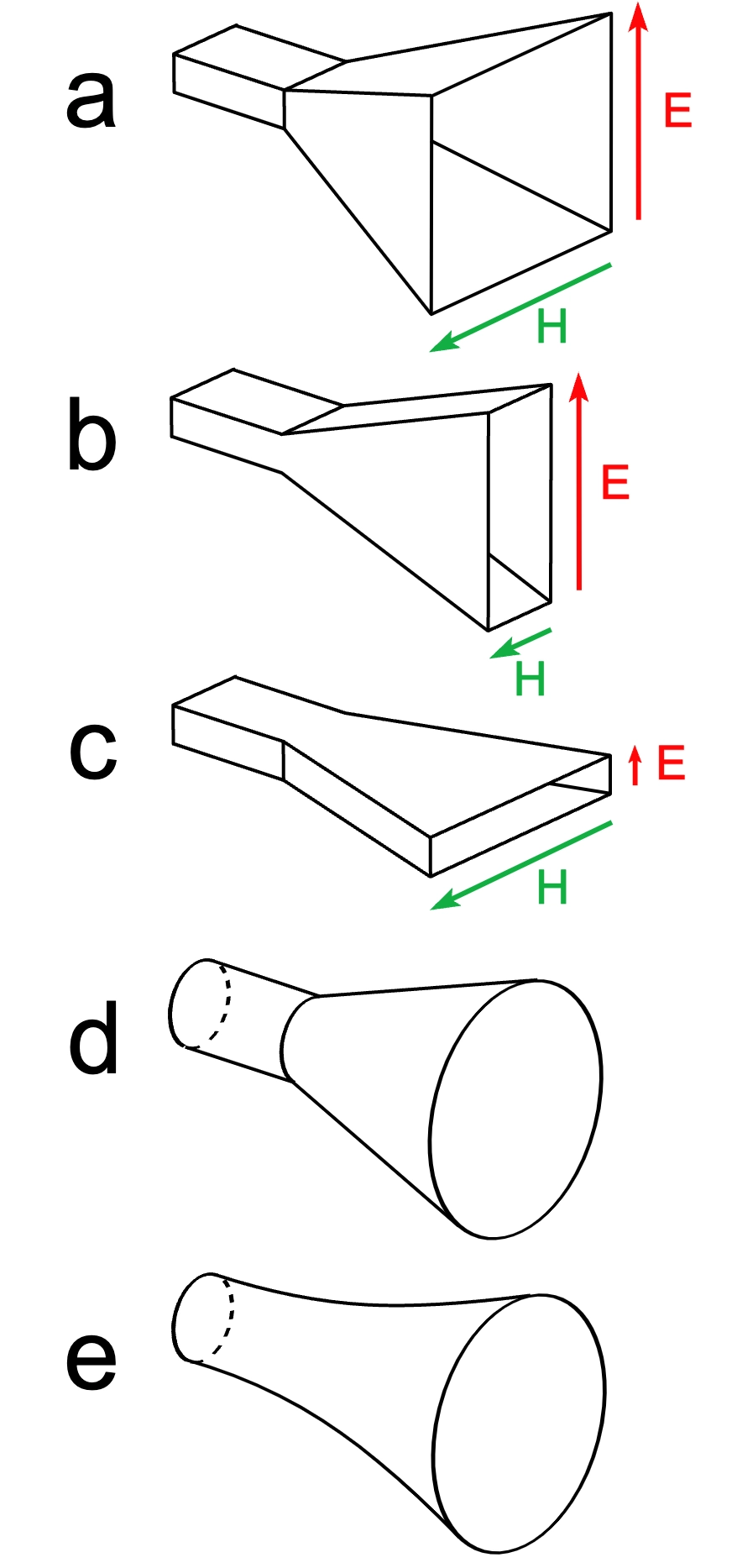

Horn antenna types image example from Wikipedia.

This section outlines the significant aspects of horn antennas including flare angle, aperture efficiency, and frequency capabilities, and their influence on performance.

Illustration of the key components of a horn antenna such as flare angle and aperture efficiency.

Flare Angle and Beam Direction

The flare angle is a critical component of horn antennas, playing a crucial role in determining the beam direction and radiation pattern. A larger flare angle leads to a broader radiation pattern, since increasing the flare angle also increases the phase error between the center point and the edges, resulting in wider beamwidths.

Typical values for flare angles in various types of horn antennas can range from a few degrees to several tens of degrees, depending on the antenna’s specific design and application. Choosing the suitable flare angle allows engineers to optimize the radiation pattern and gain, which guarantees the antenna meets the expected performance criteria.

Aperture Efficiency and Gain

Aperture efficiency and gain are essential factors in horn antenna performance, with larger apertures generally providing higher gains. The maximum aperture size of practical horns is limited to approximately 15 wavelengths, and the gain of horn antennas can reach up to 25 dBi, with an average range of 10–20 dBi.

Note that the gain from practical horn antennas is limited to about 1000 (30 dBi). With careful selection of the right aperture size, engineers can balance the gain and beamwidth efficiently, guaranteeing optimal horn antenna performance.

Frequency Capabilities and Bandwidth

Horn antennas are versatile in terms of frequency capabilities, offering a wide range of operational frequencies. The flare separation plays a crucial role in determining the frequency capabilities of a horn antenna, with noteworthy radiation of a frequency component being observed when the flare separation exceeds 0.4.

To increase the bandwidth of a horn antenna, engineers may employ a horn lens antenna or integrate a metasurface with the horn antenna, both of which can provide wide bandwidth coverage. The size of the horn antenna will be contingent upon the desired frequency range, ensuring optimal performance across various applications and industries. One useful way to increase the bandwidth of a horn antenna is to use a double ridge design, which adds a ridge along the side walls of the waveguide.

Types of Horn Antennas: From Pyramidal to Conical

Horn antennas come in various shapes and sizes, including standard gain horn antenna, microwave gain horn antenna, and simply gain horn antennas, as well as broadband passive devices, each designed for specific applications and performance requirements.

This part will cover the different types of horn antennas along with their respective pros and cons.

Illustration of different types of horn antennas including pyramidal and conical designs.

Standard Gain Horn Antennas

Standard gain horn antennas are a type of microwave horn antenna designed to deliver a steady level of gain across a wide frequency range. They function by utilizing the shape of the horn to focus and direct the electromagnetic waves, leading to amplified signal strength and enhanced performance. These antennas are typically employed for calibration and measurement tasks due to their predictable radiation patterns.

Standard gain horn antennas:

  • Constructed from aluminum
  • Frequency capabilities typically range from 1.7 GHz to 40 GHz, depending on the type and style
  • Offer a stable gain across a wide frequency range
  • Excellent choice for a variety of calibration and measurement applications.

Microwave Gain Horn Antennas

Microwave gain horn antennas, also known as microwave horn antennas, are designed for high-frequency applications, such as high-frequency communication systems, radar systems, satellite communication, and wireless networking. These antennas offer high directivity, low standing wave ratio, and a wide frequency range, typically from 1 GHz to 100 GHz.

The operational principle of microwave gain horn antennas relies on the flared waveguide structure to generate high directivity and gain. These antennas, which transmit and receive microwave signals with a narrow beamwidth, offer accurate, focused communication, earning their popularity in radar systems, satellite dishes, and microwave communication systems.

Broadband Passive Devices Shaped for Precision

Broadband passive devices, such as horn antennas, are shaped for precision, providing consistent performance across a wide range of frequencies. Broadband horn antenna precision in the shaping of these devices is achieved through meticulous design and optimization of the horn geometry, including factors such as the shape, size, and flare angle of the horn.

Achieving a wide bandwidth and directing a radio wave at a specific frequency to the desired destination is possible through precise shaping of the horn. Furthermore, the use of double-ridged horns can extend the bandwidth of the antenna.

Broadband waveguide horn antennas are a type of broadband passive devices, encompassing a frequency range from 6 to 67 GHz, allowing for versatile and reliable performance in various applications.

There are a few more horn antennas used that as; octave horn antenna, conical horn antenna, corrugated conical horn antenna, double ridged horn antenna, quad ridged horn antenna, dual polarized horn antenna, etc.

Practical Applications of Horn Antennas

Horn antennas are widely used in satellite communication ground stations, radar systems, and measurement systems due to their high gain and directional radiation patterns. This section delves deeper into these practical applications and examines how horn antennas contribute to the performance and reliability of these systems.

Illustration of a horn antenna in a satellite communication ground station.

Satellite Communication Ground Stations

Satellite communication ground stations utilize horn antennas to maintain reliable communication links with orbiting satellites. These antennas are employed to capture incoming signals from terrestrial ground stations and other satellites, as well as to transmit outgoing signals back to Earth or to other satellites. Horn antennas provide a wide frequency range and are simple to use for long-distance signal transmission.

The benefits of horn antennas in satellite communication include:

  • High directivity and gain
  • Broad bandwidth
  • Low losses
  • Straightforward construction and adjustment

With these advantages, horn antennas play a pivotal role in creating and sustaining communication links between satellites and ground stations, assuring the reliability and efficiency of satellite communication systems.

Radar and Measurement Systems

Radar and measurement systems benefit from the high directivity and low loss characteristics of horn antennas, ensuring accurate and efficient data collection. The increased directivity provided by horn antennas helps to maximize signal strength and enhance the radar system’s detection capabilities.

Moreover, the low-loss characteristics of horn antennas improve the efficiency of radiation and reduce signal loss, allowing for more precise and dependable data collection in measurement systems. These benefits have made horn antennas a popular choice in various radar and measurement applications, ensuring reliable and accurate data collection and signal transmission.

Sectors Horn Antennas are Often Utilized

Horn antennas are widely utilized in various sectors due to their efficiency and reliability in transmitting and receiving electromagnetic waves. Here’s a breakdown of their applications across different sectors:

Radar and Measurement Systems:

  • Used in radar systems for detecting and tracking weather patterns.
  • Helps in forecasting weather conditions and issuing severe weather alerts.

Military Defense Radar:

  • Essential in surveillance, target acquisition, and tracking.
  • Employed in missile guidance systems and airspace monitoring.

Maritime Navigation:

  • Assists in ship navigation and collision avoidance systems.
  • Crucial for maritime communication and safety at sea.

Air Traffic Control:

  • Facilitates accurate tracking and communication with aircraft.
  • Ensures safe management of air traffic and airspace coordination.

Scientific & Inspection Research:

  • Utilized in radio astronomy for deep space exploration and study.
  • Employed in environmental monitoring and electromagnetic field research.

Working with Startups:

  • Aids startups in developing innovative communication and radar technologies.
  • Provides expertise in electromagnetic applications and system design.

Each of these sectors leverages the high directionality, gain, and reliability of horn antennas to meet their specific communication and radar system needs.

Optimizing Horn Antenna Performance

Illustration of optimizing horn antenna performance through flare angle and aperture size.

Optimizing horn antenna performance involves finding the right balance between flare angle, aperture size, and frequency capabilities to achieve the desired radiation pattern and gain. By gaining an understanding of these key components, engineers can customize the design of horn antennas to meet specific performance criteria and ensure optimal operation across various applications and industries. The synergy between advanced RF power amplifier technology and horn antenna design propels us to the forefront of waveguide innovation, meeting the demands of high-frequency communication with precision.

Several strategies can be employed to optimize horn antenna performance, including:

  • Efficiency optimization
  • Genetic algorithm optimization
  • Topology optimization
  • EBG structure optimization
  • Understanding RF system requirements

Employing these strategies and giving careful consideration to the design parameters of horn antennas enables engineers to achieve the desired performance characteristics and ensure the efficient operation of these versatile antennas.

Comparing Horn Antennas to Other Antennas

Horn antennas offer several advantages over other types of antennas, including high gain, low loss, and directional radiation patterns. These attributes make them a popular choice for various communication and radar applications, such as satellite communication, radar systems, and wireless networking.

The main differences between horn antennas and other antennas, such as dipole, parabolic, and Yagi-Uda antennas, lie in their design, radiation patterns, and frequency capabilities. Horn antennas are characterized by their flaring metal waveguide shape, whereas other antennas possess varied designs. Horn antennas are tailored to focus radio waves in a beam, while other antennas present a more omnidirectional radiation pattern.

Horn antennas are typically employed for microwave frequencies, while other antennas can be utilized for a broader range of frequencies.


In this blog post, we have explored the fascinating world of horn antennas, uncovering their unique features, types, and practical applications. From their high gain and low loss characteristics to their directional radiation patterns, horn antennas have proven to be indispensable across various industries, including satellite communication, radar systems, and measurement systems. As we have seen, optimizing the performance of horn antennas involves finding the right balance between flare angle, aperture size, and frequency capabilities. With their unparalleled versatility and efficiency, horn antennas continue to be a popular choice for ensuring reliable and accurate communication and data collection in today’s increasingly connected world. Well-designed products minimize the need for technical support by making things intuitive for users.

Frequently Asked Questions

  • How do flare angles affect the radiation pattern of horn antennas?

    Horn antennas with larger flare angles produce wider radiation patterns due to increased phase errors between the center point and the edges.

  • What are the main components of a horn antenna?

    A horn antenna is composed of a flared angle, aperture efficiency, frequency range and waveguide.

  • How do you feed horns antenna?

    Horn antennas are typically fed by waveguide straight sections, using a physical feed pin with voltage source, a waveguide port with waveguide source, an impressed field distribution aperture source or a modal port with modal source via the finite element method (FEM). Adding a phase shifter to the feed of a horn antenna allows you to electronically steer the beam without physically moving the antenna.

  • How do I increase the gain of my horn antenna?

    To increase the gain of a horn antenna, it is necessary to increase its length and angle. Additionally, using a dielectric hemispheric lens in the frequency band can further increase the gain.

  • What is a horn antenna used for?

    A horn antenna is used to transmit and collect radio waves from a waveguide, with its power radiating out in the shape of a spherical wavefront. It is commonly employed for elements of phased arrays, satellite and microwave communications, calibration, and other high-gain antennas for electromagnetic interference measurement.
