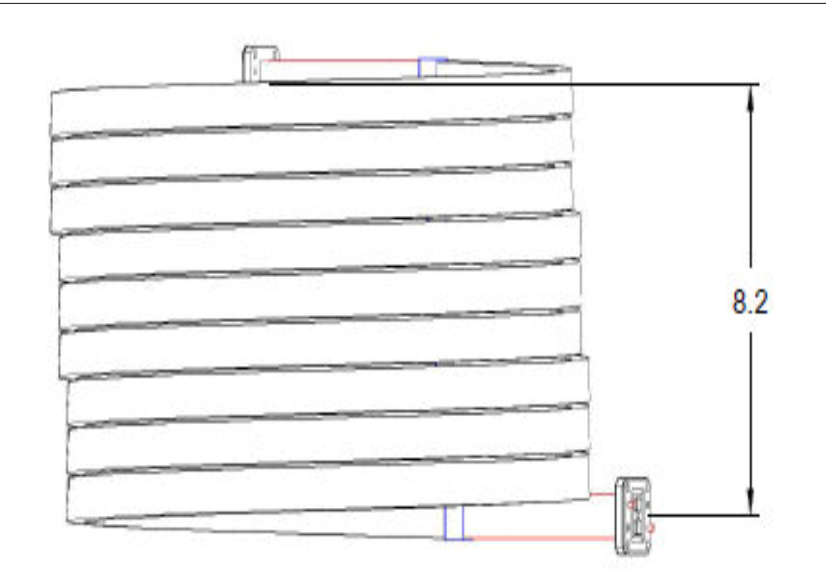

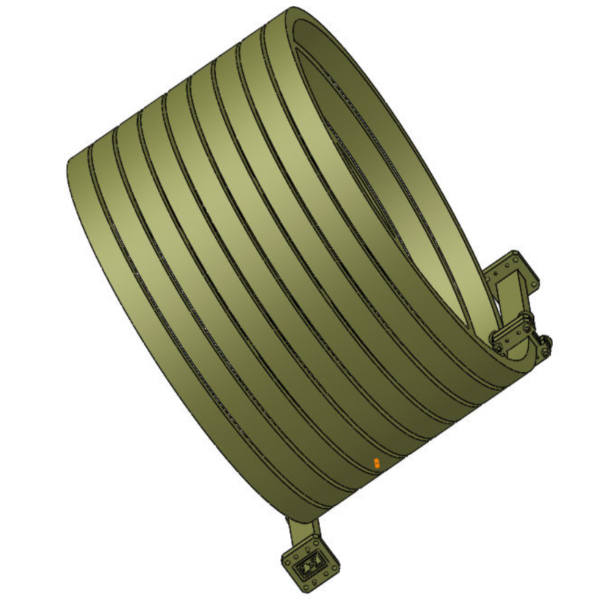

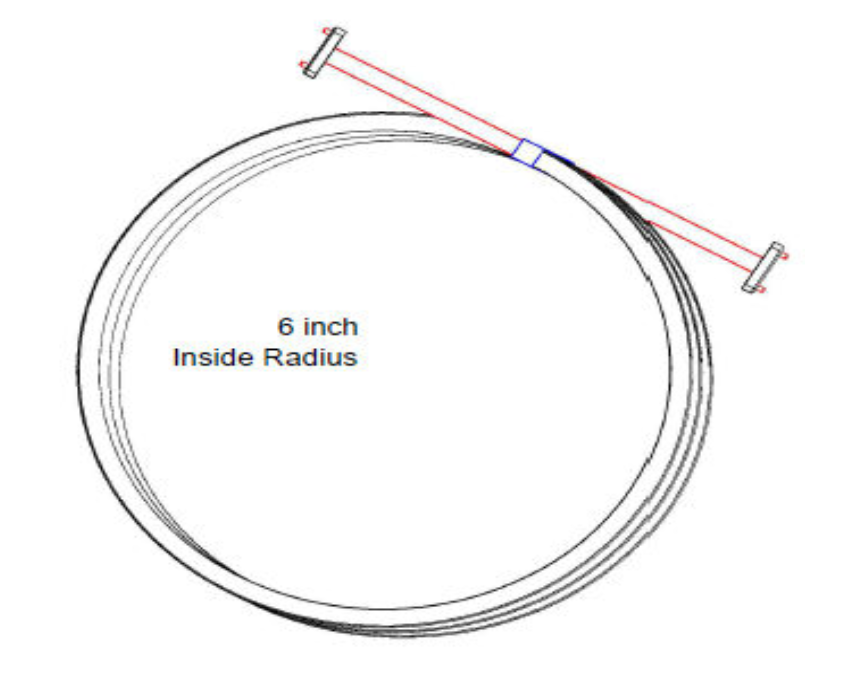

Coiled Delay Line Assembly

Space Machine fabricates custom product line of coiled delay line assemblies covering rectangular and double ridge wave-guides.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine fabricates custom product line of coiled delay line assemblies covering rectangular and double ridge wave-guides. Contact SME for additional information regarding configuration and electrical length.

Ordering Information

Models

    • Series: DCL

    • Waveguide Size: Please specify

    • Length:

    • Material: A - Aluminum, B – Brass, O – Other

    • Plating: C – Chromate, N – None

    • Finish: P – Paint Space Machine Gray, N – None, O – Other

    • Series: WCL

    • Waveguide Size: Please specify

    • Length:

    • Material: A - Aluminum, B – Brass, O – Other

    • Plating: C – Chromate, N – None

    • Finish: P – Paint Space Machine Gray, N – None, O – Other

    Ordering Information

    Coiled Delay Line Assembly
    Example part number:
    Double ridge coiled delay Line assembly, WRD750, 360” long , Aluminum, Cover Flanges, Chromate, Paint Space Machine Gray.
    GET A QUOTE
    Series

    DCL, WCL

    Waveguide Size

    Please specify

    Length

    Any

    Material

    A – Aluminum, B – Brass, O – Other

    Plating

    C – Chromate, N – None

    Finish

    P – Paint Space Machine Gray, N – None, O – Other
