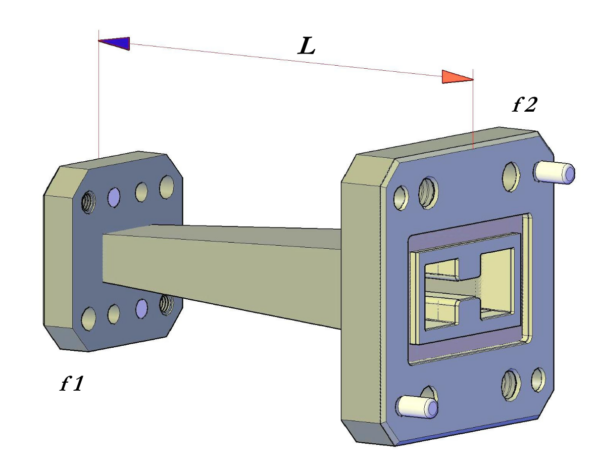

Double Ridge To Double Ridge Waveguide Transitions
Space Machine offers a standard product line of double ridge to double ridge transitions covering waveguide sizes WRD180 thru WRD200. VSWR is 1.10:1 typical in the overlapping frequency bands.
Models
Download Technical Specifications Highlights
Space Machine offers a standard product line of double ridge to double ridge transitions covering waveguide sizes WRD180 thru WRD200. VSWR is 1.10:1 typical in the overlapping frequency bands.
Additional sizes and configurations are available upon request.

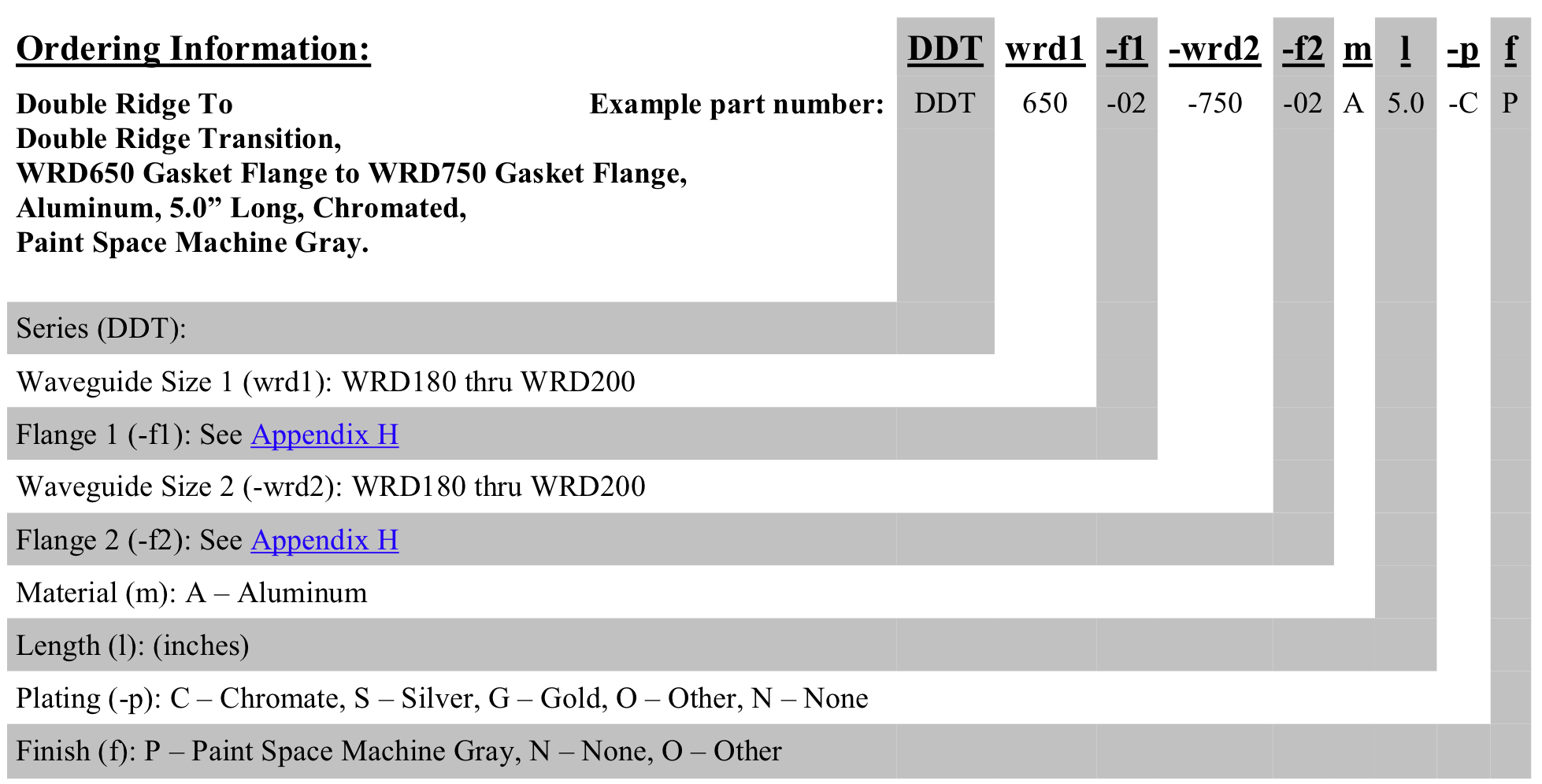

Ordering Information
Ordering Information
Double Ridge To Double Ridge Waveguide Transitions
Example part number:
Double Ridge To Double Ridge Transition, WRD650 Gasket Flange to WRD750 Gasket Flange, Aluminum, 5.0” Long, Chromated, Paint Space Machine Gray.
GET A QUOTEDouble Ridge To Double Ridge Transition, WRD650 Gasket Flange to WRD750 Gasket Flange, Aluminum, 5.0” Long, Chromated, Paint Space Machine Gray.
| Series | DDT |
|---|---|
| Waveguide Size | WRD180 thru WRD200 |
| Material | A – Aluminum |
| Length | Any |
| Plating | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
| Finish | P – Paint Space Machine Gray, N – None, O – Other |
