Double Ridge Waveguide Circulators

Space Machine & Engineering offers a standard product line of double ridge ferrite Circulators.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

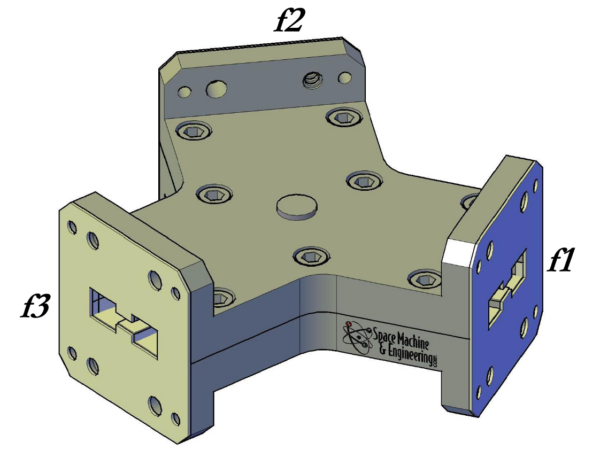

Space Machine & Engineering offers a standard product line of double ridge ferrite Circulators. These circulators are permanent magnet 3-port devices that use a Y-junction structure housed in standard double ridge waveguide. Greater isolation, better insertion loss and VSWR are achievable with reduced bandwidths. Please specify required bandwidth and pressurization requirements when ordering. Additional sizes and configurations are available upon request.

Ordering Information

Models

  • Models: DFC580

  • Models: DFC650

  • Models: DFC750

Ordering Information

Double Ridge Waveguide Circulators

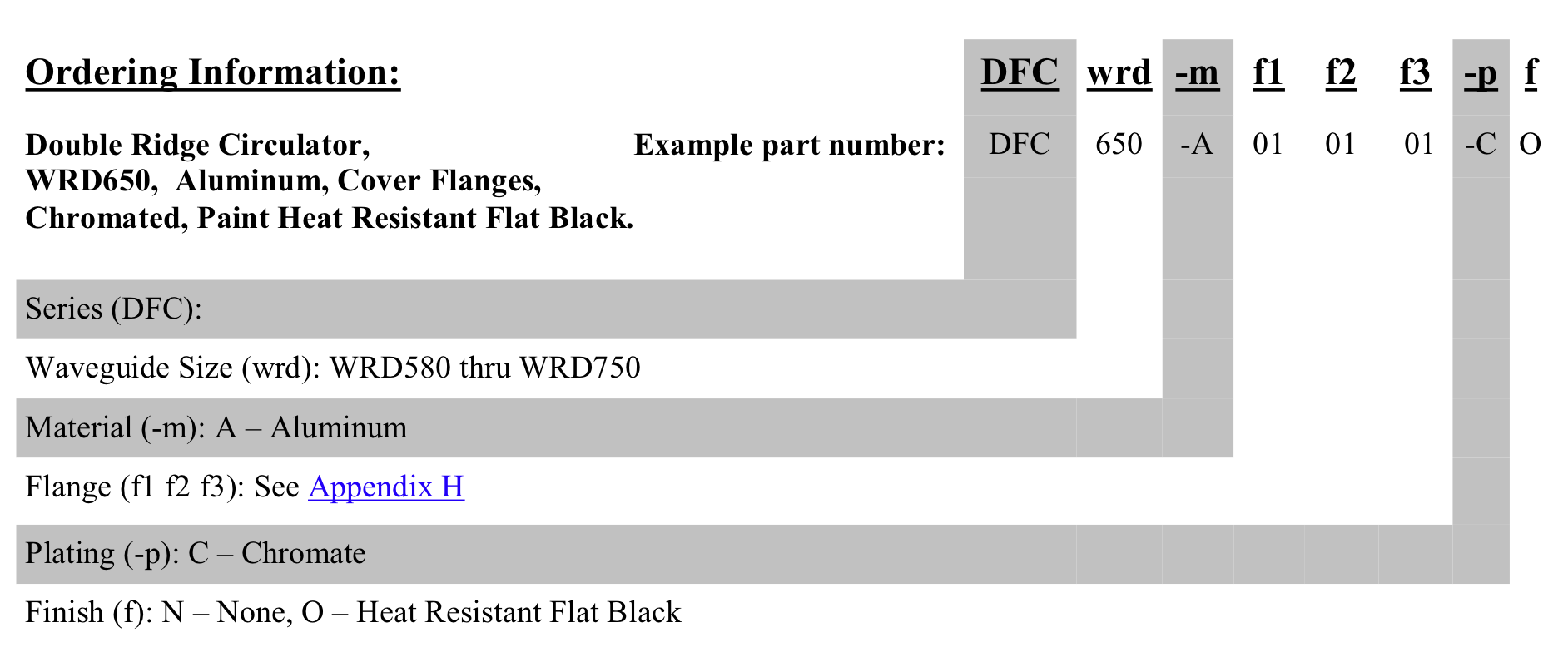

Example part number:
Double Ridge Circulator, WRD650, Aluminum, Cover Flanges, Chromated, Paint Heat Resistant Flat Black.
GET A QUOTE
Models

DFC580, DFC650, DFC750

WRD

580, 650, 750

Frequency (GHz)

8.00 – 18.00

Isolation (dB)

15

Insertion Loss (dB) Max.

0.5

VSWR

1.35:1, 1.45:1, 1.40:1

Maximum Average Power (W)

250

Maximum Peak Power (KW)

2
