Double Ridge Waveguide Dual Fitting Pressure Flange

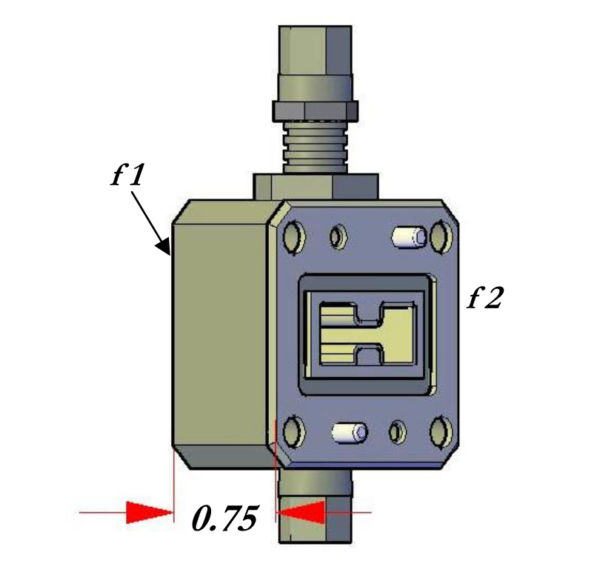

Space Machine offers a standard product line of double ridge dual fitting pressure flanges covering waveguide sizes WRD180 thru WRD200. VSWR is 1.15:1 over the full waveguide band. Double ridge waveguide dual fitting pressure flange standard thickness is 0.75”.
Models
Download Technical Specifications Highlights
Space Machine offers a standard product line of double ridge dual fitting pressure flanges covering waveguide sizes WRD180 thru WRD200. VSWR is 1.15:1 over the full waveguide band. Double ridge waveguide dual fitting pressure flange standard thickness is 0.75”. Custom thickness is also available upon request.
Different types of pressure fittings available in standard SME pressure flange assembly, such as Schrader Valve, Flared Compression Fitting, Pipe Threads, or Barbed Fitting. Pressure inlet can be substituted with drain unit or pressure drain unit.
Additional sizes and configurations are available upon request.
Ordering Information
Ordering Information
Double Ridge Waveguide Dual Fitting Pressure Flange
Example part number:
Double Ridge Waveguide Dual Fitting Pressure Flange, WRD650, Aluminum, Cover Flange, Gasket Flange, with Schrader Valve, Chromate, Paint Space Machine Gray.
GET A QUOTEDouble Ridge Waveguide Dual Fitting Pressure Flange, WRD650, Aluminum, Cover Flange, Gasket Flange, with Schrader Valve, Chromate, Paint Space Machine Gray.
| Series | DDPF |
|---|---|
| Waveguide Size | WRD180 thru WRD200 |
| Material | A – Aluminum |
| Pressure Fitting | Schrader Valve-SV, Flared Compression Fitting-FF, Pipe Threads-PT, Barbed Fitting-BF |
| Plating | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
| Finish | P – Paint Space Machine Gray, N – None, O – Other |
