Double Ridge Waveguide Dual Topwall Couplers
Space Machine custom fabricates a standard product line of double ridge dual topwall couplers covering waveguide sizes WRD180 thru WRD200.
Models

Highlights
Space Machine custom fabricates a standard product line of double ridge dual topwall couplers covering waveguide sizes WRD180 thru WRD200. Coupling variation is typically ± 2dB over the full waveguide band. Directivity is 20dB minimum. Additional sizes and configurations are available upon request.

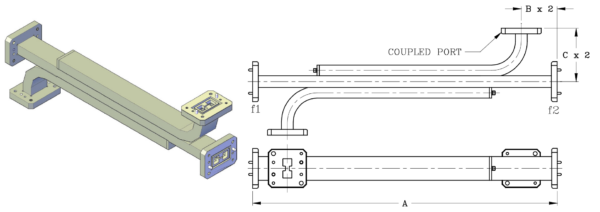

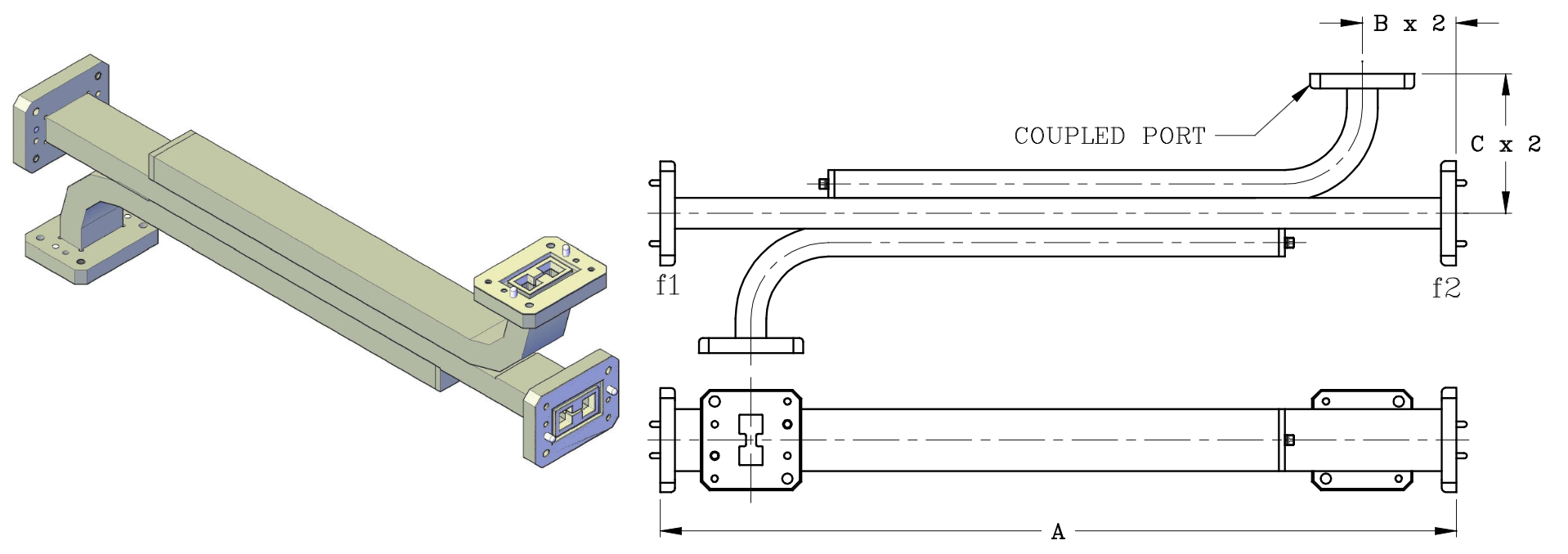

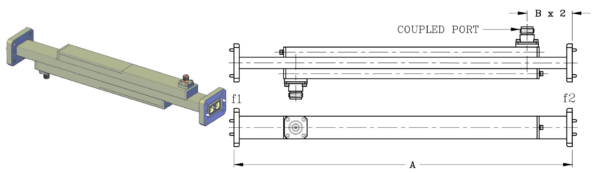

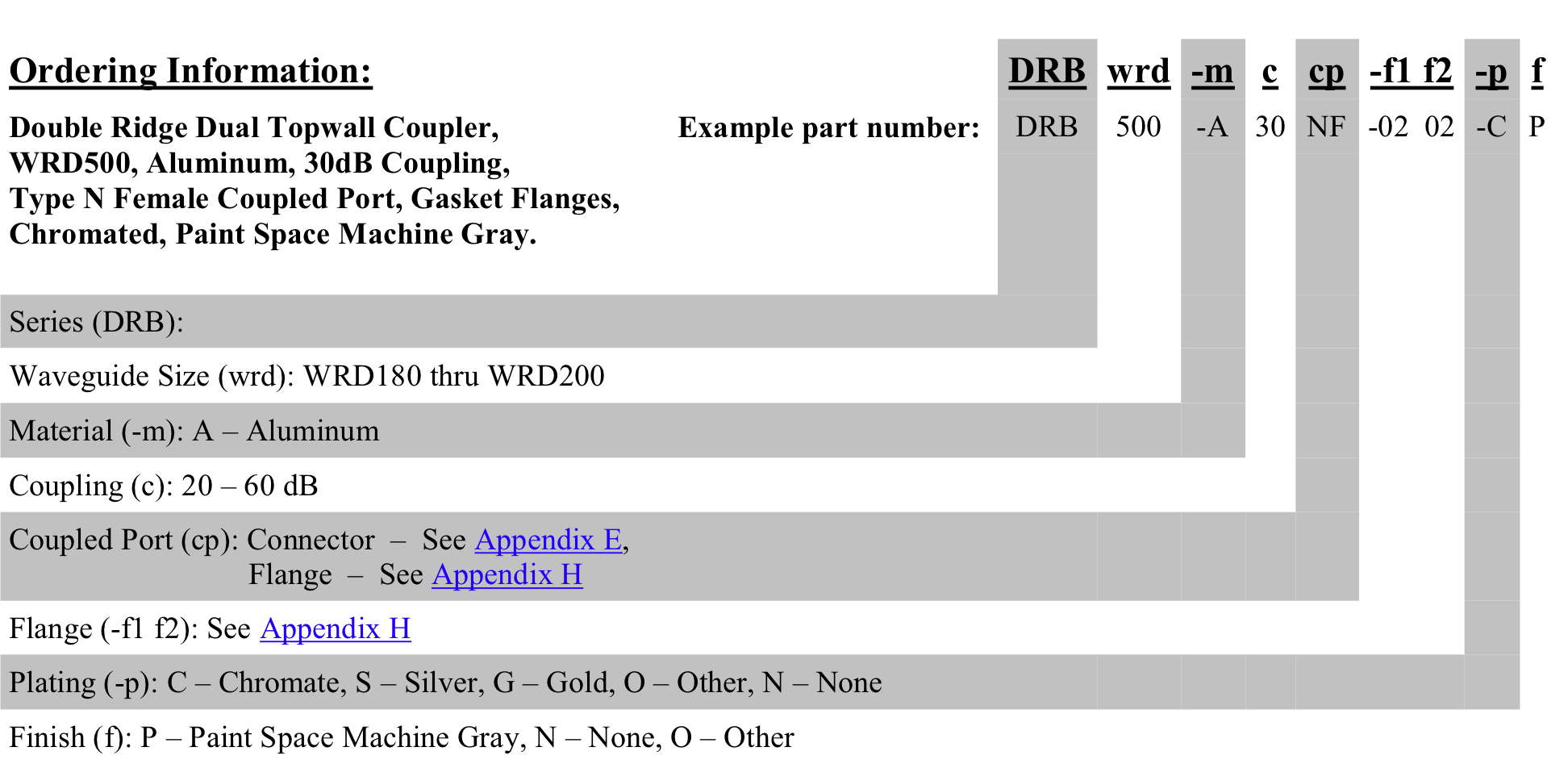

Ordering Information
Ordering Information
Double Ridge Dual Topwall Coupler, WRD500, Aluminum, 30dB Coupling, Type N Female Coupled Port, Gasket Flanges, Chromated, Paint Space Machine Gray.
Models | DRB110, DRB180, DRB200, DRB250, DRB350, DRB475, DRB500, DRB580, DRB650, DRB750 |
---|---|
WRD | 110, 180, 200, 250, 350, 475, 500, 580, 650, 750 |
Frequency (GHz) | 11.00 – 26.50, 18.00 – 40.00, 2.00 – 4.80, 2.60 – 7.80, 3.50 – 8.20, 4.75 – 11.00, 5.00 – 18.00, 5.80 – 16.00, 6.50 – 18.00, 7.50 – 18.00 |
A | 15.00, 20.00, 24.00, 36.00, 40.00, 42.00, 44.00 |
B | 1.30, 1.60, 1.80, 2.00, 2.20, 2.75 |
C | 1.40, 1.70, 2.00, 1.40, 2.70, 3.00, 5.00 |
Material | A – Aluminum |
Coupling | 20 – 60 dB |
Plating | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
Finish | P – Paint Space Machine Gray, N – None, O – Other |
