Double Ridge Waveguide Formed E & H Plane Offset Assemblies

Space Machine will custom fabricate double ridge formed E and H plane offset assemblies covering waveguide sizes WRD180 thru WRD200. Offset distance, leg lengths and flange types are made to customer specifications. VSWR is 1.15:1 over the full waveguide band.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine will custom fabricate double ridge formed E and H plane offset assemblies covering waveguide sizes WRD180 thru WRD200. Offset distance, leg lengths and flange types are made to customer specifications. VSWR is 1.15:1 over the full waveguide band.

Ordering Information

Models

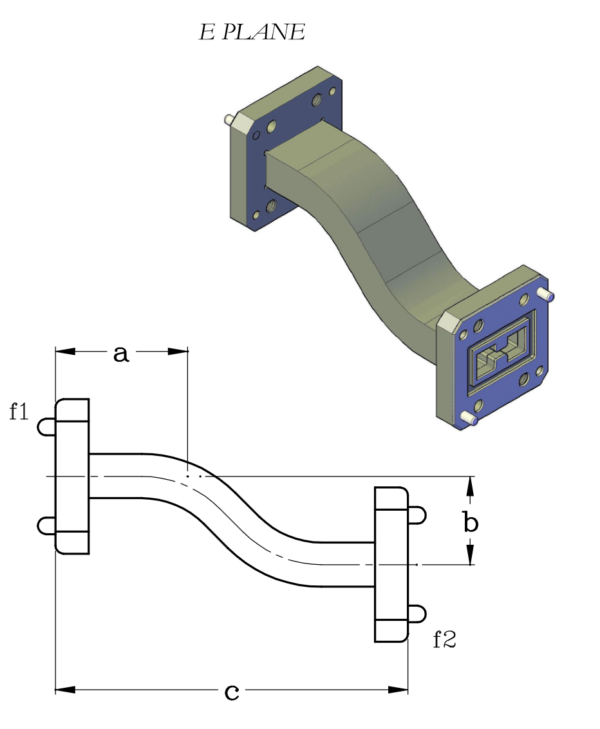

  • Models: E PLANE

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate, S – Silver, G – Gold, O – Other, N – None

  • Finish: P – Paint Space Machine Gray, N – None, O – Other

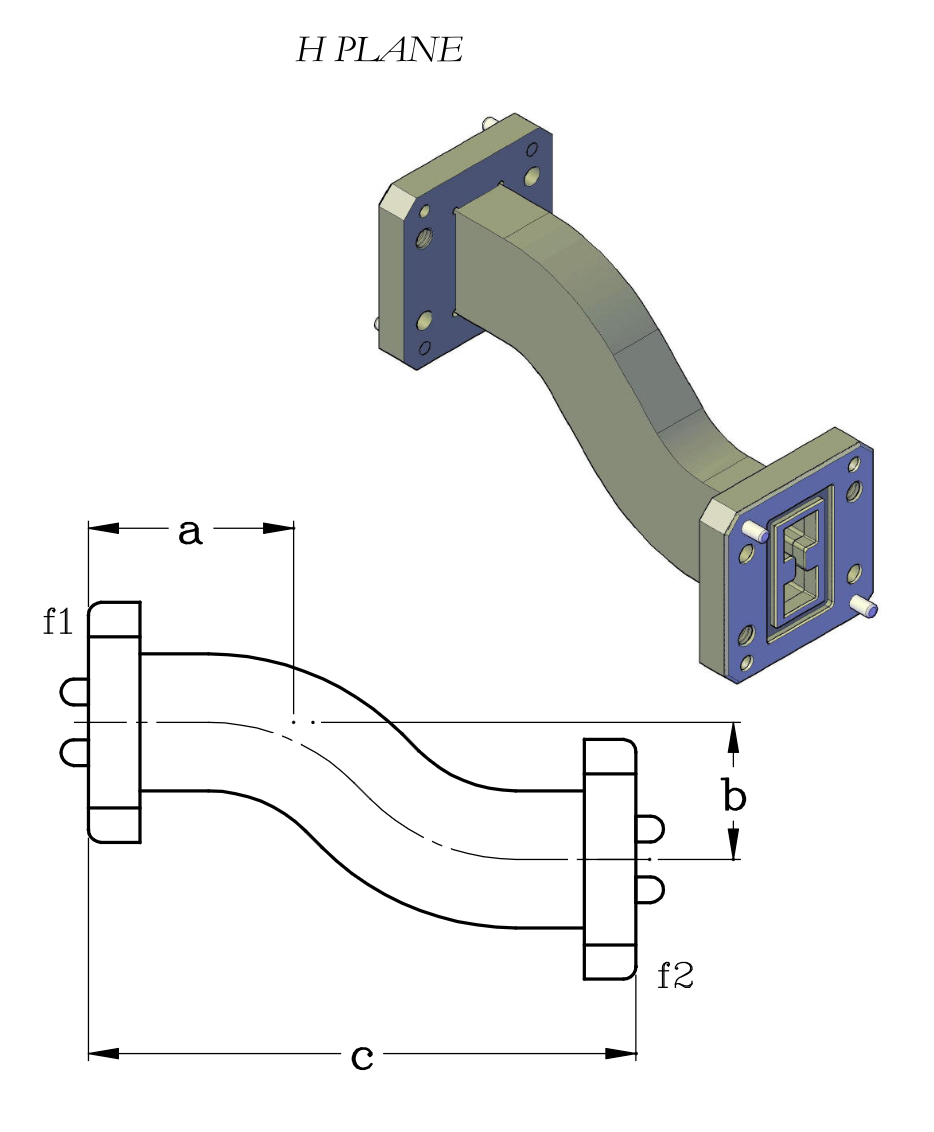

  • Models: H PLANE

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate, S – Silver, G – Gold, O – Other, N – None

  • Finish: P – Paint Space Machine Gray, N – None, O – Other

Ordering Information

Double Ridge Waveguide Formed E & H Plane Offset Assemblies
Example part number:
Double Ridge Formed E Offset Assembly, WRD650, 3 inch leg X 2 inch offset X 4 inch leg, Aluminum, Cover Flange, Gasket Flange, Chromated, Paint Space Machine Gray.
GET A QUOTE
Models

E PLANE, H PLANE

Waveguide Size

WRD180 thru WRD200

Material

A – Aluminum

Plating

C – Chromate, S – Silver, G – Gold, O – Other, N – None

Finish

P – Paint Space Machine Gray, N – None, O – Other

We’re Your Partner from Prototyping to Production and Beyond

Space Machine offers a range of solutions to help review prototypes and scale up your production waveguides and parts.Our world class manufacturing facility expertise ensures your order is delivered to your exacting specifications.

Focus on Quality

Space Machine recognizes the quality of its products,the satisfaction of its customers and the health and safety of its workers as integral parts of its management function. To this end, the Company has developed a quality management system in accordance with ISO 9001:2015 and AS9100D to ensure customer satisfaction, continual improvement and compliance with all applicable requirements.
