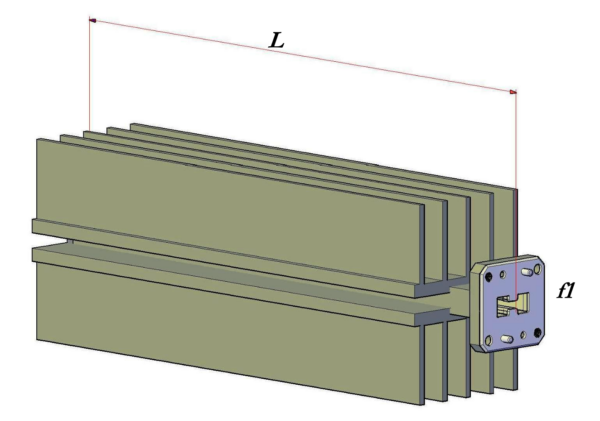

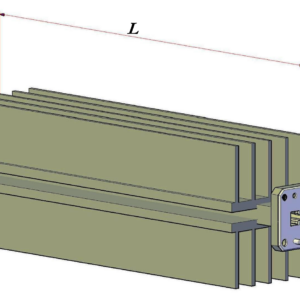

Double Ridge Waveguide High Power Termination

Space Machine offers a standard product line of high power double ridge terminations covering waveguide sizes WRD180 thru WRD200.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of high power double ridge terminations covering waveguide sizes WRD180 thru WRD200. VSWR is held to 1.15:1 maximum over the full waveguide band. Additional sizes and configurations are available upon request.

Ordering Information

Models

  • Models: DTH110

  • WRD: 110

  • Avg. Power (W): 100

  • Length: 6.00

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate

  • Finish: N – None, O – Heat Resistant Flat Black

  • Models: DTH180

  • WRD: 180

  • Avg. Power (W): 100

  • Length: 5.00

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate

  • Finish: N – None, O – Heat Resistant Flat Black

  • Models: DTH200

  • WRD: 200

  • Avg. Power (W): 1300

  • Length: 18.00

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate

  • Finish: N – None, O – Heat Resistant Flat Black

  • Models: DTH250

  • WRD: 250

  • Avg. Power (W): 1200

  • Length: 14.00

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate

  • Finish: N – None, O – Heat Resistant Flat Black

  • Models: DTH350

  • WRD: 350

  • Avg. Power (W): 1000

  • Length: 13.50

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate

  • Finish: N – None, O – Heat Resistant Flat Black

  • Models: DTH475

  • WRD: 475

  • Avg. Power (W): 800

  • Length: 12.00

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate

  • Finish: N – None, O – Heat Resistant Flat Black

  • Models: DTH500

  • WRD: 500

  • Avg. Power (W): 600

  • Length: 11.00

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate

  • Finish: N – None, O – Heat Resistant Flat Black

  • Models: DTH580

  • WRD: 580

  • Avg. Power (W): 600

  • Length: 10.00

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate

  • Finish: N – None, O – Heat Resistant Flat Black

  • Models: DTH650

  • WRD: 650

  • Avg. Power (W): 600

  • Length: 10.00

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate

  • Finish: N – None, O – Heat Resistant Flat Black

  • Models: DTH750

  • WRD: 750

  • Avg. Power (W): 600

  • Length: 10.00

  • Waveguide Size: WRD180 thru WRD200

  • Material: A – Aluminum

  • Plating: C – Chromate

  • Finish: N – None, O – Heat Resistant Flat Black

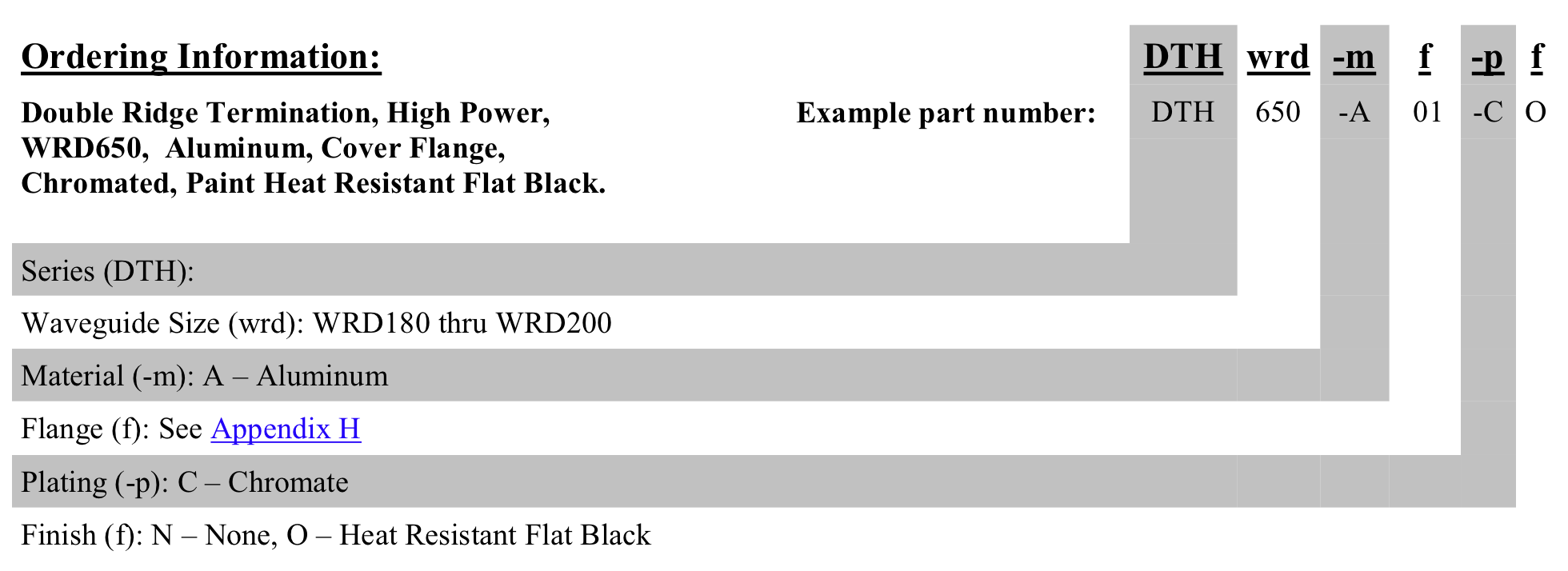

Ordering Information

Double Ridge Waveguide High Power Termination
Example part number:
Double Ridge Termination, High Power, WRD650, Aluminum, Cover Flange, Chromated, Paint Heat Resistant Flat Black.
GET A QUOTE
Models

DTH110, DTH180, DTH200, DTH250, DTH350, DTH475, DTH500, DTH580, DTH650, DTH750

WRD

110, 180, 200, 250, 350, 475, 500, 580, 650, 750

Avg. Power (W)

100, 1000, 1200, 1300, 600, 800

Length

10.00, 11.00, 12.00, 13.50, 14.00, 18.00, 5.00, 6.00

Waveguide Size

WRD180 thru WRD200

Material

A – Aluminum

Plating

C – Chromate

Finish

N – None, O – Heat Resistant Flat Black
