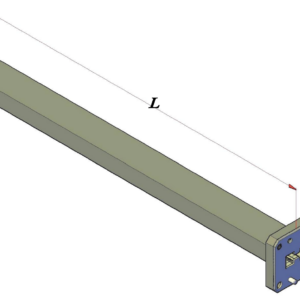

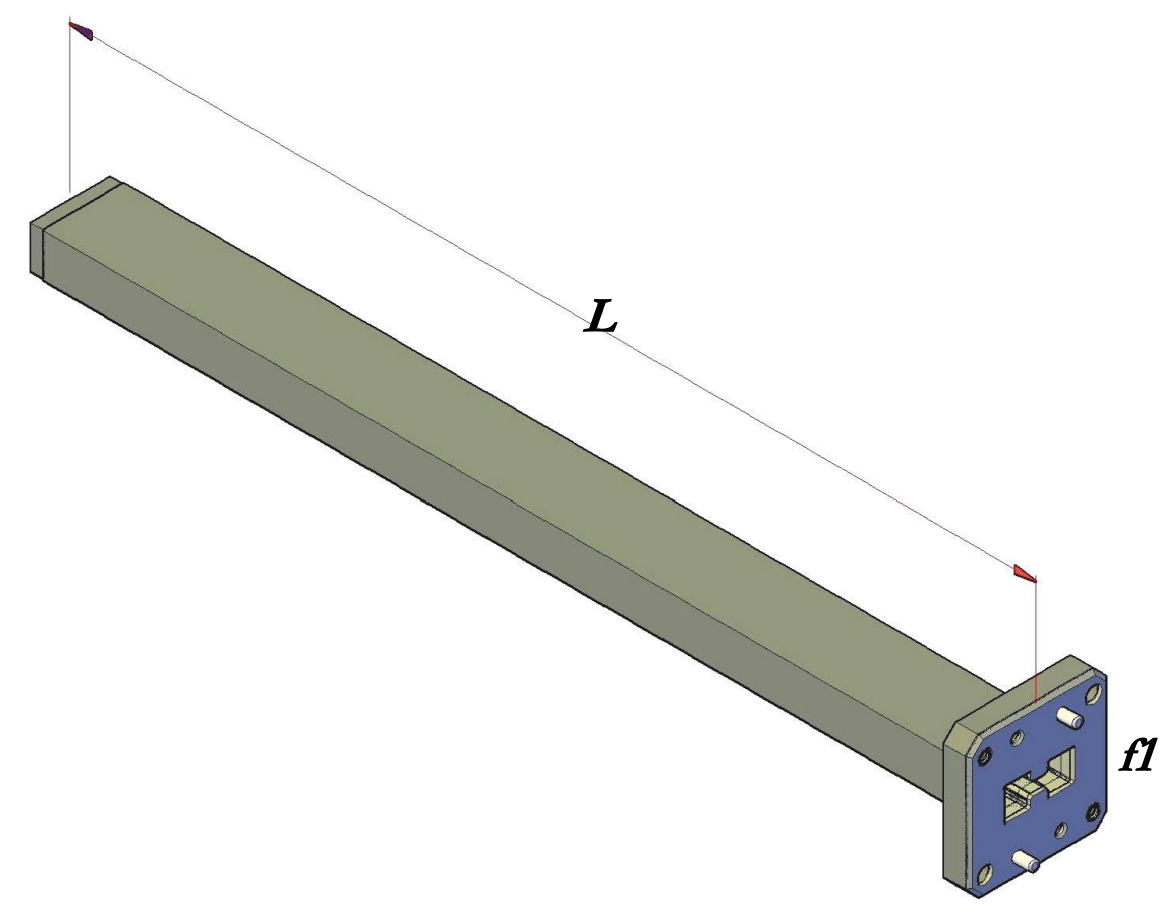

Double Ridge Waveguide Low Power Termination
Space Machine offers a standard product line of low power double ridge terminations covering waveguide sizes WRD180 thru WRD200. VSWR is held to 1.15:1 maximum over the full waveguide band. Additional sizes and configurations are available upon request.
Models
Download Technical Specifications Highlights
Space Machine offers a standard product line of low power double ridge terminations covering waveguide sizes WRD180 thru WRD200. VSWR is held to 1.15:1 maximum over the full waveguide band. Additional sizes and configurations are available upon request.

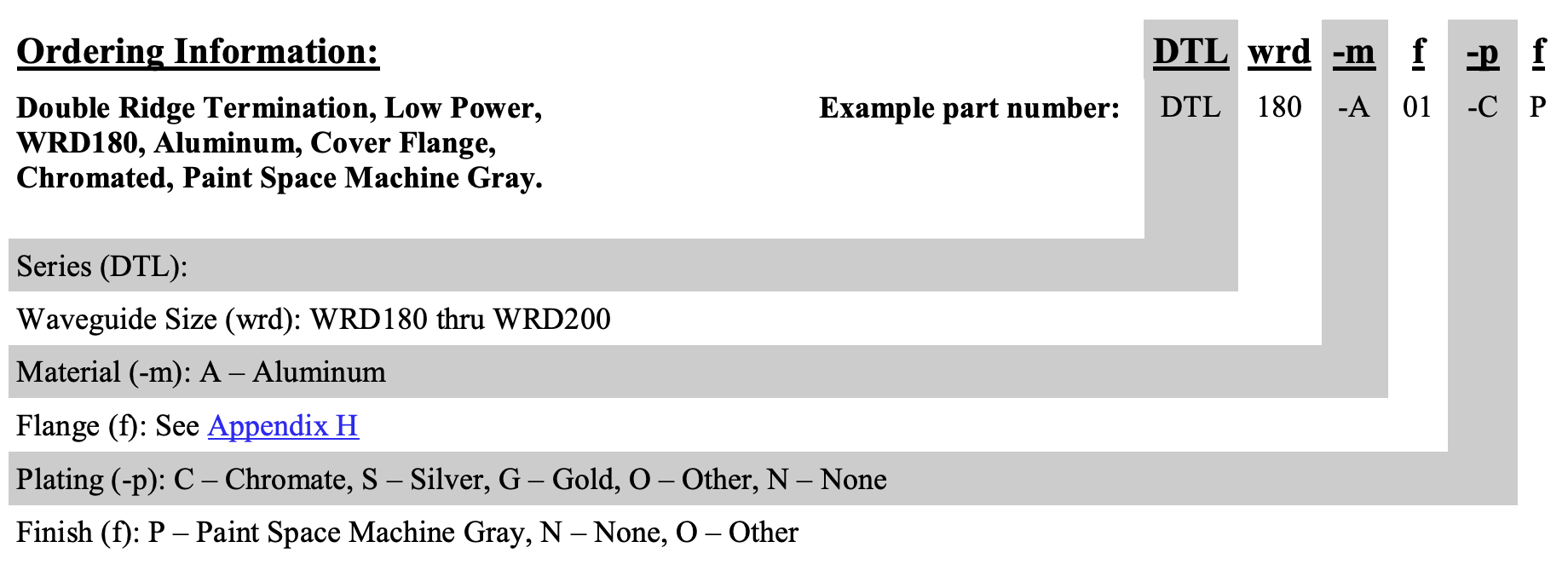

Ordering Information
Ordering Information
Double Ridge Waveguide Low Power Termination
Example part number:
Double Ridge Termination, Low Power, WRD180, Aluminum, Cover Flange, Chromated, Paint Space Machine Gray.
GET A QUOTEDouble Ridge Termination, Low Power, WRD180, Aluminum, Cover Flange, Chromated, Paint Space Machine Gray.
| Models | DTL110, DTL180, DTL200, DTL250, DTL350, DTL475, DTL500, DTL580, DTL650, DTL750 |
|---|---|
| WRD | 110, 180, 200, 250, 350, 475, 500, 580, 650, 750 |
| Frequency (GHz) | 11.00 – 26.50, 18.00 – 40.00, 2.00 – 4.80, 2.60 – 7.80, 3.50 – 8.20, 4.75 – 11.00, 5.00 – 18.00, 5.80 – 16.00, 6.50 – 18.00, 7.50 – 18.00 |
| Length | 10.00, 12.00, 13.50, 14.00, 18.00, 5.00, 6.00 |
| Avg. Power (W) | 100, 200, 400, 50, 550, 700, 75 |
