Double Ridge Waveguide Seamless Flexible Assemblies

Space Machine offers a standard product line of seamless flexible double ridge waveguide covering waveguide sizes WRD650 thru WRD200. The standard waveguide material is silver-clad brass or beryllium copper.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of seamless flexible double ridge waveguide covering waveguide sizes WRD650 thru WRD200. The standard waveguide material is silver-clad brass or beryllium copper.
Additional sizes and configurations are available upon request. See appendix N for specification.

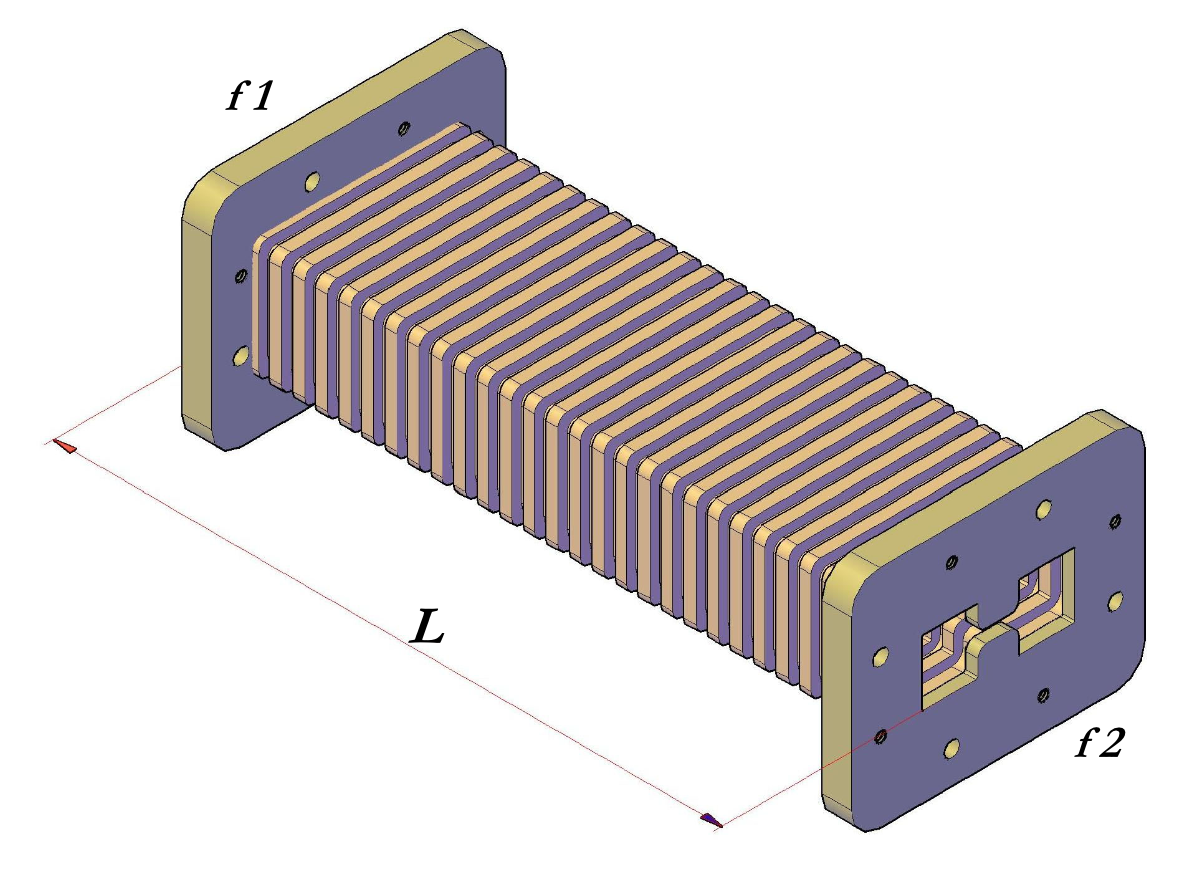

Length will be supplied with a tolerance +/- 1/8” per foot of length for flexible waveguide.

Ordering Information

Ordering Information

Double Ridge Waveguide Seamless Flexible Assemblies
Example part number:
Seamless Flexible Double Ridge, WRD350, 12“ Long, Chromated Brass Flex, Chromated Brass Cover Flanges, No Jacket.
GET A QUOTE
Series

Seamless Flex

Waveguide Size

WRD650 thru WRD200

Length

Any

Flex material

B – Brass, D- Beryllium Copper, P- Phosphor Bronze

Flex Plating

C – Chromate, S – Silver, G – Gold, O – Other, N – None

Flange Material

A – Aluminum, B – Bronze, O – Other

Jacket

N – Neoprene, S – Silicone, V – Vinyl, P – Polysulfide, A – No Jacket
