Double Ridge Waveguide Straight Assemblies

Space Machine will custom fabricate flanged double ridge straight sections covering the waveguide sizes WRD180 to WRD200. Length and flange types are made to customer specifications. VSWR is 1.10:1 maximum over the full waveguide bandwidth.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine will custom fabricate flanged double ridge straight sections covering the waveguide sizes WRD180 to WRD200. Length and flange types are made to customer specifications. VSWR is 1.10:1 maximum over the full waveguide bandwidth.

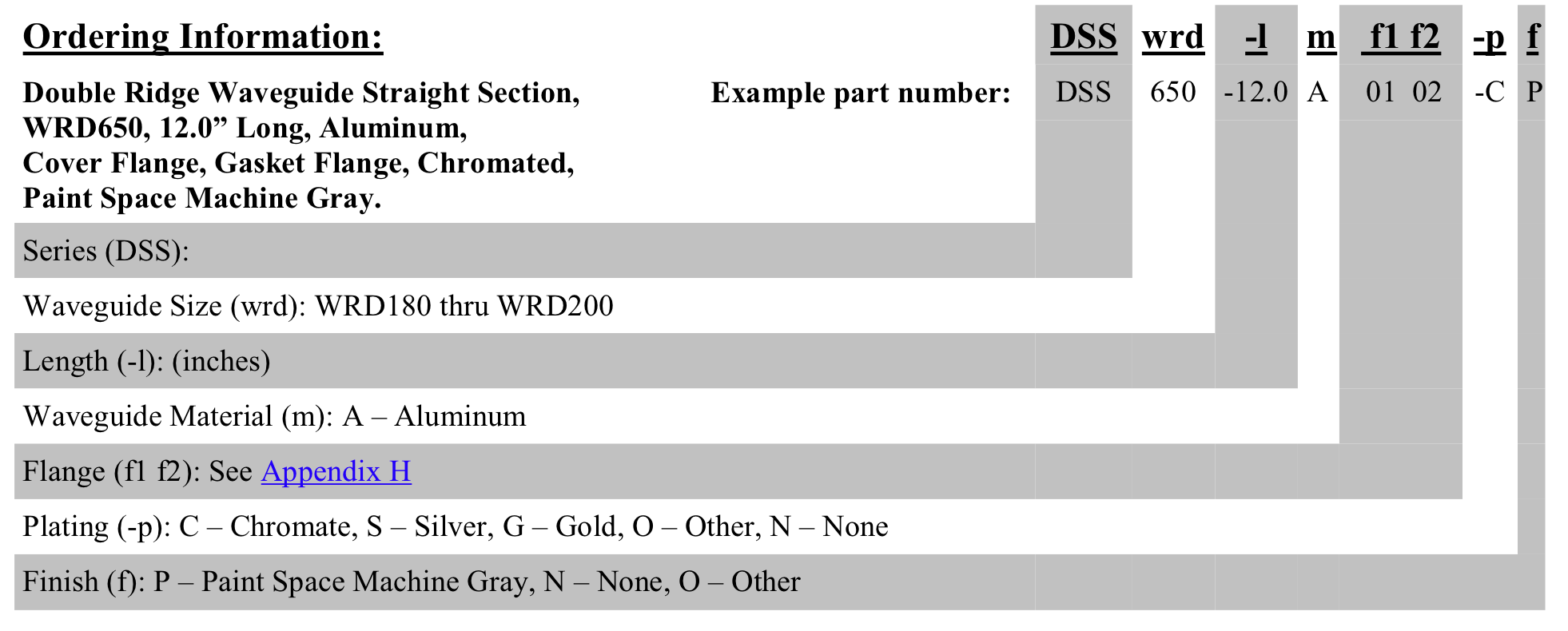

Ordering Information

Ordering Information

Double Ridge Waveguide Straight Assemblies
Example part number:
Double Ridge Waveguide Straight Section, WRD650, 12.0” Long, Aluminum, Cover Flange, Gasket Flange, Chromated, Paint Space Machine Gray.
GET A QUOTE
Series

DSS

Waveguide Size

WRD180 thru WRD200

Material

A – Aluminum

Plating

C – Chromate, S – Silver, G – Gold, O – Other, N – None

Finish

P – Paint Space Machine Gray, N – None, O – Other
