Double Ridge Waveguide To Coax Adapters
Space Machine custom fabricates a standard product line of double ridge waveguide to coax adapters covering waveguide sizes WRD180 thru WRD200. VSWR is 1.35:1 typical.
Models

Highlights
Space Machine custom fabricates a standard product line of double ridge waveguide to coax adapters covering waveguide sizes WRD180 thru WRD200. VSWR is 1.35:1 typical.
Additional sizes and configurations available upon request.

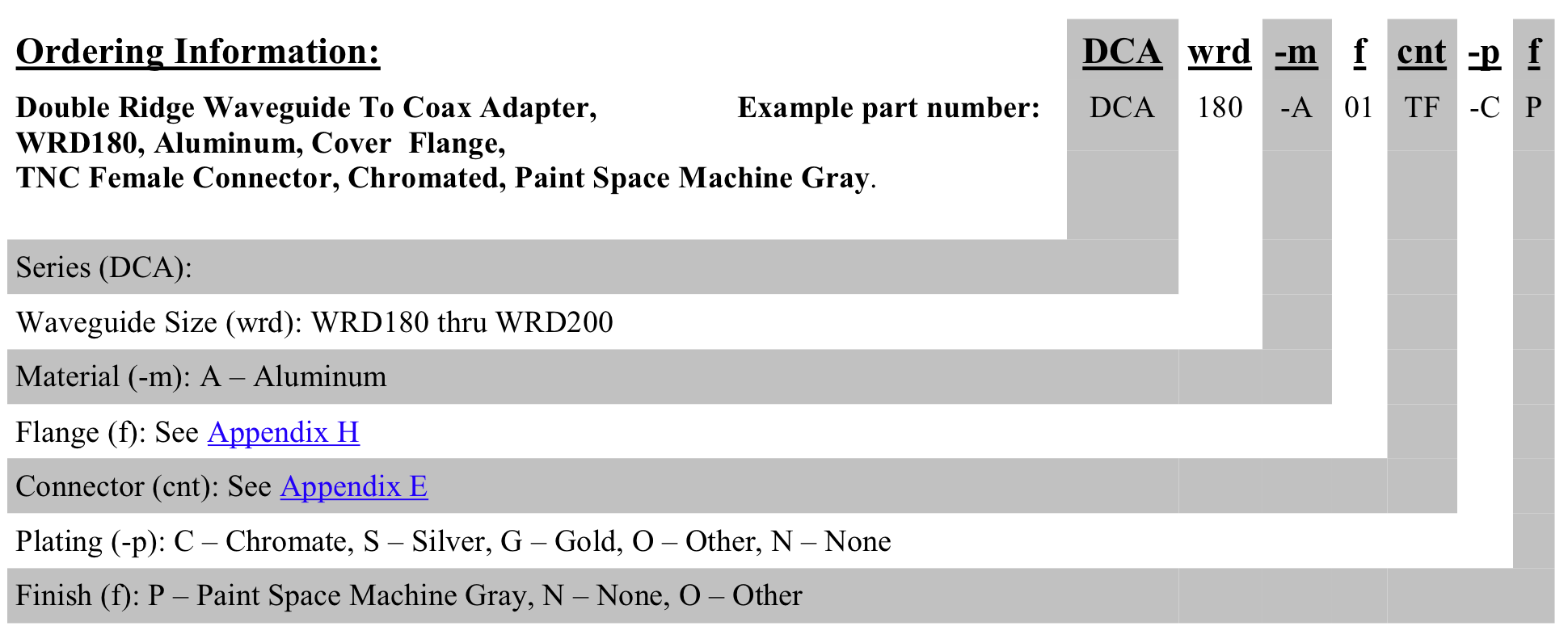

Ordering Information
Ordering Information
Double Ridge Waveguide To Coax Adapter, WRD180, Aluminum, Cover Flange, TNC Female Connector, Chromated, Paint Space Machine Gray.
Models | DCA110, DCA180, DCA200, DCA250, DCA350, DCA475, DCA500, DCA580, DCA650, DCA750 |
---|---|
WRD | 110, 180, 200, 250, 350, 475, 500, 580, 650, 750 |
Frequency (GHz) | 11.00 – 26.50, 18.00 – 40.00, 2.00 – 4.80, 2.60 – 7.80, 3.50 – 8.20, 4.75 – 11.00, 5.00 – 18.00, 5.80 – 16.00, 6.50 – 18.00, 7.50 – 18.00 |

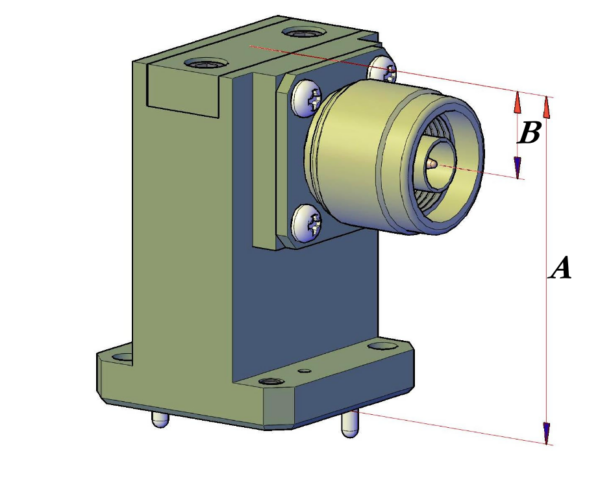

A | 1.00, 2.00, 2.50, 2.75, 3.00 |
B | 0.50, 0.75, 1.00, 1.25, 1.10 |
