Double Ridge Waveguide To Coax End Launch Adapters

Space Machine offers a standard product line of double ridge waveguide to coax end launch adapters covering sizes WRD750 thru WRD200.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

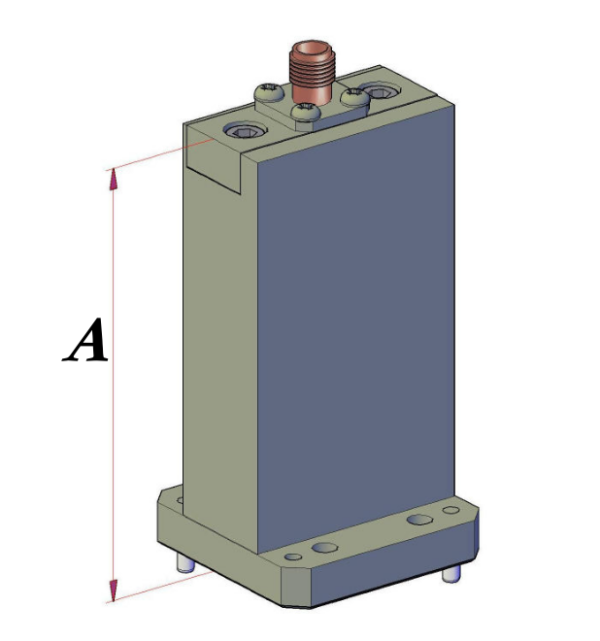

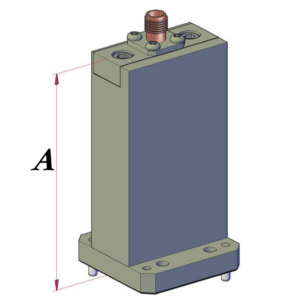

Space Machine offers a standard product line of double ridge waveguide to coax end launch adapters covering sizes WRD750 thru WRD200. VSWR is 1.50:1 max. Improved VSWR performance can be obtained over a reduced bandwidth. Space Machine’s End-Launch Adapters use a transition whose center conductor is structurally tied to the waveguide, for
excellent mechanical and thermal stability. Additional sizes and configurations available upon request.

Ordering Information

Models

  • Models: DCA200EL

  • WRD: 200

  • Frequency (GHz): 2.00 - 4.80

  • A: 9.00

  • Models: DCA250EL

  • WRD: 250

  • Frequency (GHz): 2.60 - 7.80

  • A: 7.00

  • Models: DCA350EL

  • WRD: 350

  • Frequency (GHz): 3.50 - 8.20

  • A: 5.50

  • Models: DCA475EL

  • WRD: 475

  • Frequency (GHz): 4.75 - 11.00

  • A: 4.50

  • Models: DCA500EL

  • WRD: 500

  • Frequency (GHz): 5.00 - 18.00

  • A: 3.25

  • Models: DCA580EL

  • WRD: 580

  • Frequency (GHz): 5.80 - 16.00

  • A: 3.00

  • Models: DCA650EL

  • WRD: 650

  • Frequency (GHz): 6.50 - 18.00

  • A: 2.75

  • Models: DCA750EL

  • WRD: 750

  • Frequency (GHz): 7.50 - 18.00

  • A: 2.75

Ordering Information

Double Ridge Waveguide To Coax End Launch Adapters

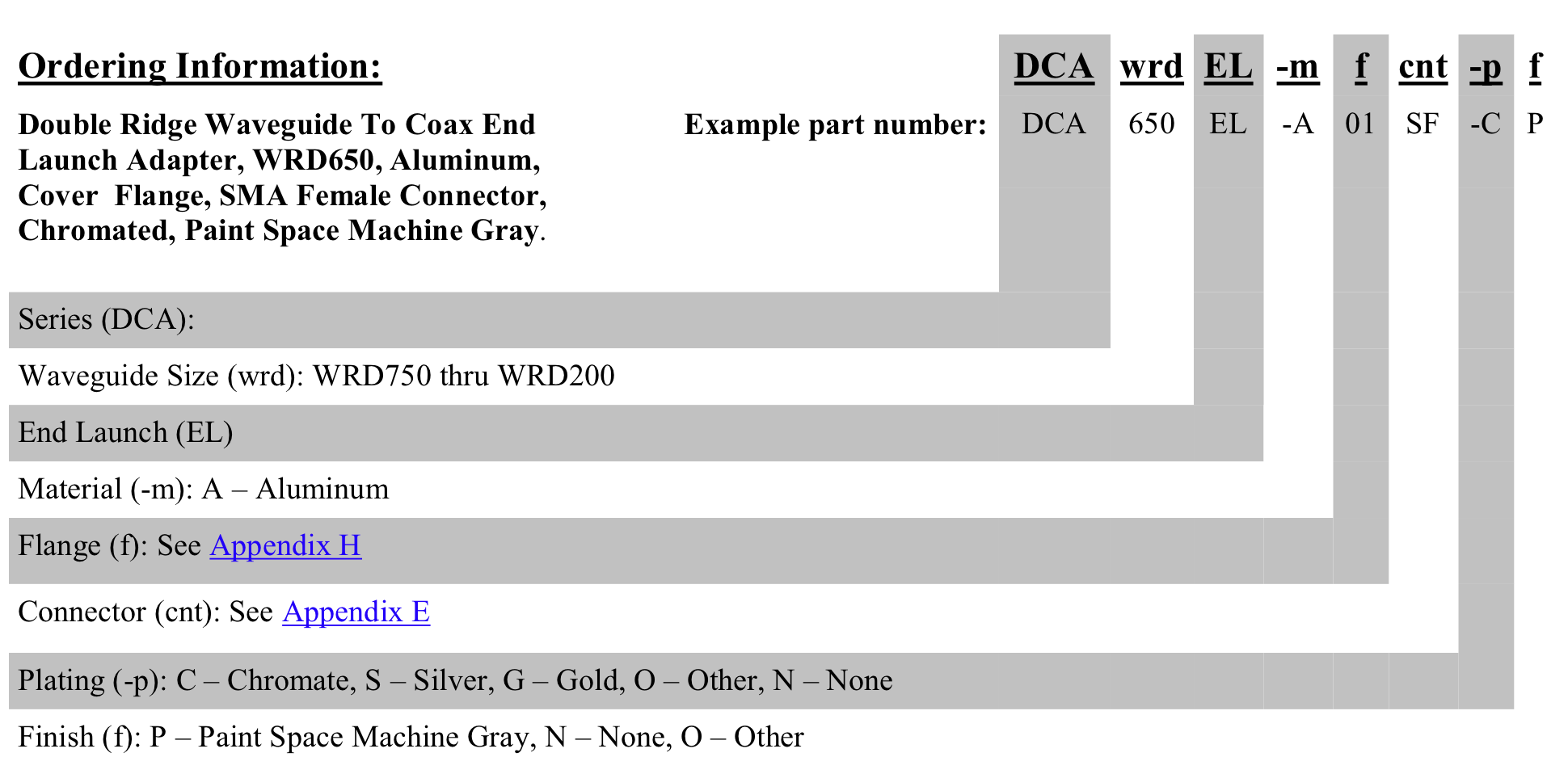

Example part number:
Double Ridge Waveguide To Coax End Launch Adapter, WRD650, Aluminum, Cover Flange, SMA Female Connector, Chromated, Paint Space Machine Gray.
GET A QUOTE
Models

DCA200EL, DCA250EL, DCA350EL, DCA475EL, DCA500EL, DCA580EL, DCA650EL, DCA750EL

WRD

200, 250, 350, 475, 500, 580, 650, 750

Frequency (GHz)

2.00 – 4.80, 2.60 – 7.80, 3.50 – 8.20, 4.75 – 11.00, 5.00 – 18.00, 5.80 – 16.00, 6.50 – 18.00, 7.50 – 18.00

A

2.75, 3.00, 3.25, 4.50, 5.50, 7.00, 9.00
