Millimeter Waveguide Assemblies

Space Machine offers a standard product line of millimeter waveguide assemblies.
Frequency band coverage from 18 to 220 GHz. For frequencies 40 GHz and higher, manufacture only, no testing capabilities above 40 GHz.
SME offers standard millimeter waveguide E– and H– plane bends with angles 30 deg., 45 deg., 60 deg. and 90 deg. The twists are supplied with angles of 45 deg. and 90 deg. The standard millimeter flange material is brass. Custom bends or twists are available upon request.
In addition, for easy installation and removal of attached pieces, Space Machine can supply millimeter waveguide assembly with captive screw kit.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of millimeter waveguide assemblies.
Frequency band coverage from 18 to 220 GHz. For frequencies 40 GHz and higher, manufacture only, no testing capabilities above 40 GHz.
SME offers standard millimeter waveguide E– and H– plane bends with angles 30 deg., 45 deg., 60 deg. and 90 deg. The twists are supplied with angles of 45 deg. and 90 deg. The standard millimeter flange material is brass. Custom bends or twists are available upon request.
In addition, for easy installation and removal of attached pieces, Space Machine can supply millimeter waveguide assembly with captive screw kit.

Ordering Information

Millimeter Waveguide Assemblies

Models

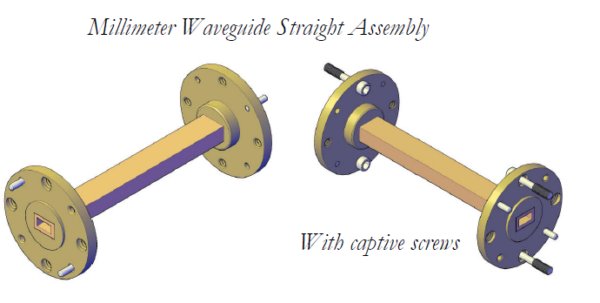

    Millimeter Waveguide Straight Assembly
    • Series: MWS (Millimeter Waveguide Straight Assy)

    Millimeter Waveguide Straight Assembly

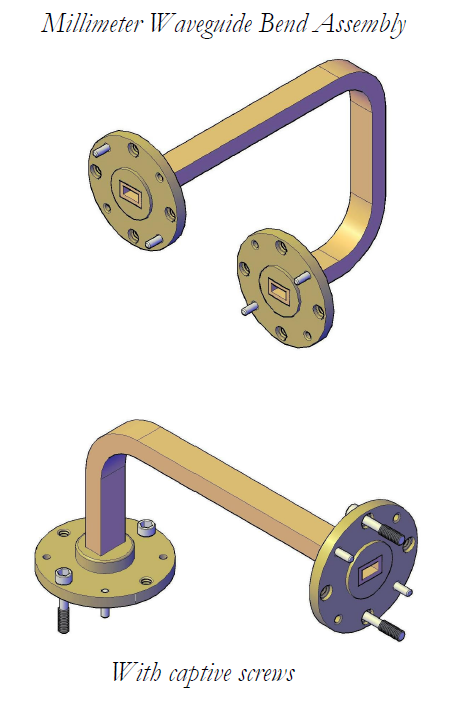

    • Series: MWB (Millimeter Waveguide Bend Assy)

    Millimeter Waveguide Straight Assembly

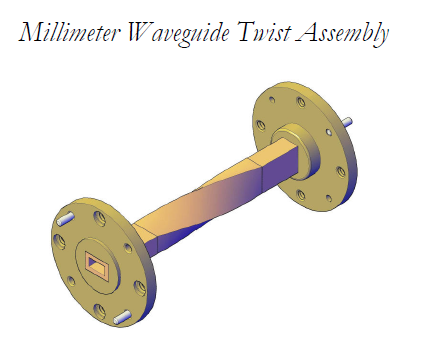

    • Series: MWT (Millimeter Waveguide Twist Assy)

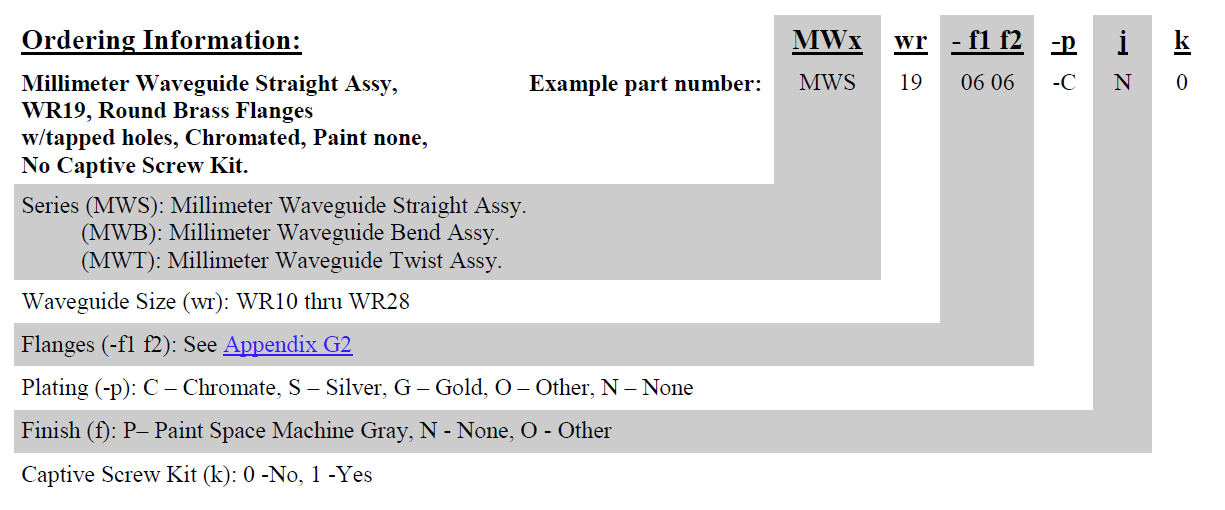

    Ordering Information

    Millimeter Waveguide Assemblies
    Example part number:
    Millimeter Waveguide Straight Assy,
    WR19, Round Brass Flanges
    w/tapped holes, Chromated, Paint none,
    No Captive Screw Kit.
    GET A QUOTE
    Series

    MWS (Millimeter Waveguide Straight Assy), MWB (Millimeter Waveguide Bend Assy), MWT (Millimeter Waveguide Twist Assy)

    Waveguide Size (wr)

    WR10 thru WR28

    Flanges (-f1 f2)

    06 06

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish (f)

    P– Paint Space Machine Gray, N – None, O – Other

    Captive Screw Kit (k)

    0 -No, 1 -Yes
