Rectangular Waveguide Branch Guide Couplers

Space Machine custom fabricates a standard product line of branch guide couplers covering waveguide sizes WR62 thru WR284. Inherently full band coupling is not very flat, but coupling over 25% bandwidth is held to ± 0.5dB. Directivity is 20dB minimum. Additional sizes and configurations are available upon request.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine custom fabricates a standard product line of branch guide couplers covering waveguide sizes WR62 thru WR284. Inherently full band coupling is not very flat, but coupling over 25% bandwidth is held to ± 0.5dB. Directivity is 20dB minimum. Additional sizes and configurations are available upon request.

Ordering Information

Rectangular Waveguide Branch Guide Couplers

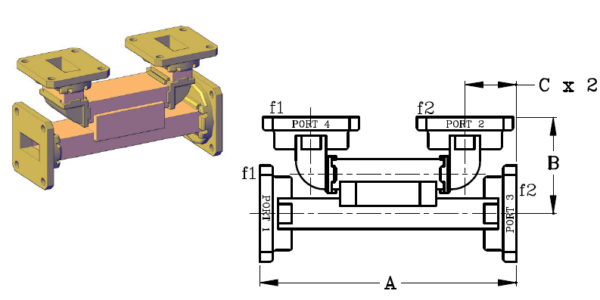

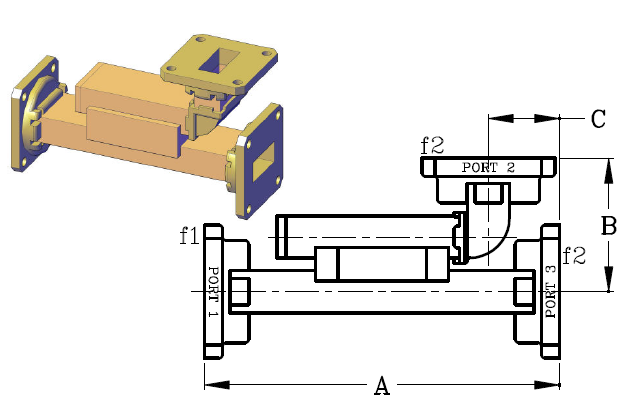

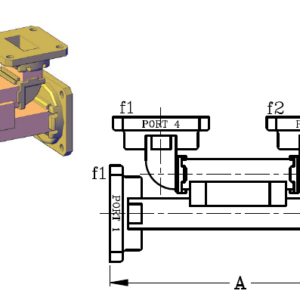

Models

    • Model: BGC62-

    • WR: 62

    • Frequency (GHz): 12.40 - 18.00

    • A: 4.00

    • B: 1.50

    • C: 0.75

    • Model: BGC75-

    • WR: 75

    • Frequency (GHz): 10.00 - 15.00

    • A: 4.00

    • B: 1.50

    • C: 0.75

    • Model: BGC90-

    • WR: 90

    • Frequency (GHz): 8.20 - 12.40

    • A: 6.00

    • B: 2.50

    • C: 1.00

    • Model: BGC102-

    • WR: 102

    • Frequency (GHz): 7.00 - 11.00

    • A: 7.00

    • B: 2.50

    • C: 1.00

    • Model: BGC112-

    • WR: 112

    • Frequency (GHz): 7.05 - 10.00

    • A: 8.00

    • B: 2.50

    • C: 1.00

    • Model: BGC137-

    • WR: 137

    • Frequency (GHz): 5.85 - 8.20

    • A: 10.00

    • B: 2.75

    • C: 1.50

    • Model: BGC159-

    • WR: 159

    • Frequency (GHz): 4.90 - 7.05

    • A: 10.00

    • B: 3.00

    • C: 2.00

    • Model: BGC187-

    • WR: 187

    • Frequency (GHz): 3.95 - 5.85

    • A: 11.00

    • B: 3.50

    • C: 2.00

    • Model: BGC229-

    • WR: 229

    • Frequency (GHz): 3.30 - 4.90

    • A: 12.00

    • B: 4.00

    • C: 2.50

    • Model: BGC284-

    • WR: 284

    • Frequency (GHz): 2.60 - 3.95

    • A: 12.00

    • B: 4.00

    • C: 3.00

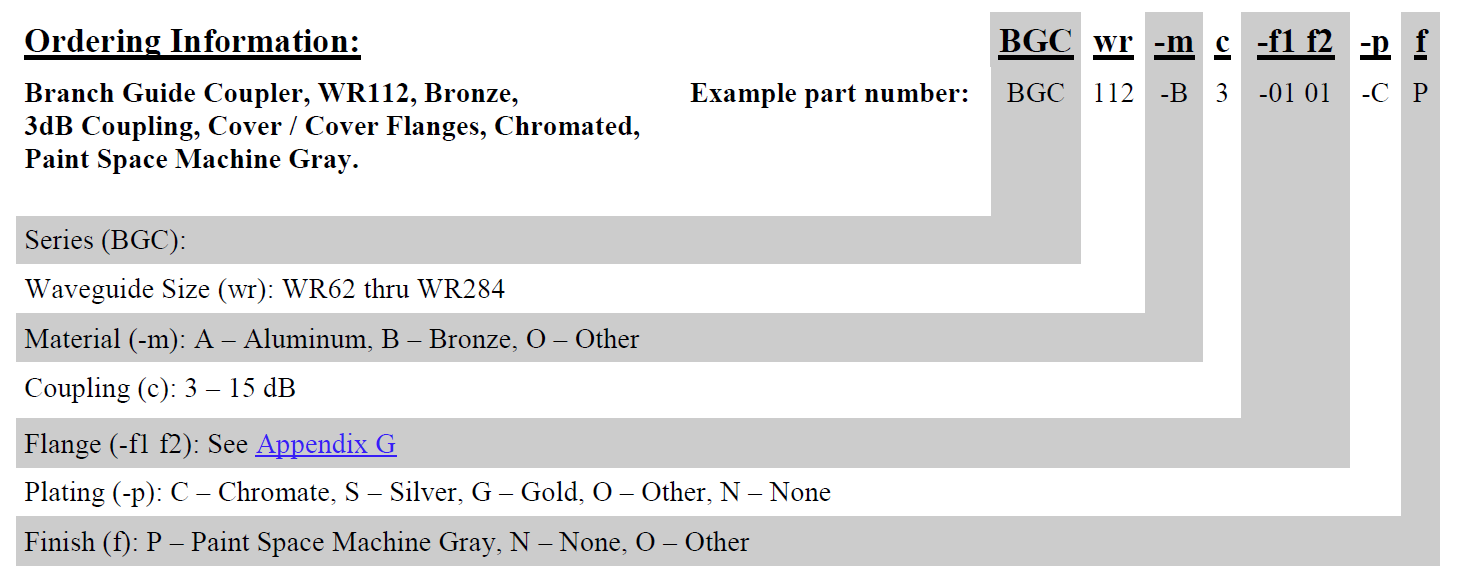

    Ordering Information

    Rectangular Waveguide Branch Guide Couplers
    Example part number:
    Branch Guide Coupler, WR112, Bronze,
    3dB Coupling, Cover / Cover Flanges, Chromated,
    Paint Space Machine Gray.
    GET A QUOTE
    Series

    BGC

    Model

    BGC62-, BGC75-, BGC90-, BGC102-, BGC112-, BGC137-, BGC159-, BGC187-, BGC229-, BGC284-

    Waveguide Size (wr)

    WR62 thru WR284

    Material (-m)

    A – Aluminum, B – Bronze, O – Other

    Coupling (c)

    3 – 15 dB

    Flange (-f1 f2)

    See Appendix G

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish (f)

    P – Paint Space Machine Gray, N – None, O – Other
