Rectangular Waveguide Circulators

Space Machine & Engineering offers a standard product line of rectangular waveguide ferrite Circulators covering wave-guide sizes WR62 thru WR284.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

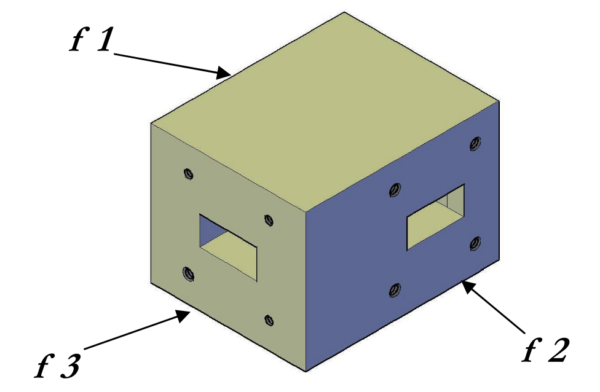

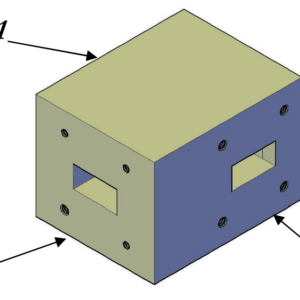

Space Machine & Engineering offers a standard product line of rectangular waveguide ferrite Circulators covering wave-guide sizes WR62 thru WR284. These Circulators are permanent magnet 3 port devices that use a Y-junction structure housed in standard rectangular waveguide. Greater isolation, better insertion loss and VSWR are achievable with reduced bandwidths. Please specify required bandwidth and pressurization requirements when ordering.

Ordering Information

Models

  • Models: WFC112

  • WR: 112

  • Frequency (GHz): 7.05 - 10.00

  • Isolation (dB): 18

  • Insertion Loss (dB) Max.: 0.4

  • VSWR: 1.30:1

  • Maximum Average Power (W): 600

  • Maximum Peak Power (KW): 350

  • Models: WFC137

  • WR: 137

  • Frequency (GHz): 5.85 - 8.20

  • Isolation (dB): 18

  • Insertion Loss (dB) Max.: 0.4

  • VSWR: 1.30:1

  • Maximum Average Power (W): 750

  • Maximum Peak Power (KW): 500

  • Models: WFC159

  • WR: 159

  • Frequency (GHz): 4.90 - 7.05

  • Isolation (dB): 18

  • Insertion Loss (dB) Max.: 0.4

  • VSWR: 1.30:1

  • Maximum Average Power (W): 1000

  • Maximum Peak Power (KW): 850

  • Models: WFC187

  • WR: 187

  • Frequency (GHz): 3.95 - 5.85

  • Isolation (dB): 18

  • Insertion Loss (dB) Max.: 0.4

  • VSWR: 1.30:1

  • Maximum Average Power (W): 1250

  • Maximum Peak Power (KW): 1000

  • Models: WFC284

  • WR: 284

  • Frequency (GHz): 2.60 - 3.95

  • Isolation (dB): 18

  • Insertion Loss (dB) Max.: 0.4

  • VSWR: 1.30:1

  • Maximum Average Power (W): 1500

  • Maximum Peak Power (KW): 1250

  • Models: WFC62

  • WR: 62

  • Frequency (GHz): 12.40 - 18.00

  • Isolation (dB): 15

  • Insertion Loss (dB) Max.: 0.5

  • VSWR: 1.40:1

  • Maximum Average Power (W): 150

  • Maximum Peak Power (KW): 75

  • Models: WFC75

  • WR: 75

  • Frequency (GHz): 10.00 - 15.00

  • Isolation (dB): 15

  • Insertion Loss (dB) Max.: 0.5

  • VSWR: 1.35:1

  • Maximum Average Power (W): 250

  • Maximum Peak Power (KW): 100

  • Models: WFC90

  • WR: 90

  • Frequency (GHz): 8.20 - 12.40

  • Isolation (dB): 18

  • Insertion Loss (dB) Max.: 0.4

  • VSWR: 1.35:1

  • Maximum Average Power (W): 400

  • Maximum Peak Power (KW): 150

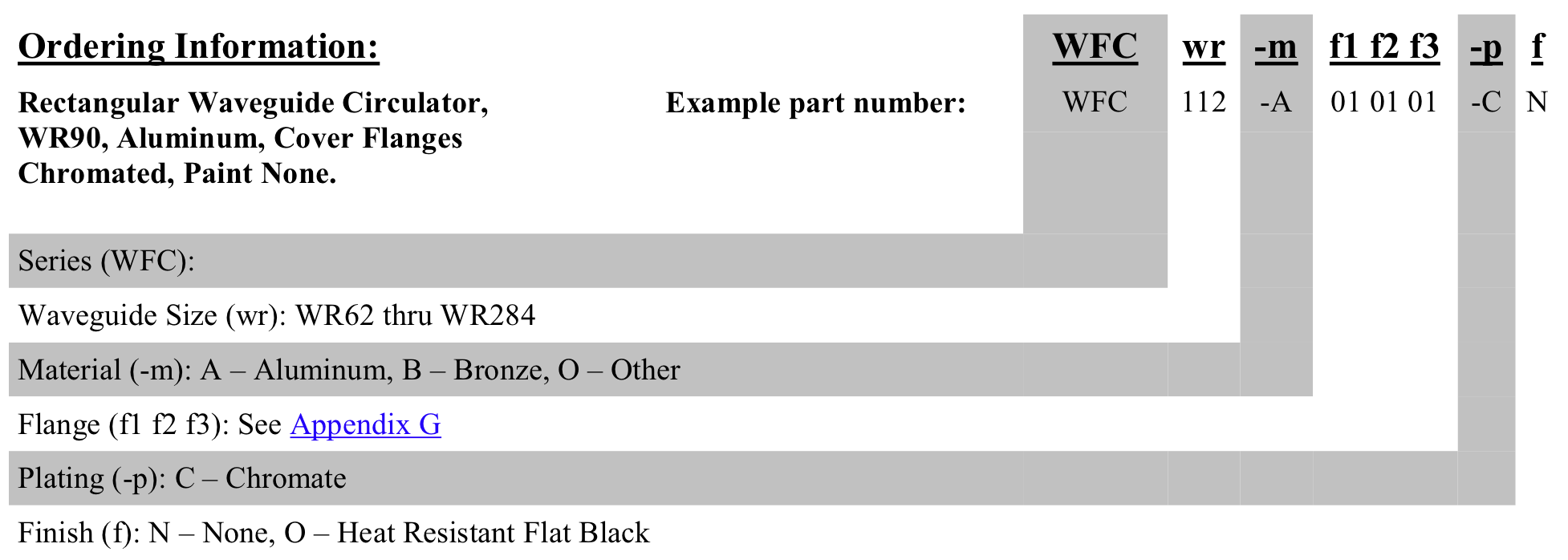

Ordering Information

Rectangular Waveguide Circulators
Example part number:
Rectangular Waveguide Circulator, WR90, Aluminum, Cover Flanges Chromated, Paint None.
GET A QUOTE
Models

WFC112, WFC137, WFC159, WFC187, WFC284, WFC62, WFC75, WFC90

WR

284, 187, 159, 137, 112, 90, 75, 62

Frequency (GHz)

10.00 – 15.00, 12.40 – 18.00, 2.60 – 3.95, 3.95 – 5.85, 4.90 – 7.05, 5.85 – 8.20, 7.05 – 10.00, 8.20 – 12.40

Isolation (dB)

18, 15

Insertion Loss (dB) Max.

0.4, 0.5

VSWR

1.30:1, 1.35:1, 1.40:1

Maximum Average Power (W)

1500, 1250, 1000, 750, 600, 400, 250, 150

Maximum Peak Power (KW)

1250, 1000, 850, 500, 350, 150, 100, 75
