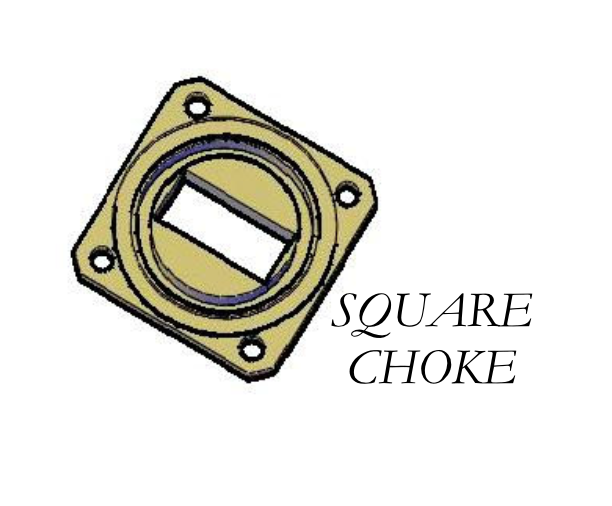

Rectangular Waveguide Flanges

Space Machine offers a standard product line of flanges covering waveguide sizes WR10 thru WR650. Additional material, sizes and configurations are available upon request.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of flanges covering waveguide sizes WR10 thru WR650. Additional material, sizes and configurations are available upon request. See appendix I for flange part number conversion chart.

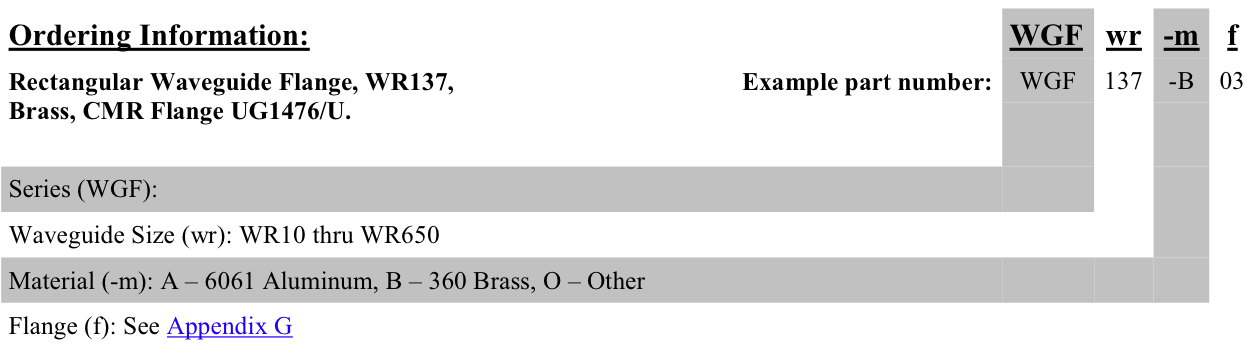

Ordering Information

Rectangular Waveguide Flanges

Ordering Information

Rectangular Waveguide Flanges
Example part number:

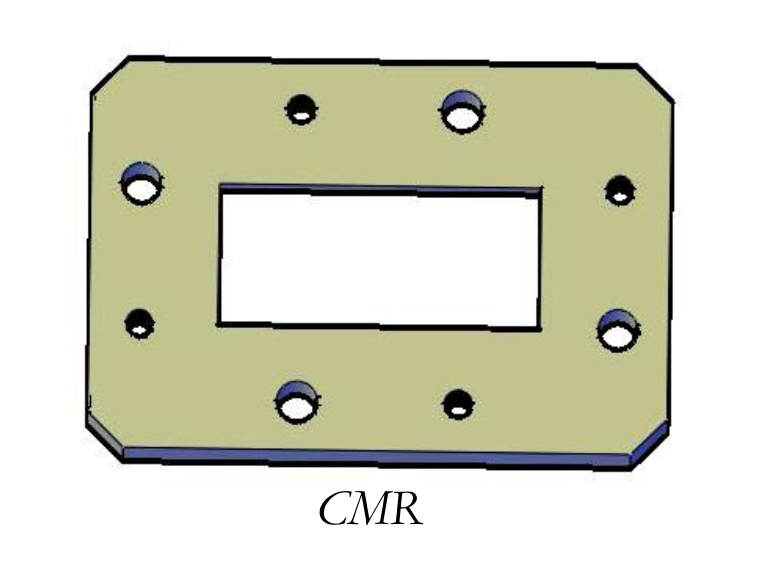

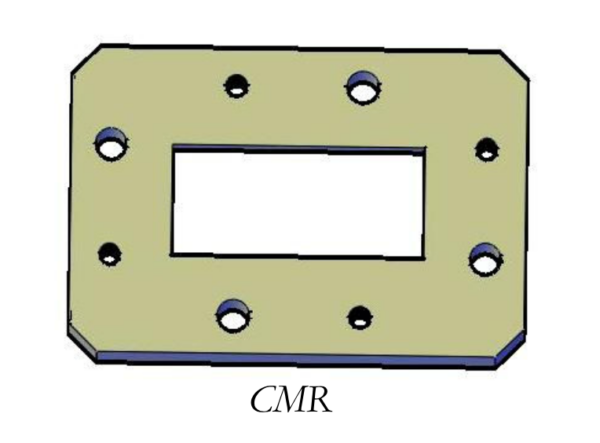

Rectangular Waveguide Flange, WR137, Brass, CMR Flange UG1476/U.
GET A QUOTE
Series

WGF

Waveguide Size (wr)

WR10 thru WR650

Material (-m)

A – 6061 Aluminum, B – 360 Brass, O – Other

Flange (f)

See Appendix G
