Rectangular Waveguide Flexible & Flexible – Twistable Assemblies

Space Machine offers a standard product line of flexible and flexible – twistable rectangular waveguide covering waveguide sizes WR10 thru WR650. The standard waveguide material is silver-clad brass.
See appendixes K and L for specifications.

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of flexible and flexible – twistable rectangular waveguide covering waveguide sizes WR10 thru WR650. The standard waveguide material is silver-clad brass.
See appendixes K and L for specifications.

Ordering Information

Rectangular Waveguide Flexible & Flexible – Twistable Assemblies



Models

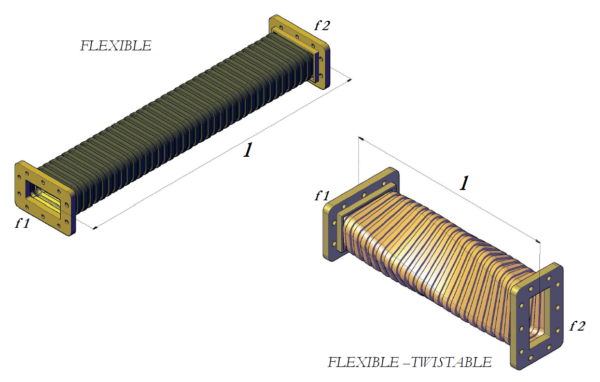

    Rectangular Waveguide Flexible & Flexible – Twistable Assemblies
    • Series: WFL (Flexible)

    Rectangular Waveguide Flexible & Flexible – Twistable Assemblies
    • Series: WFT (Flexible – Twistable)

    Ordering Information

    Rectangular Waveguide Flexible & Flexible – Twistable Assemblies
    Example part number:
    Flexible – Twistable Waveguide, WR284,
    12“ Long, Cover / Cover Brass
    Flanges, Neoprene Jacket.
    GET A QUOTE
    Series

    WFL (Flexible), WFT (Flexible – Twistable)

    Waveguide Size (wr)

    WR22 thru WR650

    Flange material (m)

    A – Aluminum, B – Brass, O – Other

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Jacket (j)

    N – Neoprene, S – Silicone, V – Vinyl, P – Polysulfide
