Rectangular Waveguide Formed E & H Plane Bend Assemblies

Space Machine offers a standard product line of formed E and H plane bend assemblies covering waveguide sizes WR10 thru WR430. Degree of bend, leg lengths and flange type are made to customer specifications. VSWR is less than 1.10:1 over the full waveguide band. See appendix O for inside bend radius.
wr* – add HW, RH or TW to the part number if ordering heavy wall waveguide tubing (HW), reduced height waveguide tubing (RH) or thin wall waveguide tubing (TW). See appendix A for waveguide physical dimensions.
Example: 90FEB75TH-6.0A0101-NN

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of formed E and H plane bend assemblies covering waveguide sizes WR10 thru WR430. Degree of bend, leg lengths and flange type are made to customer specifications. VSWR is less than 1.10:1 over the full waveguide band. See appendix O for inside bend radius.
wr* – add HW, RH or TW to the part number if ordering heavy wall waveguide tubing (HW), reduced height waveguide tubing (RH) or thin wall waveguide tubing (TW). See appendix A for waveguide physical dimensions.
Example: 90FEB75TH-6.0A0101-NN

Ordering Information



Rectangular Waveguide Formed E & H Plane Bend Assemblies

Models

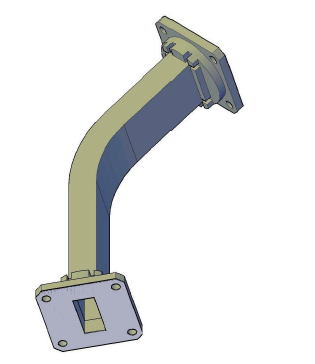

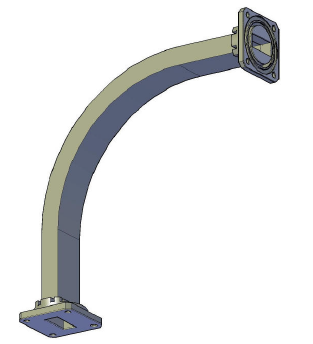

    Rectangular Waveguide Formed H Plane 1
    • Series: FEB (E – Plane)

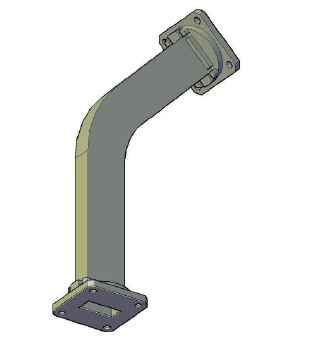

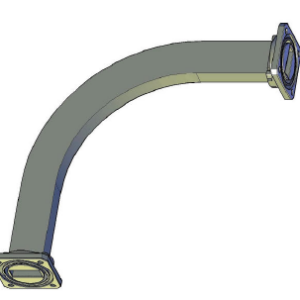

    Rectangular Waveguide Formed H Plane 1
    • Series: FHB (H – Plane)

    Ordering Information

    Rectangular Waveguide Formed E & H Plane Bend Assemblies

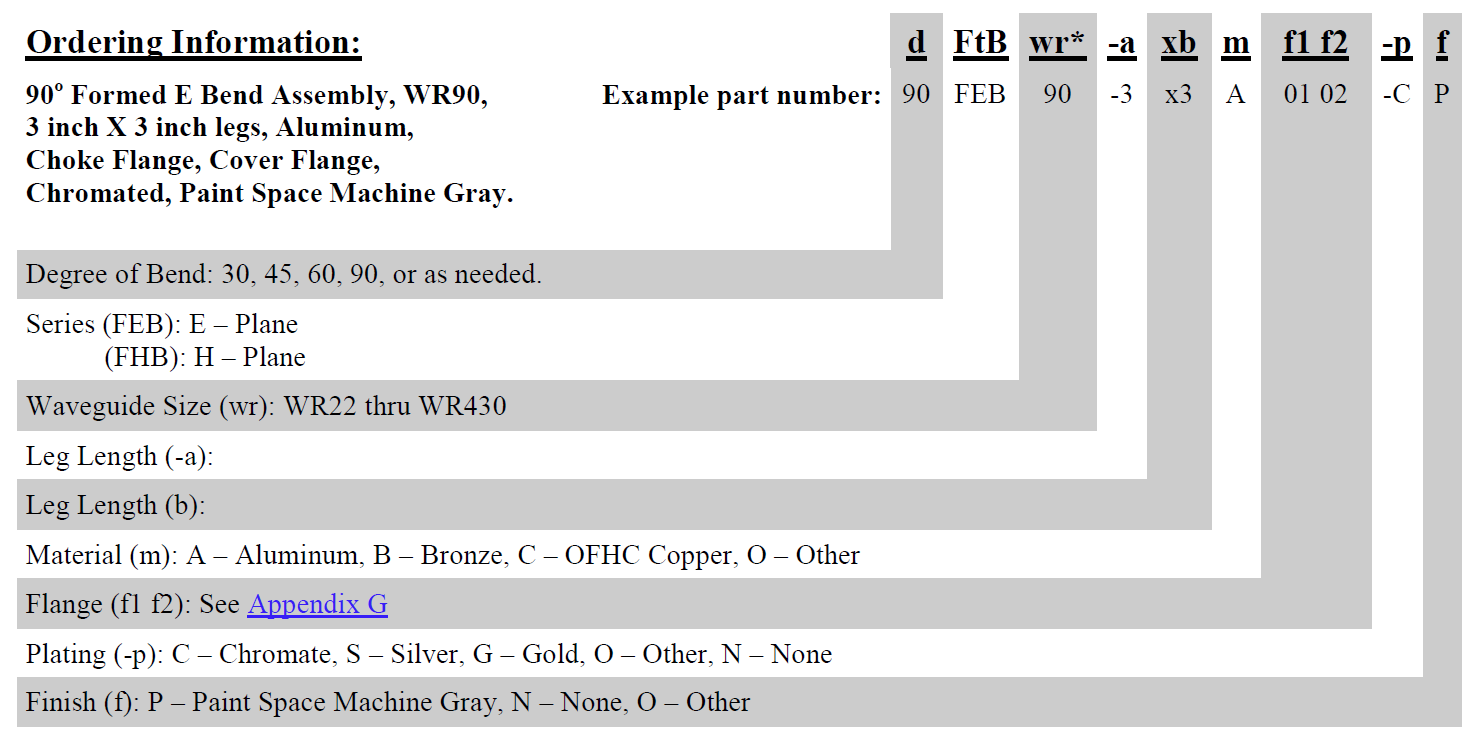

    Example part number:
    90o Formed E Bend Assembly, WR90,
    3 inch X 3 inch legs, Aluminum,
    Choke Flange, Cover Flange,
    Chromated, Paint Space Machine Gray.
    GET A QUOTE
    Degree of Bend

    30, 45, 60, 90, as needed

    Series

    FEB (E – Plane), FHB (H – Plane)

    Waveguide Size (wr)

    WR22 thru WR430

    Material (m)

    A – Aluminum, B – Bronze, C – OFHC Copper, O – Other

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish (f)

    P – Paint Space Machine Gray, N – None, O – Other
