Rectangular Waveguide High Power Fixed Attenuator

Space Machine offers a standard product line of high power fixed attenuators covering waveguide sizes WR28 thru WR284.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of high power fixed attenuators covering waveguide sizes WR28 thru WR284. VSWR is 1.15:1. Flatness is held to + 1.0dB maximum over the full waveguide band. Additional sizes and configurations are available upon request.

Ordering Information

Models

  • Models: WAFH102

  • WR: 102

  • Frequency (GHz): 7.00 - 11.00

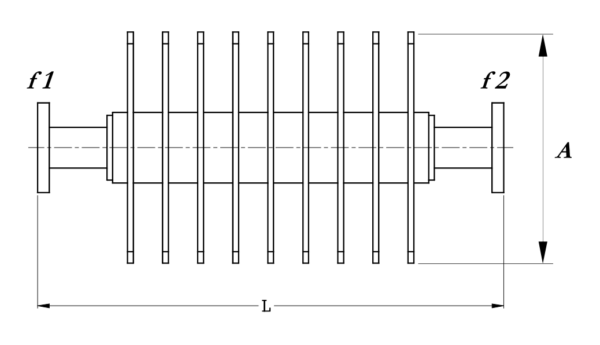

  • Length (L) - UP TO 10 dB: 8.50

  • Length (L) - UP TO 30 dB: 21.00

  • A: 4.00

  • Max Avg Power (Watts): 750

  • Models: WAFH112

  • WR: 112

  • Frequency (GHz): 7.05 - 10.00

  • Length (L) - UP TO 10 dB: 9.00

  • Length (L) - UP TO 30 dB: 22.00

  • A: 5.00

  • Max Avg Power (Watts): 850

  • Models: WAFH137

  • WR: 137

  • Frequency (GHz): 5.85 - 8.20

  • Length (L) - UP TO 10 dB: 10.00

  • Length (L) - UP TO 30 dB: 24.00

  • A: 5.00

  • Max Avg Power (Watts): 1000

  • Models: WAFH159

  • WR: 159

  • Frequency (GHz): 4.90 - 7.05

  • Length (L) - UP TO 10 dB: 11.00

  • Length (L) - UP TO 30 dB: 26.00

  • A: 6.00

  • Max Avg Power (Watts): 1250

  • Models: WAFH187

  • WR: 187

  • Frequency (GHz): 3.95 - 5.85

  • Length (L) - UP TO 10 dB: 13.00

  • Length (L) - UP TO 30 dB: 28.00

  • A: 6.00

  • Max Avg Power (Watts): 1500

  • Models: WAFH229

  • WR: 229

  • Frequency (GHz): 3.30 - 4.90

  • Length (L) - UP TO 10 dB: 14.00

  • Length (L) - UP TO 30 dB: 30.00

  • A: 8.00

  • Max Avg Power (Watts): 1650

  • Models: WAFH28

  • WR: 28

  • Frequency (GHz): 26.50 - 40.00

  • Length (L) - UP TO 10 dB: 6.00

  • Length (L) - UP TO 30 dB: 12.00

  • A: 3.00

  • Max Avg Power (Watts): 200

  • Models: WAFH284

  • WR: 284

  • Frequency (GHz): 2.60 - 3.95

  • Length (L) - UP TO 10 dB: 15.00

  • Length (L) - UP TO 30 dB: 32.00

  • A: 8.00

  • Max Avg Power (Watts): 2000

  • Models: WAFH42

  • WR: 42

  • Frequency (GHz): 18.00 - 26.50

  • Length (L) - UP TO 10 dB: 6.00

  • Length (L) - UP TO 30 dB: 12.00

  • A: 3.00

  • Max Avg Power (Watts): 350

  • Models: WAFH51

  • WR: 51

  • Frequency (GHz): 15.00 - 22.00

  • Length (L) - UP TO 10 dB: 6.50

  • Length (L) - UP TO 30 dB: 13.00

  • A: 3.00

  • Max Avg Power (Watts): 400

  • Models: WAFH62

  • WR: 62

  • Frequency (GHz): 12.40 - 18.00

  • Length (L) - UP TO 10 dB: 7.00

  • Length (L) - UP TO 30 dB: 18.00

  • A: 3.00

  • Max Avg Power (Watts): 500

  • Models: WAFH75

  • WR: 75

  • Frequency (GHz): 10.00 - 15.00

  • Length (L) - UP TO 10 dB: 8.00

  • Length (L) - UP TO 30 dB: 18.00

  • A: 3.00

  • Max Avg Power (Watts): 550

  • Models: WAFH90

  • WR: 75

  • Frequency (GHz): 10.00 - 15.00

  • Length (L) - UP TO 10 dB: 8.00

  • Length (L) - UP TO 30 dB: 18.00

  • A: 3.00

  • Max Avg Power (Watts): 550

Ordering Information

Rectangular Waveguide High Power Fixed Attenuator
Example part number:
Waveguide High Power Fixed Attenuator, WR112, 10dB Attenuation, Bronze, Cover / Cover Flanges, Chromated, Paint Heat Resistant Flat Black.
GET A QUOTE
Models

WAFH102, WAFH112, WAFH137, WAFH159, WAFH187, WAFH229, WAFH28, WAFH284, WAFH42, WAFH51, WAFH62, WAFH75, WAFH90

WR

28, 42, 51, 62, 75, 90, 102, 112, 137, 159, 187, 229, 284

Frequency (GHz)

10.00 – 15.00, 12.40 – 18.00, 15.00 – 22.00, 18.00 – 26.50, 2.60 – 3.95, 26.50 – 40.00, 3.30 – 4.90, 3.95 – 5.85, 4.90 – 7.05, 5.85 – 8.20, 7.00 – 11.00, 7.05 – 10.00, 8.20 – 12.40

Length (L) - UP TO 10 dB

6.00, 6.50, 7.00, 8.00, 8.50, 9.00, 10.00, 11.00, 13.00, 14.00, 15.00

Length (L) - UP TO 30 dB

12.00, 13.00, 18.00, 20.00, 21.00, 22.00, 24.00, 26.00, 28.00, 30.00, 32.00

A

3.00, 4.00, 5.00, 6.00, 8.00

Max Avg Power (Watts)

200, 350, 400, 500, 550, 700, 750, 850, 1000, 1250, 1500, 1650, 2000
