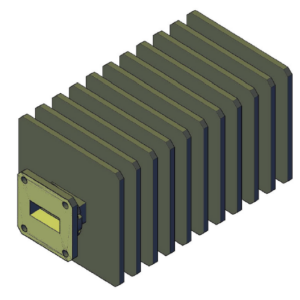

Rectangular Waveguide Medium Power Termination
Space Machine offers a standard product line of medium power terminations covering waveguide sizes WR28 thru WR430.
VSWR is 1.10:1 maximum over the full waveguide bandwidth.
Additional sizes and configurations are available upon request.
Models
Download Technical Specifications Highlights
Space Machine offers a standard product line of medium power terminations covering waveguide sizes WR28 thru WR430.
VSWR is 1.10:1 maximum over the full waveguide bandwidth.
Additional sizes and configurations are available upon request.
Ordering Information
Ordering Information
Rectangular Waveguide Medium Power Termination

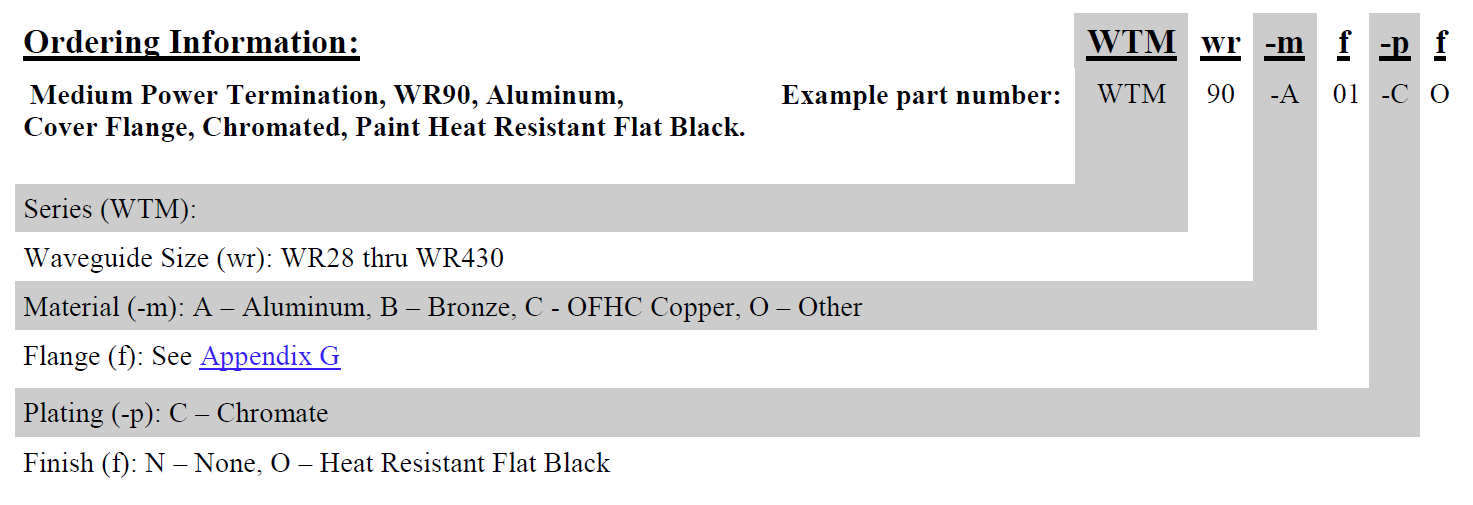

Example part number:
Medium Power Termination, WR90, Aluminum,
Cover Flange, Chromated, Paint Heat Resistant Flat Black.
GET A QUOTEMedium Power Termination, WR90, Aluminum,
Cover Flange, Chromated, Paint Heat Resistant Flat Black.

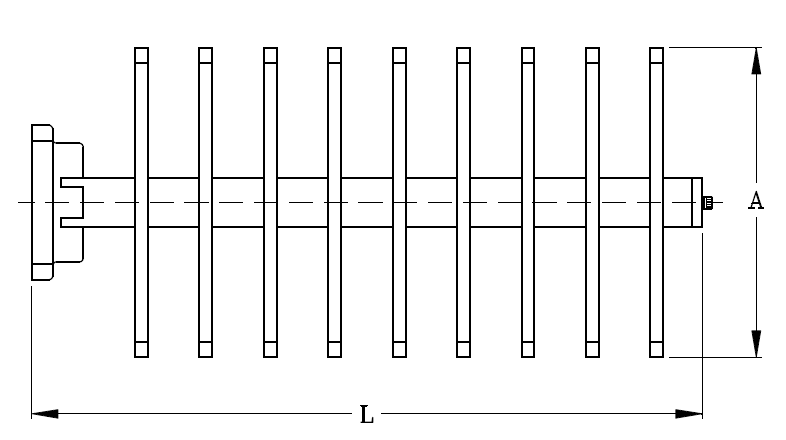

| Models | WTM102, WTM112, WTM137, WTM159, WTM187, WTM229, WTM28, WTM284, WTM34, WTM340, WTM42, WTM430, WTM51, WTM62, WTM75, WTM90 |
|---|---|
| WR | 102, 112, 137, 159, 187, 229, 28, 284, 34, 340, 42, 430, 51, 62, 75, 90 |
| Frequency (GHz) | 1.70 – 2.60, 10.00 – 15.00, 12.40 – 18.00, 15.00 – 22.00, 18.00 – 26.50, 2.20 – 3.30, 2.60 – 3.95, 22.00 – 33.00, 26.50 – 40.00, 3.30 – 4.90, 3.95 – 5.85, 4.90 – 7.05, 5.85 – 8.20, 7.00 – 11.00, 7.05 – 10.00, 8.20 – 12.40 |
| Avg. Power (W) | 100, 1000, 1150, 1300, 150, 175, 250, 275, 325, 450, 50, 625, 75, 750, 90, 900 |
| A | 2.25, 2.50, 3.00, 3.25, 3.50, 4.00, 4.50, 5.00, 6.00, 7.00, 8.00 |
| L | 10.00, 11.50, 13.00, 14.00, 15.00, 5.00, 5.50, 6.00, 8.00, 9.00 |
| Material (-m) | A – Aluminum, B – Bronze, C – OFHC Copper, O – Other, A – Aluminum, B – Bronze, C – OFHC Copper, O – Other |
| Flange (f) | See Appendix G |
| Plating (-p) | C – Chromate |
| Finish (f) | N – None, O – Heat Resistant Flat Black, N – None, O – Heat Resistant Flat Black |
