Rectangular Waveguide Mitered E & H Plane Bend Assemblies

Space Machine offers a standard product line of mitered E and H plane mitered bends covering the waveguide sizes WR28 thru WR650. VSWR is less than 1.10:1 over the full waveguide band.
wr* – add HW, RH or TW to the part number if ordering heavy wall waveguide tubing (HW), reduced height waveguide tubing (RH) or thin wall waveguide tubing (TW). See appendix A for waveguide physical dimensions.
Example: 90MBE284HW-6.0X6.0A0101-CP

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of mitered E and H plane mitered bends covering the waveguide sizes WR28 thru WR650. VSWR is less than 1.10:1 over the full waveguide band.
wr* – add HW, RH or TW to the part number if ordering heavy wall waveguide tubing (HW), reduced height waveguide tubing (RH) or thin wall waveguide tubing (TW). See appendix A for waveguide physical dimensions.
Example: 90MBE284HW-6.0X6.0A0101-CP

Ordering Information



Rectangular Waveguide Mitered E & H Plane Bend Assemblies

Models

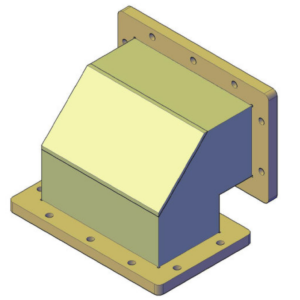

    Rectangular Waveguide Mitered E Plane
    • Series: MBE (E – Plane)

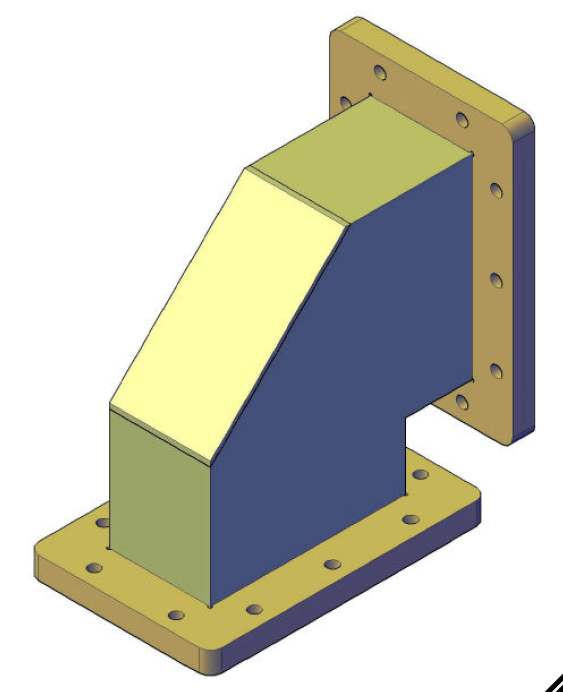

    Rectangular Waveguide Mitered E Plane
    • Series: MBH (H – Plane)

    Ordering Information

    Rectangular Waveguide Mitered E & H Plane Bend Assemblies
    Example part number:
    90o Mitered bend, E-Plane, WR430,
    6 inch X 6 inch, Bronze,
    CPRG / CPRF Flanges Socket type,
    Chromated, No paint.
    GET A QUOTE
    Degree of Bend

    90

    Series

    MBE (E – Plane), MBH (H – Plane)

    Waveguide Size (wr)

    WR28 thru WR650

    Leg Length (-a)

    -6

    Leg Length (b)

    x6

    Material (m)

    A – Aluminum, B – Bronze, O – Other

    Flanges (f1 f2)

    04 05

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish (f)

    P – Paint Space Machine Gray, N – None, O – Other
