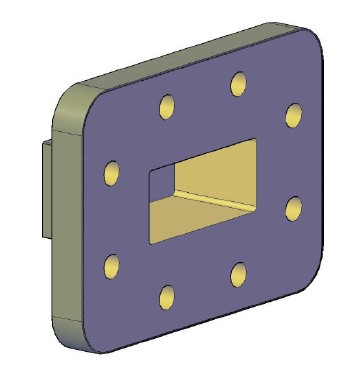

Rectangular Waveguide Offset Shorts

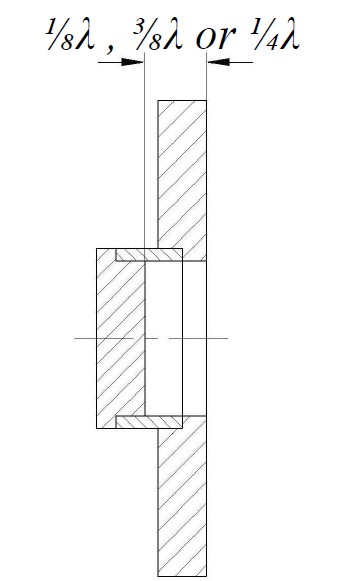

Space Machine offers a standard product line of fabricated rectangular waveguide offset shorts covering sizes WR22 thru WR975. Standard product length of offset is 1/8, 3/8 and 1/4 wavelengths. Other lengths available upon request.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of fabricated rectangular waveguide offset shorts covering sizes WR22 thru WR975. Standard product length of offset is 1/8, 3/8 and 1/4 wavelengths. Other lengths available upon request.

Ordering Information

Waveguide Offset Short

Models

Waveguide Offset Short Square
  • Models: WOS975-

  • Waveguide Size (wr): 975

  • Frequency (GHz): 0.75 - 1.12

Waveguide Offset Short Square
  • Models: WOS770-

  • Waveguide Size (wr): 770

  • Frequency (GHz): 0.96 - 1.45

Waveguide Offset Short Square
  • Models: WOS650-

  • Waveguide Size (wr): 650

  • Frequency (GHz): 1.12 - 1.70

Waveguide Offset Short Square
  • Models: WOS510-

  • Waveguide Size (wr): 510

  • Frequency (GHz): 1.45 - 2.20

Waveguide Offset Short Square
  • Models: WOS430-

  • Waveguide Size (wr): 430

  • Frequency (GHz): 1.70 - 2.60

Waveguide Offset Short Square
  • Models: WOS340-

  • Waveguide Size (wr): 340

  • Frequency (GHz): 2.20 - 3.30

Waveguide Offset Short Square
  • Models: WOS284-

  • Waveguide Size (wr): 284

  • Frequency (GHz): 2.60 – 3.95

Waveguide Offset Short Square
  • Models: WOS229-

  • Waveguide Size (wr): 229

  • Frequency (GHz): 3.30 – 4.90

Waveguide Offset Short Square
  • Models: WOS187-

  • Waveguide Size (wr): 187

  • Frequency (GHz): 3.95 – 5.85

Waveguide Offset Short Square
  • Models: WOS159-

  • Waveguide Size (wr): 159

  • Frequency (GHz): 4.90 – 7.05

Waveguide Offset Short Square
  • Models: WOS137-

  • Waveguide Size (wr): 137

  • Frequency (GHz): 5.85 – 8.20

Waveguide Offset Short Square
  • Models: WOS112-

  • Waveguide Size (wr): 112

  • Frequency (GHz): 7.05 – 10.00

Waveguide Offset Short Square
  • Models: WOS102-

  • Waveguide Size (wr): 102

  • Frequency (GHz): 7.00 – 11.00

Waveguide Offset Short Square
  • Models: WOS90-

  • Waveguide Size (wr): 90

  • Frequency (GHz): 8.20 – 12.40

Waveguide Offset Short Square
  • Models: WOS75-

  • Waveguide Size (wr): 75

  • Frequency (GHz): 10.00 - 15.00

Waveguide Offset Short Square
  • Models: WOS62-

  • Waveguide Size (wr): 62

  • Frequency (GHz): 12.40 - 18.00

Waveguide Offset Short Square
  • Models: WOS51-

  • Waveguide Size (wr): 51

  • Frequency (GHz): 15.00 - 22.00

Waveguide Offset Short Square
  • Models: WOS42-

  • Waveguide Size (wr): 42

  • Frequency (GHz): 18.00 - 26.50

Waveguide Offset Short Square
  • Models: WOS34-

  • Waveguide Size (wr): 34

  • Frequency (GHz): 22.00 - 33.00

Waveguide Offset Short Square
  • Models: WOS28-

  • Waveguide Size (wr): 28

  • Frequency (GHz): 26.50 - 40.00

Waveguide Offset Short Square
  • Models: WOS22-

  • Waveguide Size (wr): 22

  • Frequency (GHz): 33.00 - 50.00

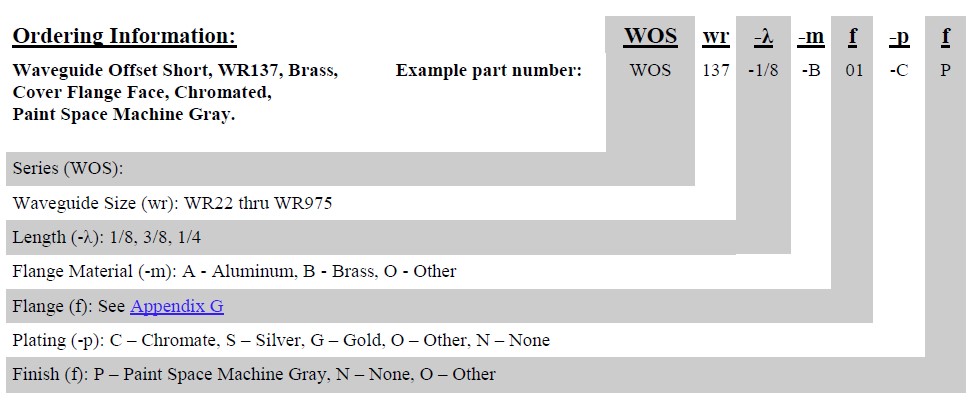

Ordering Information

Rectangular Waveguide Offset Shorts
Example part number:
Waveguide Offset Short, WR137, Brass,
Cover Flange Face, Chromated,
Paint Space Machine Gray.
GET A QUOTE
Models

WOS102-, WOS112-, WOS137-, WOS159-, WOS187-, WOS22-, WOS229-, WOS28-, WOS284-, WOS34-, WOS340-, WOS42-, WOS430-, WOS51-, WOS510-, WOS62-, WOS650-, WOS75-, WOS770-, WOS90-, WOS975-

Waveguide Size (wr)

22, 28, 34, 42, 51, 62, 75, 90, 102, 112, 137, 159, 187, 229, 284, 340, 430, 510, 650, 770, 975

Frequency (GHz)

0.75 – 1.12, 0.96 – 1.45, 1.12 – 1.70, 1.45 – 2.20, 1.70 – 2.60, 10.00 – 15.00, 12.40 – 18.00, 15.00 – 22.00, 18.00 – 26.50, 2.20 – 3.30, 2.60 – 3.95, 22.00 – 33.00, 26.50 – 40.00, 3.30 – 4.90, 3.95 – 5.85, 33.00 – 50.00, 4.90 – 7.05, 5.85 – 8.20, 7.00 – 11.00, 7.05 – 10.00, 8.20 – 12.40

Length

1/4, 1/8, 3/8

Flange Material (-m)

A – Aluminum, B – Brass, O – Other

Plating (-p)

C – Chromate, S – Silver, G – Gold, O – Other, N – None

Finish (f)

P – Paint Space Machine Gray, N – None, O – Other
