Rectangular Waveguide Pressure Adapter
Space Machine offers a standard product line of pressure adapters covering waveguide sizes WR28 thru WR430.
VSWR is less than 1.10:1 over the full waveguide band. 15 psi capacity gauge is standard. If other than 15 psi capacity is required, please specify when ordering.
Different types of pressure fittings available in standard SME pressure units, such as Schrader Valve, Flared Compression Fitting, Pipe Threads, or Barbed Fitting.
Additional sizes and configurations are available upon request.
Models
Download Technical Specifications Highlights
Space Machine offers a standard product line of pressure adapters covering waveguide sizes WR28 thru WR430.
VSWR is less than 1.10:1 over the full waveguide band. 15 psi capacity gauge is standard. If other than 15 psi capacity is required, please specify when ordering.
Different types of pressure fittings available in standard SME pressure units, such as Schrader Valve, Flared Compression Fitting, Pipe Threads, or Barbed Fitting.
Additional sizes and configurations are available upon request.
Ordering Information
Models
Ordering Information
Rectangular Waveguide Pressure Adapter

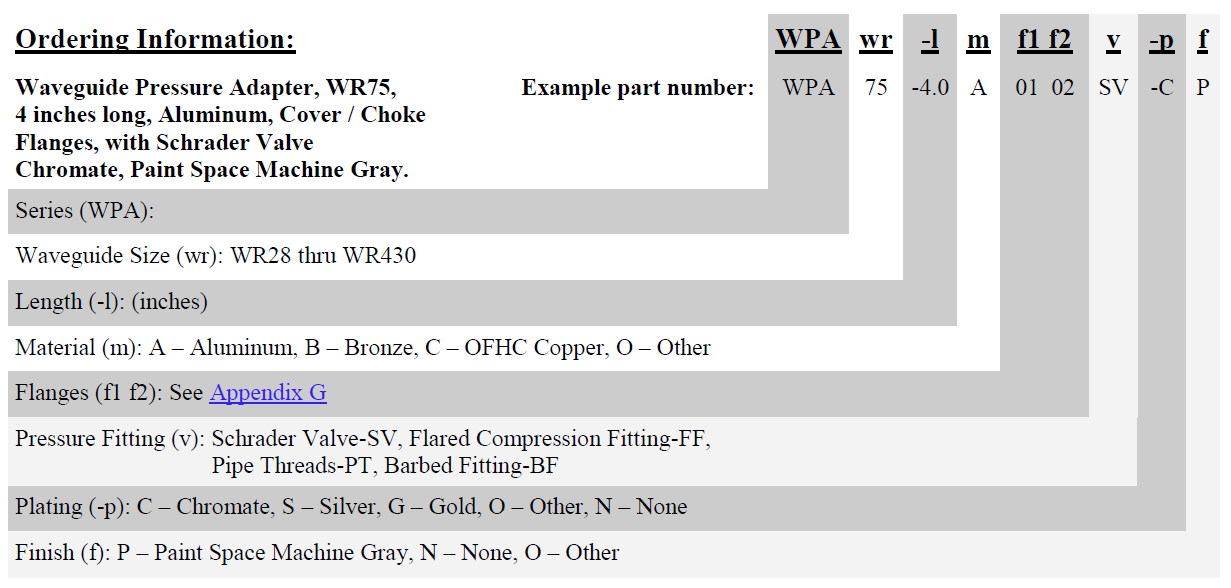

Example part number:
Waveguide Pressure Adapter, WR75,
4 inches long, Aluminum, Cover / Choke
Flanges, with Schrader Valve
Chromate, Paint Space Machine Gray.
GET A QUOTEWaveguide Pressure Adapter, WR75,
4 inches long, Aluminum, Cover / Choke
Flanges, with Schrader Valve
Chromate, Paint Space Machine Gray.
| Series | WPA28-, WPA34-, WPA42-, WPA51-, WPA62-, WPA75-, WPA90-, WPA112-, WPA137-, WPA159-, WPA187-, WPA229-, WPA284-, WPA340-, WPA430- |
|---|---|
| Waveguide Size (wr) | WR28 thru WR430 |
| Length (-l) | (inches) |
| Material (m) | A – Aluminum, B – Bronze, C – OFHC Copper, O – Other |
| Flange (f1 f2) | See Appendix G |
| Pressure Fitting (v) | Schrader Valve-SV, Flared Compression Fitting-FF, Pipe Threads-PT, Barbed Fitting-BF |
| Plating (-p) | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
| Finish (f) | P – Paint Space Machine Gray, N – None, O – Other |
