Rectangular Waveguide To Coax Adapters

Space Machine offers a standard product line of waveguide to coax adapters covering waveguide sizes WR28 thru WR975.
VSWR is 1.20:1 typical. Additional sizes and configurations available upon request. See next page for common connectors used and specs. Please contact us for addition information in regards to coax power handling.
wr* – add HW, RH or TW to the part number if ordering heavy wall waveguide tubing (HW), reduced height waveguide tubing (RH) or thin wall waveguide tubing (TW). See appendix A for waveguide physical dimensions.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of waveguide to coax adapters covering waveguide sizes WR28 thru WR975.
VSWR is 1.20:1 typical. Additional sizes and configurations available upon request. See next page for common connectors used and specs. Please contact us for addition information in regards to coax power handling.
wr* – add HW, RH or TW to the part number if ordering heavy wall waveguide tubing (HW), reduced height waveguide tubing (RH) or thin wall waveguide tubing (TW). See appendix A for waveguide physical dimensions.

Ordering Information

Rectangular Waveguide To Coax Adapters



Models

    • Series: WCA34-

    • WR: 34

    • Frequency (GHz): 22.00 - 33.00

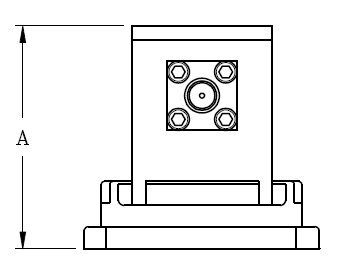

    • A: 1.00

    • B: 0.36

    • Series: WCA42-

    • WR: 42

    • Frequency (GHz): 18.00 - 26.50

    • A: 1.00

    • B: 0.39

    • Series: WCA102-

    • WR: 102

    • Frequency (GHz): 7.00 - 11.00

    • A: 2.00

    • B: 0.60

    • Series: WCA112-

    • WR: 112

    • Frequency (GHz): 7.05 - 10.00

    • A: 2.00

    • B: 0.63

    • Series: WCA137-

    • WR: 137

    • Frequency (GHz): 5.85 - 8.20

    • A: 2.20

    • B: 0.66

    • Series: WCA159-

    • WR: 159

    • Frequency (GHz): 4.90 - 7.05

    • A: 2.25

    • B: 0.76

    • Series: WCA187-

    • WR: 187

    • Frequency (GHz): 3.95 - 5.85

    • A: 2.34

    • B: 0.88

    • Series: WCA229-

    • WR: 229

    • Frequency (GHz): 3.30 - 4.90

    • A: 2.53

    • B: 1.04

    • Series: WCA284-

    • WR: 284

    • Frequency (GHz): 2.60 - 3.95

    • A: 3.36

    • B: 1.23

    • Series: WCA340-

    • WR: 340

    • Frequency (GHz): 2.20 - 3.30

    • A: 3.50

    • B: 1.50

    • Series: WCA430-

    • WR: 430

    • Frequency (GHz): 1.70 - 2.60

    • A: 4.00

    • B: 1.71

    • Series: WCA510-

    • WR: 510

    • Frequency (GHz): 1.45 - 2.20

    • A: 5.00

    • B: 2.01

    • Series: WCA650-

    • WR: 650

    • Frequency (GHz): 1.12 - 1.70

    • A: 6.00

    • B: 2.49

    • Series: WCA770-

    • WR: 770

    • Frequency (GHz): 0.96 - 1.45

    • A: 7.50

    • B: 2.95

    • Series: WCA975-

    • WR: 975

    • Frequency (GHz): 0.75 - 1.12

    • A: 8.25

    • B: 3.61

    • Series: WCA28-

    • WR: 28

    • Frequency (GHz): 26.50 - 40.00

    • A: 0.96

    • B: 0.34

    • Series: WCA51-

    • WR: 51

    • Frequency (GHz): 15.00 - 22.00

    • A: 1.20

    • B: 0.43

    • Series: WCA62-

    • WR: 62

    • Frequency (GHz): 12.40 - 18.00

    • A: 1.85

    • B: 0.45

    • Series: WCA75-

    • WR: 75

    • Frequency (GHz): 10.00 - 15.00

    • A: 2.00

    • B: 0.50

    • Series: WCA90-

    • WR: 90

    • Frequency (GHz): 8.20 - 12.40

    • A: 2.00

    • B: 0.54

    Ordering Information

    Rectangular Waveguide To Coax Adapters
    Example part number:
    Waveguide To Coax Adapter, WR112,
    Bronze, Cover Flange, SMA Female Connector,
    Chromated, Paint Space Machine Gray.
    GET A QUOTE
    Series

    WCA28-, WCA34-, WCA42-, WCA51-, WCA62-, WCA75-, WCA90-, WCA102-, WCA112-, WCA137-, WCA159-, WCA187-, WCA229-, WCA284-, WCA340-, WCA430-, WCA510-, WCA650-, WCA770-, WCA975-

    Waveguide Size (wr)

    WR28 thru WR975

    Material (m)

    A – Aluminum, B – Bronze, C – OFHC Copper, O – Other

    Flange (f)

    See Appendix G

    Connector (cnt)

    See Appendix E

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish (f)

    P – Paint Space Machine Gray, N – None, O – Other
