Single Channel Rectangular Waveguide Rotary Joints

Space Machine offers a standard product line of single channel waveguide rotary joints covering waveguide sizes WR28 thru WR430.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of single channel waveguide rotary joints covering waveguide sizes WR28 thru WR430. Additional sizes and configurations are available upon request. VSWR is 1.15:1 and insertion loss is 0.15 dB typical over 25% of the waveguide band. Please specify pressure, power handling, frequency and dimensional requirements
when ordering.

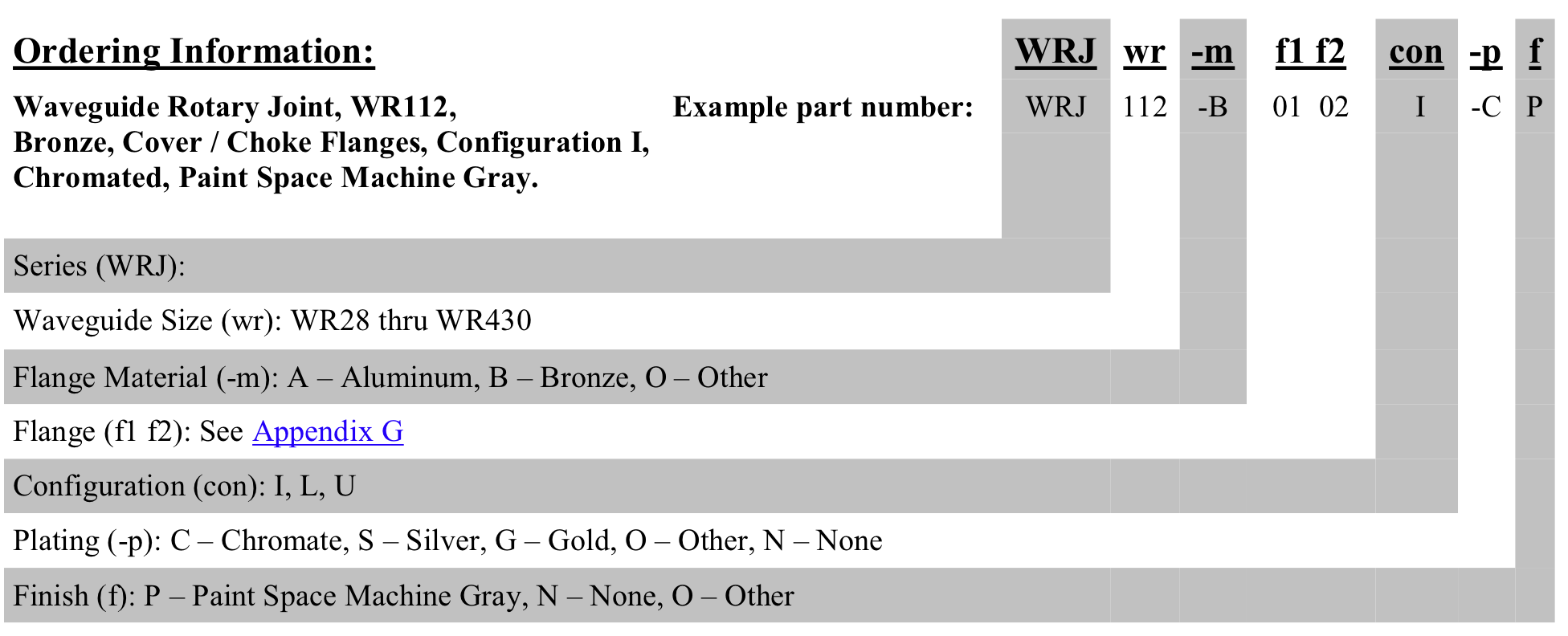

Ordering Information

Ordering Information

Single Channel Rectangular Waveguide Rotary Joints
Example part number:
Waveguide Rotary Joint, WR112, Bronze, Cover / Choke Flanges, Configuration I, Chromated, Paint Space Machine Gray.
GET A QUOTE
Series

WRJ

Waveguide Size

WR28 thru WR430

Flange Material

A – Aluminum, B – Bronze, O – Other

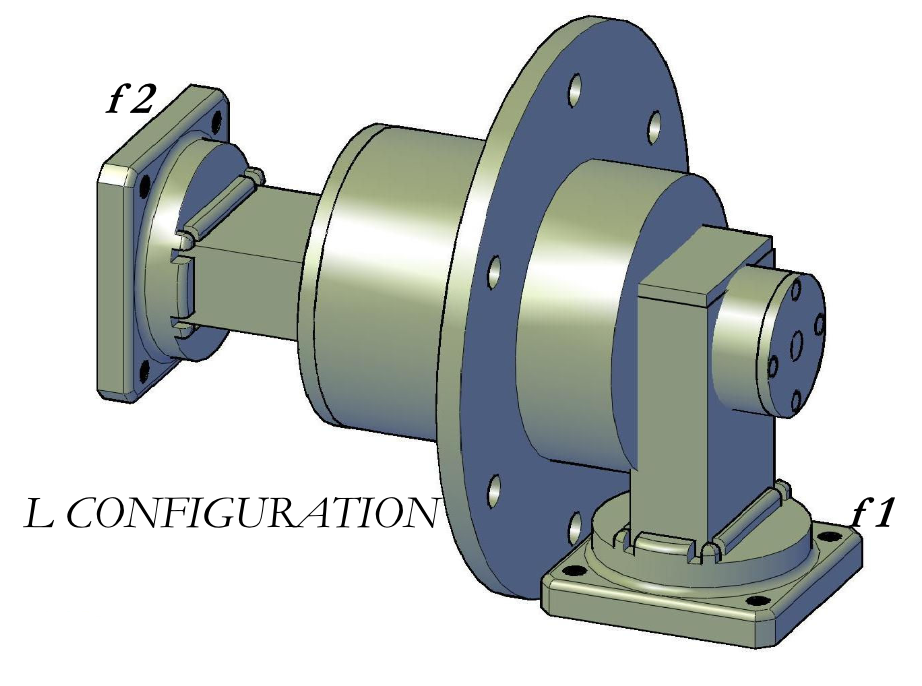

Configuration

I, L, U

Plating

C – Chromate, S – Silver, G – Gold, O – Other, N – None

Finish

P – Paint Space Machine Gray, N – None, O – Other
