Teflon/Fiberglass Double Ridge Waveguide Pressure Windows
Space Machine offers a standard product line of teflon / fiberglass double ridge pressure windows covering waveguide sizes WRD180 thru WRD200.
Models
Download Technical Specifications Highlights
Space Machine offers a standard product line of teflon / fiberglass double ridge pressure windows covering waveguide sizes WRD180 thru WRD200. VSWR is 1.15:1 maximum, while insertion loss is 0.1dB maximum over the full waveguide bandwidth. Pressure handling capability is 20 PSI minimum, however higher capacities up to 30 PSI are usually obtained.
Please specify pressure requirements when ordering. Additional sizes and configurations are available upon request.

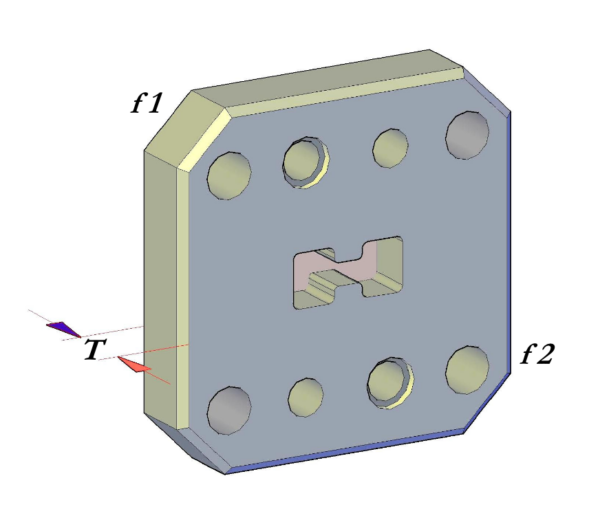

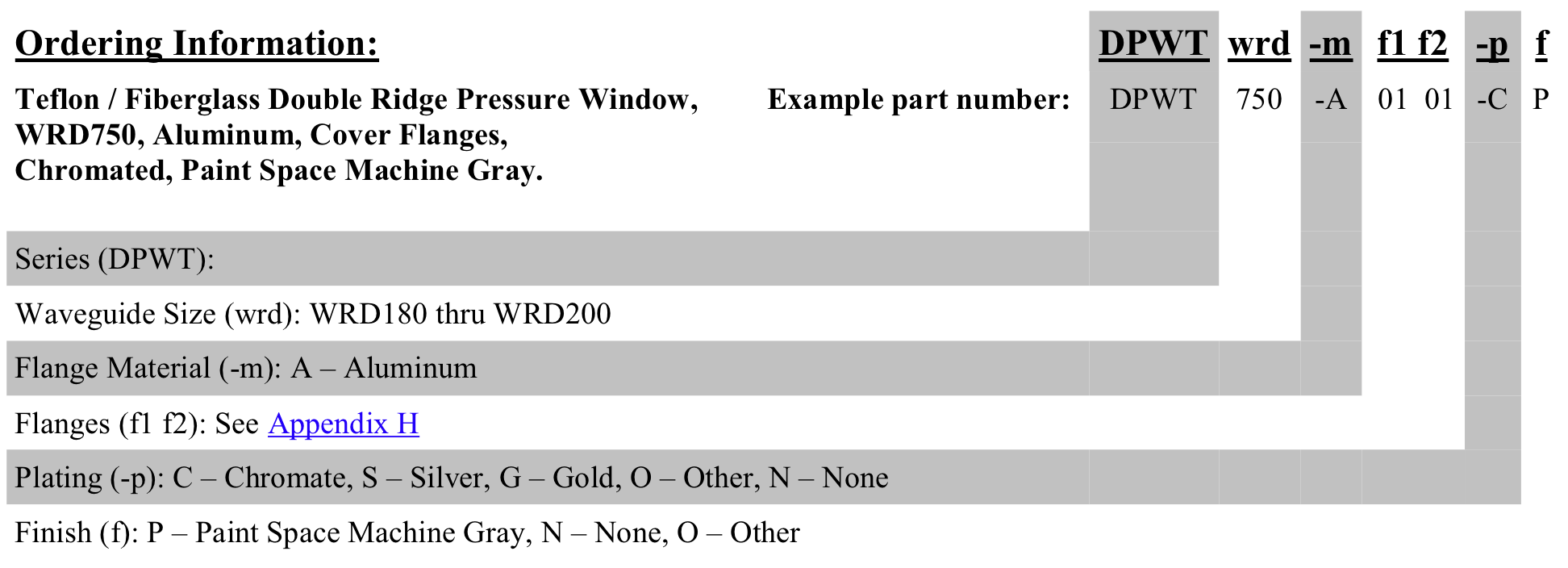

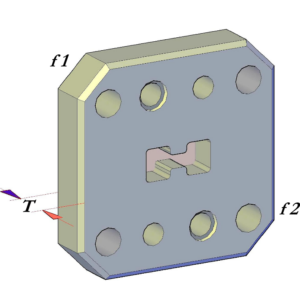

Ordering Information
Ordering Information
Teflon/Fiberglass Double Ridge Waveguide Pressure Windows
Example part number:
Teflon / Fiberglass Double Ridge Pressure Window, WRD750, Aluminum, Cover Flanges, Chromated, Paint Space Machine Gray.
GET A QUOTETeflon / Fiberglass Double Ridge Pressure Window, WRD750, Aluminum, Cover Flanges, Chromated, Paint Space Machine Gray.
| Models | DPWT110, DPWT180, DPWT200, DPWT250, DPWT350, DPWT475, DPWT500, DPWT580, DPWT650, DPWT750 |
|---|---|
| WRD | 110, 180, 200, 250, 350, 475, 500, 580, 650, 750 |
| Frequency (GHz) | 11.00 – 26.50, 18.00 – 40.00, 2.00 – 4.80, 2.60 – 7.80, 3.50 – 8.20, 4.75 – 11.00, 5.00 – 18.00, 5.80 – 16.00, 6.50 – 18.00, 7.50 – 18.00 |
| Avg. Power (W) | 100, 1000, 150, 280, 400, 50, 500, 70, 750 |
| Thickness (T“) | 0.38 |
