Type N and TNC Coaxial Rotary Joint

Space Machine custom fabricates Type-N and TNC coaxial rotary joints to meet your specific needs.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

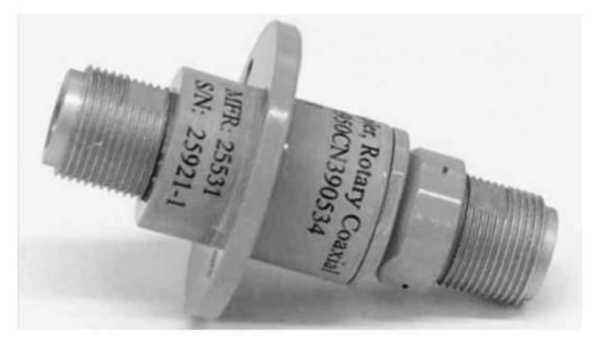

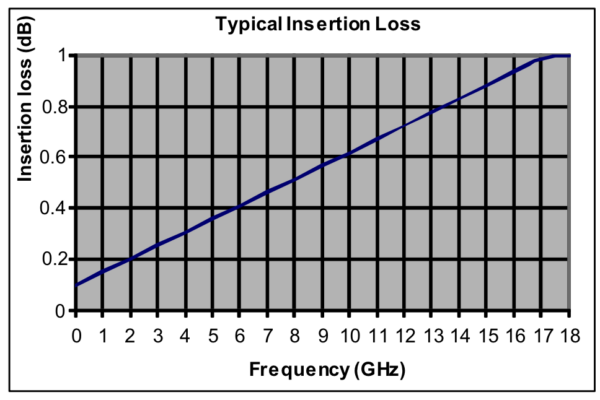

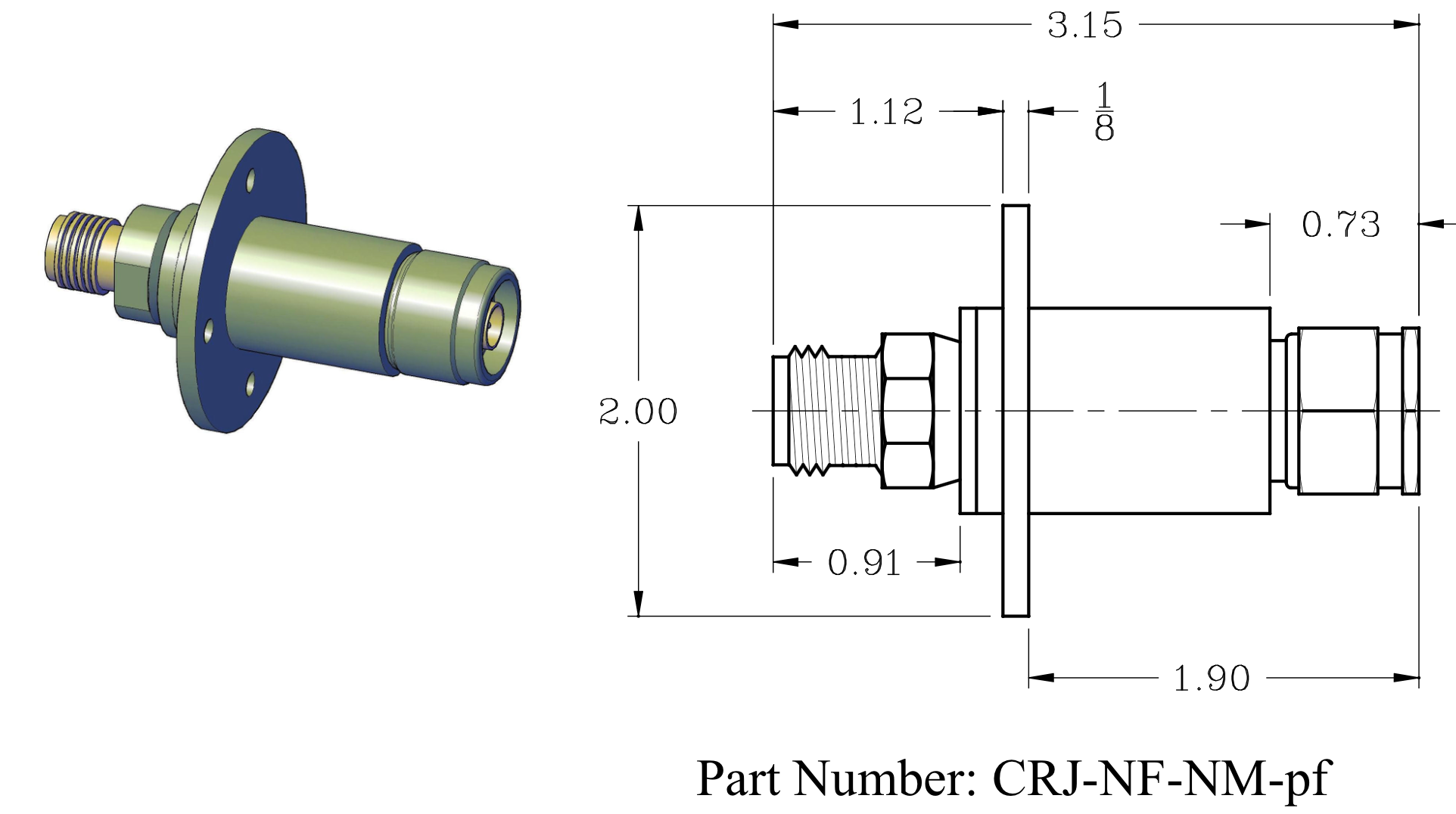

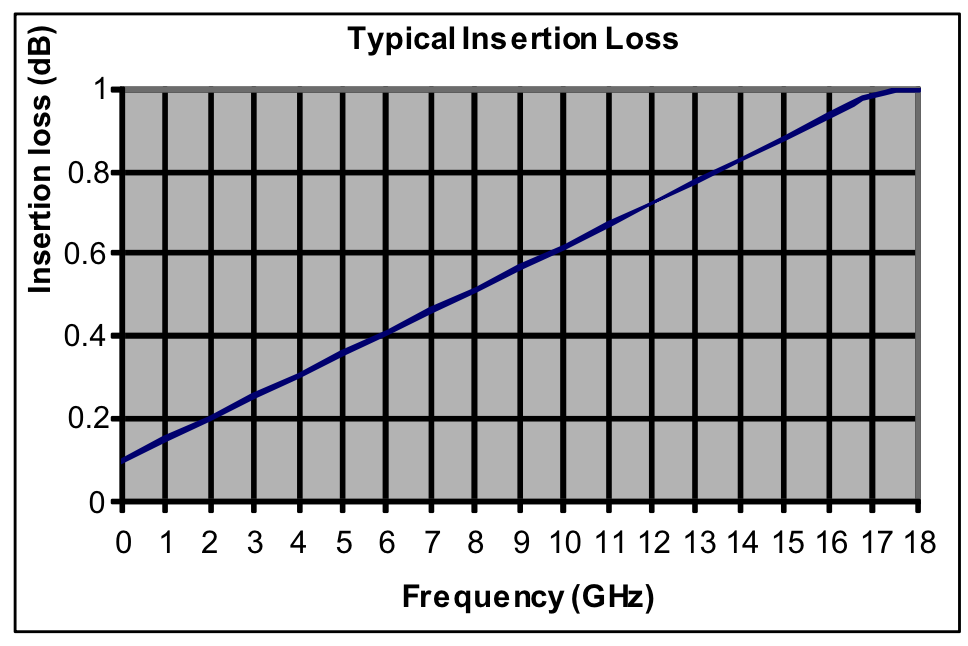

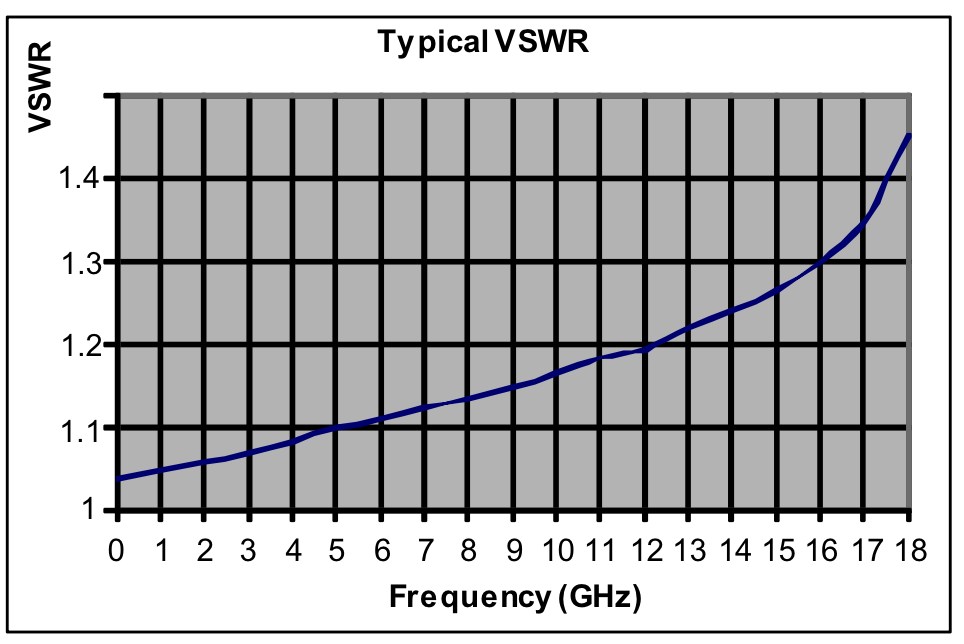

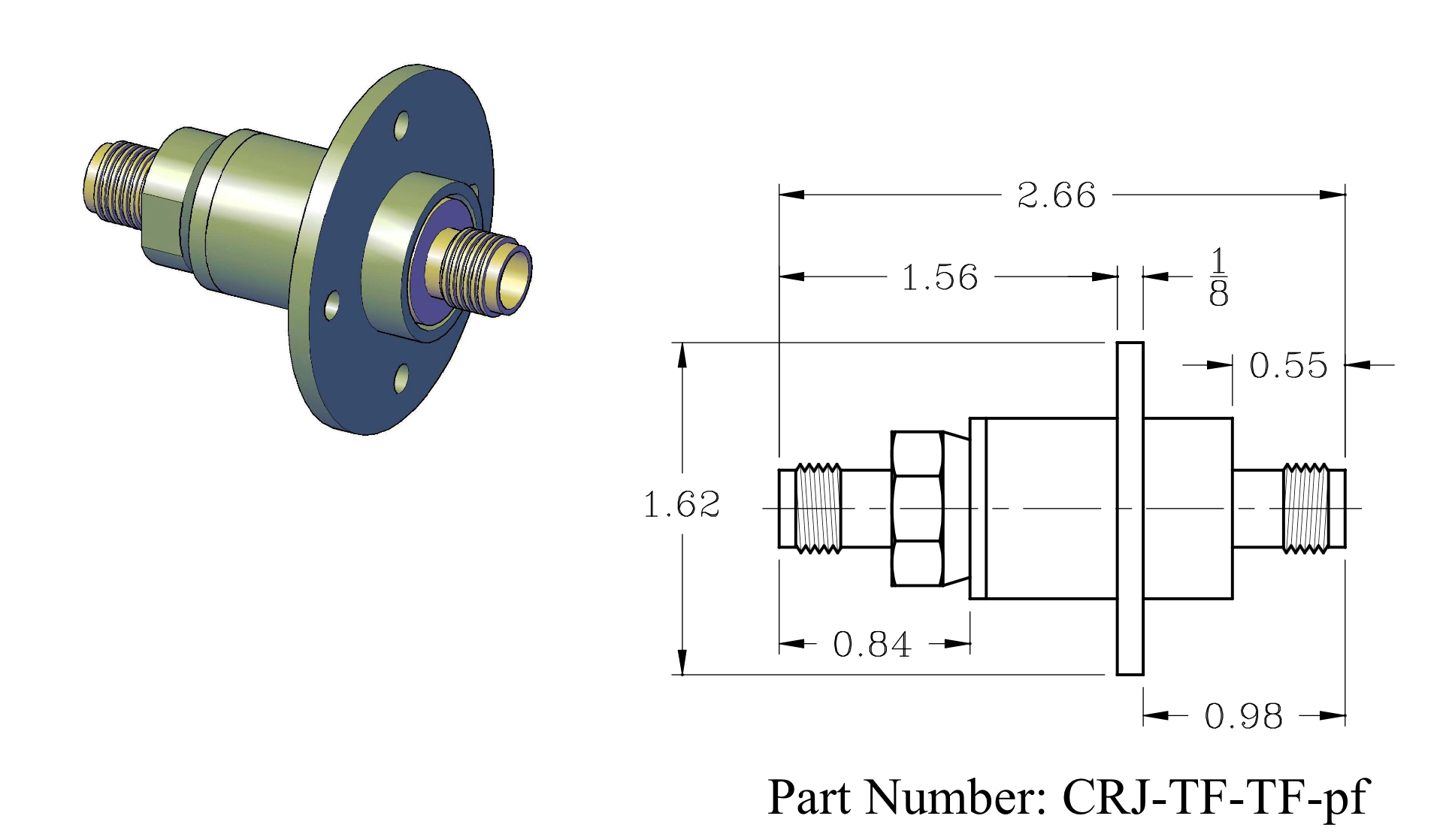

Space Machine custom fabricates Type-N and TNC coaxial rotary joints to meet your specific needs. Our rotary joints have a long life and are very durable. Please see graphs for typical insertion loss and VSWR plots. Frequency range is from DC to 18.0 GHz. Peak power is 20 kW @ 1 GHz, 500 W average for Type-N rotary joint. Peak power is 6 kW @ 1GHz, 100 W average for TNC. Starting torque is 8 oz.-in for both. See next page for standard dimensions.

Ordering Information

Ordering Information

Type N and TNC Coaxial Rotary Joint

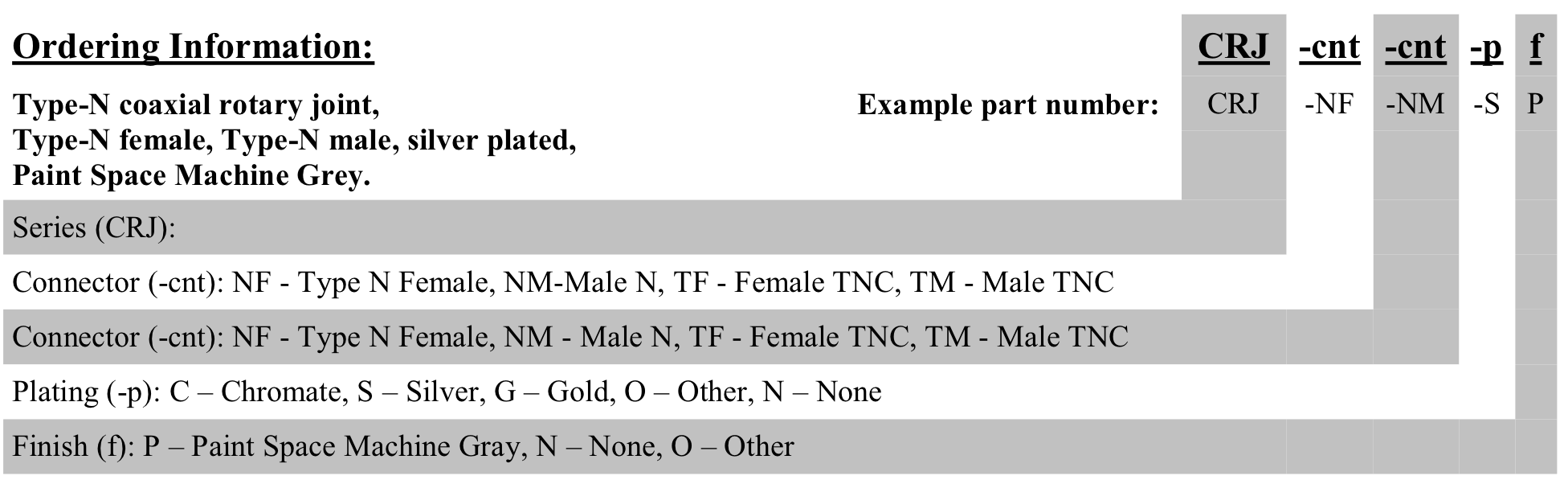

Example part number:
Type-N coaxial rotary joint, Type-N female, Type-N male, silver plated, Paint Space Machine Grey.
GET A QUOTE
Series

CRJ

Connector

NF – Type N Female, NM-Male N, TF – Female TNC, TM – Male TNC

Plating

C – Chromate, S – Silver, G – Gold, O – Other, N – None

Finish

P – Paint Space Machine Gray, N – None, O – Other
