Double Ridge Waveguide Dual Cross Guide Couplers

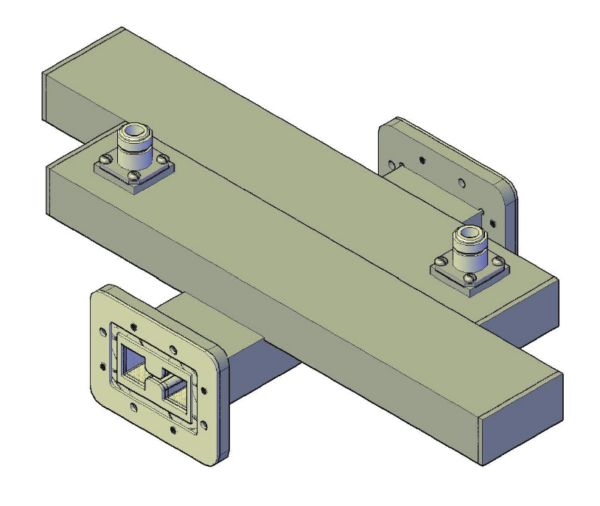

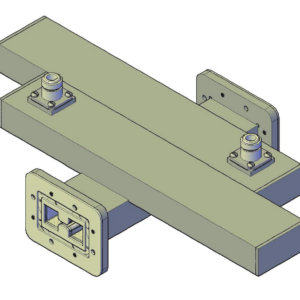

Space Machine custom fabricates a standard product line of double ridge dual cross guide couplers covering waveguide sizes WRD180 thru WRD200.
Models

Highlights
Space Machine custom fabricates a standard product line of double ridge dual cross guide couplers covering waveguide sizes WRD180 thru WRD200. Coupling variation is typically + 5dB over the full waveguide band. Directivity is 12dB minimum. Additional sizes and configurations are available upon request. See next page for standard dimensions.
Ordering Information

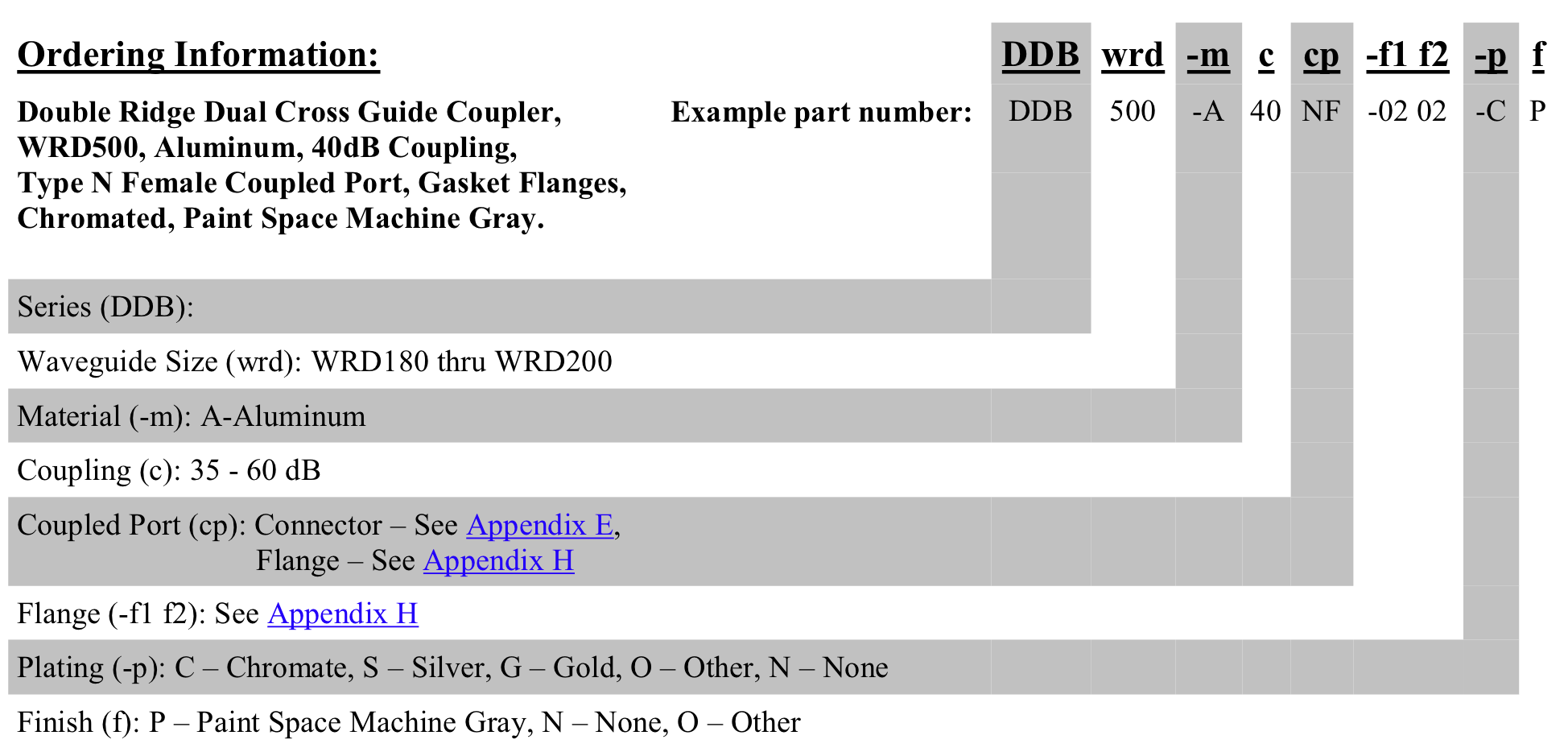

Ordering Information
Double Ridge Dual Cross Guide Coupler, WRD500, Aluminum, 40dB Coupling, Type N Female Coupled Port, Gasket Flanges, Chromated, Paint Space Machine Gray.
Models | DDB110, DDB180, DDB200, DDB250, DDB350, DDB475, DDB500, DDB580, DDB650, DDB750 |
---|---|
WRD | 110, 180, 200, 250, 350, 475, 500, 580, 650, 750 |
Frequency (GHz) | 11.00 – 26.50, 18.00 – 40.00, 2.00 – 4.80, 2.60 – 7.80, 3.50 – 8.20, 4.75 – 11.00, 5.00 – 18.00, 5.80 – 16.00, 6.50 – 18.00, 7.50 – 18.00 |
A | 3.00, 3.50, 4.00, 4.25, 5.25, 6.00, 8.00 |
B | 1.25, 2.00, 2.25, 2.50, 3.25, 3.75, 6.00 |
C | 6.50, 7.50, 9.50, 9.75, 10.50, 11.75, 14.50, 16.25, 18.00 |
