Mica Rectangular Waveguide Pressure Windows

Space Machine offers a standard product line of mica pressure windows covering waveguide sizes WR28 thru WR284.
VSWR is 1.15:1 maximum, while insertion loss is 0.15dB maximum over the full waveguide bandwidth.
Pressure handling capability is 10 PSI maximum. Additional sizes and configurations are available upon request.
This window is well suited for high power and vacuum applications.

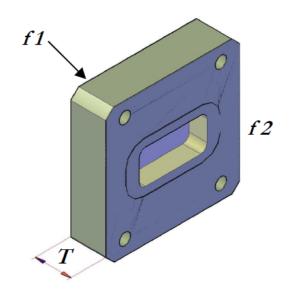

* Thickness noted when using a cover/cover flange configuration. When using a CPR or CMR flange type configuration, thickness is 0.25”. A choke flange face configuration requires a greater thickness.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of mica pressure windows covering waveguide sizes WR28 thru WR284.
VSWR is 1.15:1 maximum, while insertion loss is 0.15dB maximum over the full waveguide bandwidth.
Pressure handling capability is 10 PSI maximum. Additional sizes and configurations are available upon request.
This window is well suited for high power and vacuum applications.
* Thickness noted when using a cover/cover flange configuration. When using a CPR or CMR flange type configuration, thickness is 0.25”. A choke flange face configuration requires a greater thickness.

Ordering Information

Mica Rectangular Waveguide Pressure Windows



Models

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM28-

    • WR: 28

    • Frequency (GHz): 26.50 - 40.00

    • Avg. Power (W): 200

    • Thickness: 0.18

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM34-

    • WR: 34

    • Frequency (GHz): 22.00 - 33.00

    • Avg. Power (W): 200

    • Thickness: 0.18

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM42-

    • WR: 42

    • Frequency (GHz): 18.00 - 26.50

    • Avg. Power (W): 200

    • Thickness: 0.18

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM51-

    • WR: 51

    • Frequency (GHz): 15.00 - 22.00

    • Avg. Power (W): 250

    • Thickness: 0.18

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM62-

    • WR: 62

    • Frequency (GHz): 12.40 - 18.00

    • Avg. Power (W): 500

    • Thickness: 0.18

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM75-

    • WR: 75

    • Frequency (GHz): 10.00 - 15.00

    • Avg. Power (W): 750

    • Thickness: 0.18

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM90-

    • WR: 90

    • Frequency (GHz): 8.20 - 12.40

    • Avg. Power (W): 1000

    • Thickness: 0.18

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM102-

    • WR: 102

    • Frequency (GHz): 7.00 - 11.00

    • Avg. Power (W): 1250

    • Thickness: 0.18

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM112-

    • WR: 112

    • Frequency (GHz): 7.05 - 10.00

    • Avg. Power (W): 1500

    • Thickness: 0.25

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM137-

    • WR: 137

    • Frequency (GHz): 5.85 - 8.20

    • Avg. Power (W): 1750

    • Thickness: 0.25

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM159-

    • WR: 159

    • Frequency (GHz): 4.90 - 7.05

    • Avg. Power (W): 2000

    • Thickness: 0.25

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM187-

    • WR: 187

    • Frequency (GHz): 3.95 - 5.85

    • Avg. Power (W): 2200

    • Thickness: 0.25

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM229-

    • WR: 229

    • Frequency (GHz): 3.30 - 4.90

    • Avg. Power (W): 2500

    • Thickness: 0.25

    Mica Rectangular Waveguide Pressure Windows
    • Model: WPWM284-

    • WR: 284

    • Frequency (GHz): 2.60 - 3.95

    • Avg. Power (W): 2500

    • Thickness: 0.25

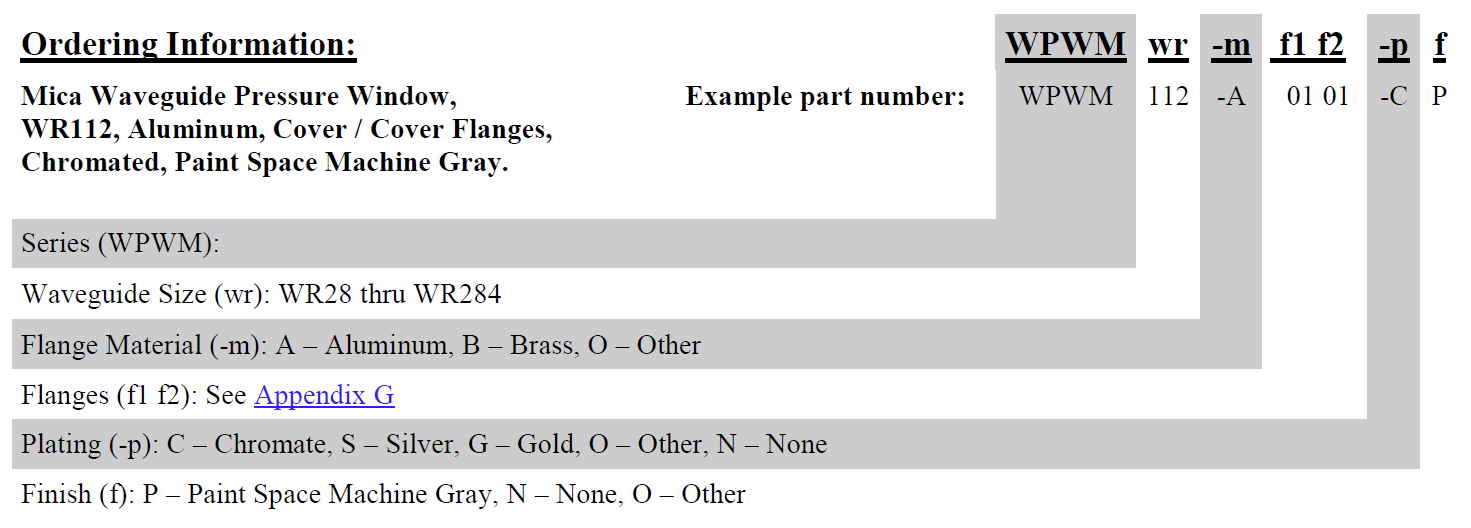

    Ordering Information

    Mica Rectangular Waveguide Pressure Windows
    Example part number:
    Mica Waveguide Pressure Window,
    WR112, Aluminum, Cover / Cover Flanges,
    Chromated, Paint Space Machine Gray.
    GET A QUOTE
    Series

    WPWM

    Model

    WPWM28-, WPWM34-, WPWM42-, WPWM51-, WPWM62-, WPWM75-, WPWM90-, WPWM102-, WPWM112-, WPWM137-, WPWM159-, WPWM187-, WPWM229-, WPWM284-

    Waveguide Size (wr)

    WR28 thru WR284

    Flange Material (-m)

    A – Aluminum, B – Brass, O – Other

    Flanges (f1 f2)

    See Appendix G

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish (f)

    P – Paint Space Machine Gray, N – None, O – Other
