Rectangular Waveguide Dual Loop Couplers
Space Machine custom fabricates a standard product line of dual loop couplers covering waveguide sizes WR62 thru WR430. These loop couplers are ideally suited for 25% bandwidths with coupling variation of ± 0.5dB. Over the full waveguide band, coupling variation is + 2.5dB. Directivity is 18dB minimum.
Main arm VSWR is 1.08:1 and secondary arm VSWR is 1.3:1.
Models

Highlights
Space Machine custom fabricates a standard product line of dual loop couplers covering waveguide sizes WR62 thru WR430. These loop couplers are ideally suited for 25% bandwidths with coupling variation of ± 0.5dB. Over the full waveguide band, coupling variation is + 2.5dB. Directivity is 18dB minimum.
Main arm VSWR is 1.08:1 and secondary arm VSWR is 1.3:1.
Ordering Information
Models
Ordering Information

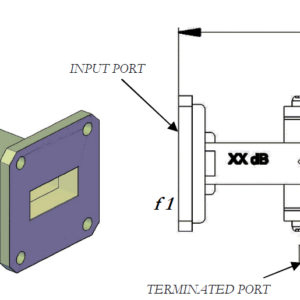

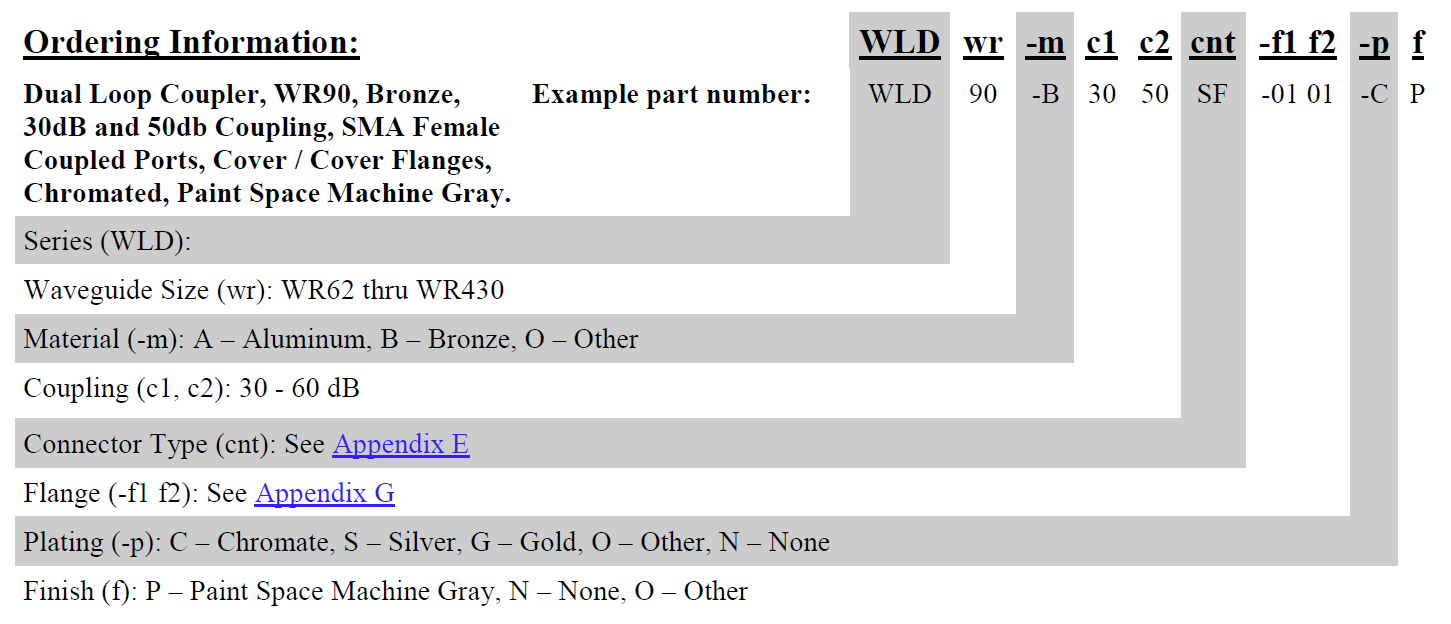

Dual Loop Coupler, WR90, Bronze,
30dB and 50db Coupling, SMA Female
Coupled Ports, Cover / Cover Flanges,
Chromated, Paint Space Machine Gray.
Series | WLD |
---|---|
Model | WLD62-, WLD75-, WLD90-, WLD102-, WLD112-, WLD137-, WLD159-, WLD187-, WLD229-, WLD284-, WLD340-, WLD430- |
Waveguide Size (wr) | WR62 thru WR430 |
Material (-m) | A – Aluminum, B – Bronze, O – Other |
Coupling (c) | 30 – 60 dB |
Connector Type (cnt) | See Appendix E |
Flange (-f1 f2) | See Appendix G |
Plating (-p) | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
Finish (f) | P – Paint Space Machine Gray, N – None, O – Other |
