Rectangular Waveguide Dual Topwall Couplers

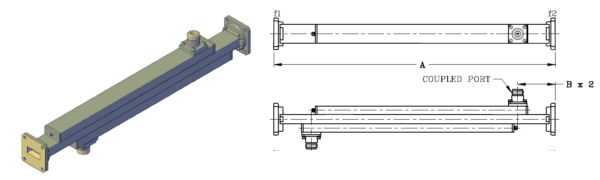

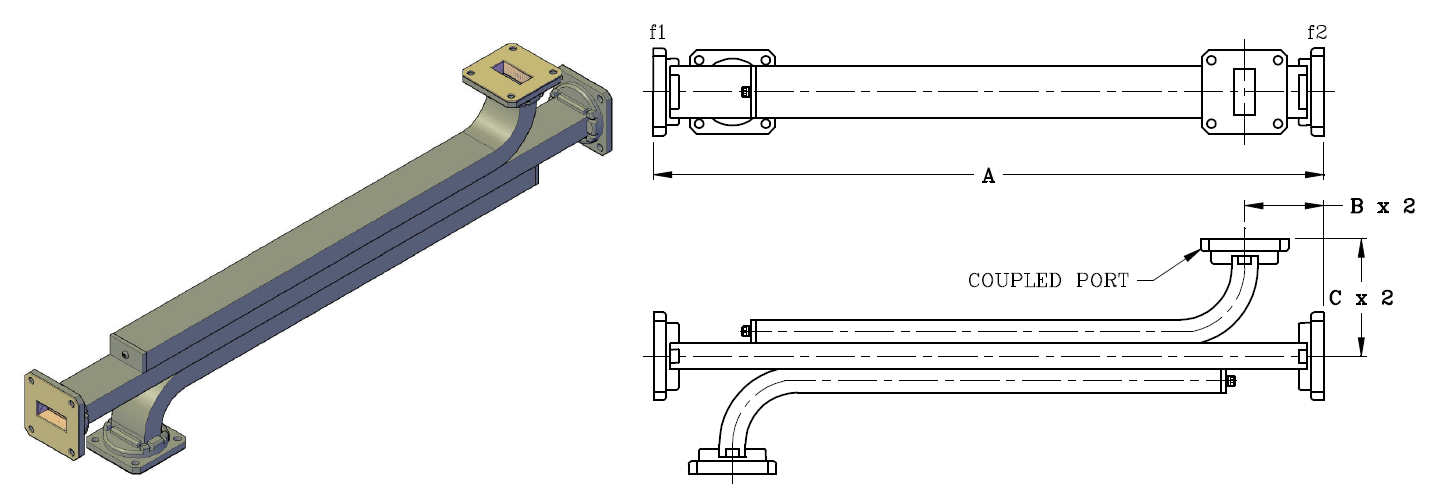

Space Machine custom fabricates a standard product line of dual topwall couplers covering waveguide sizes WR28 thru WR284. Coupling variation is typically ± 0.5dB over the full waveguide band. Directivity is 35dB minimum.
Additional sizes and configurations are available upon request. See next page for standard dimensions.
Models

Highlights
Space Machine custom fabricates a standard product line of dual topwall couplers covering waveguide sizes WR28 thru WR284. Coupling variation is typically ± 0.5dB over the full waveguide band. Directivity is 35dB minimum.
Additional sizes and configurations are available upon request. See next page for standard dimensions.
Ordering Information
Models
Ordering Information

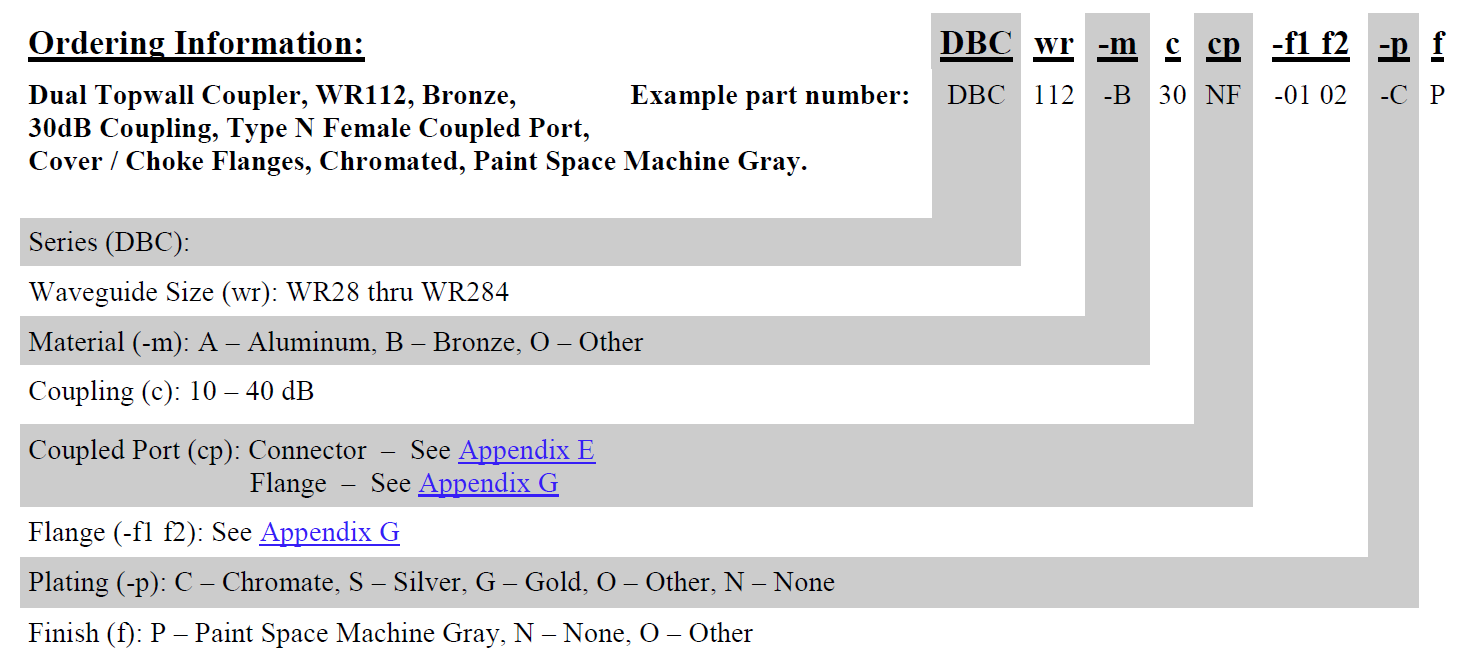

Dual Topwall Coupler, WR112, Bronze,
30dB Coupling, Type N Female Coupled Port,
Cover / Choke Flanges, Chromated, Paint Space Machine Gray.
Series | DBC |
---|---|
Model | DBC28-, DBC34-, DBC42-, DBC51-, DBC62-, DBC75-, DBC90-, DBC102-, DBC112-, DBC137-, DBC159-, DBC187-, DBC229-, DBC284- |
Waveguide Size (wr) | WR28 thru WR284 |
Material (-m) | A – Aluminum, B – Bronze, O – Other |
Coupling (c) | 10 – 40 dB |
Coupled Port (cp) | Connector – See Appendix E, Flange – See Appendix G |
Flange (-f1 f2) | See Appendix G |
Plating (-p) | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
Finish (f) | P – Paint Space Machine Gray, N – None, O – Other |
